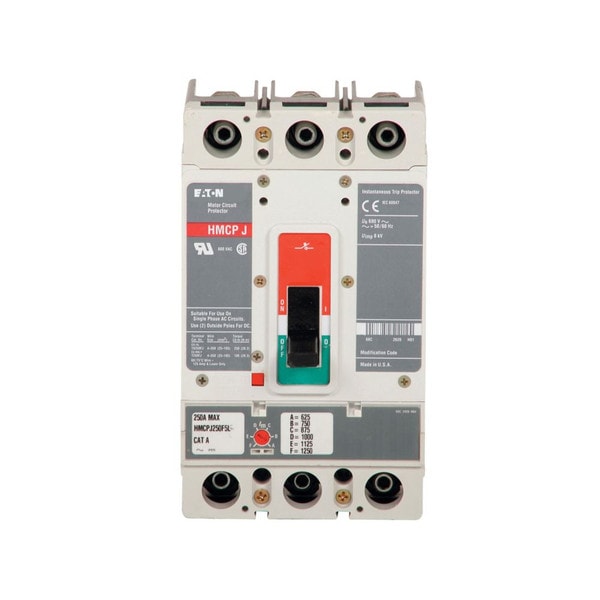

HMCPJ250W5L - Eaton Molded Case Circuit Breaker Accessory Motor Protection

The Eaton Molded Case Circuit Breaker Accessory Motor Protection is designed to provide adjustable motor protection in industrial settings. This 250A, three-pole unit features a wide adjustable range of 1250-2500 A, offering reliable protection against overloads and short circuits. Compatible with Frame J-K, it supports system voltages of up to 600V AC and 250V DC. As part of Eaton's Series G, it integrates seamlessly with other components for easy deployment and operation.

Key Features:

• Adjustable protection with a range of 1250-2500 A
• Rated at 250A with a three-pole configuration
• Supports up to 600V AC and 250V DC system voltages
• Built for use with Frame J-K and Eaton Series G systems
• Suitable for both line and load connections

This motor circuit protector is an ideal solution for safeguarding motors in high-demand electrical systems, ensuring long-term reliability and performance.

Documents:

Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers

Brochures
StrandAble terminals product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Flex shaft handle installation tutorial
