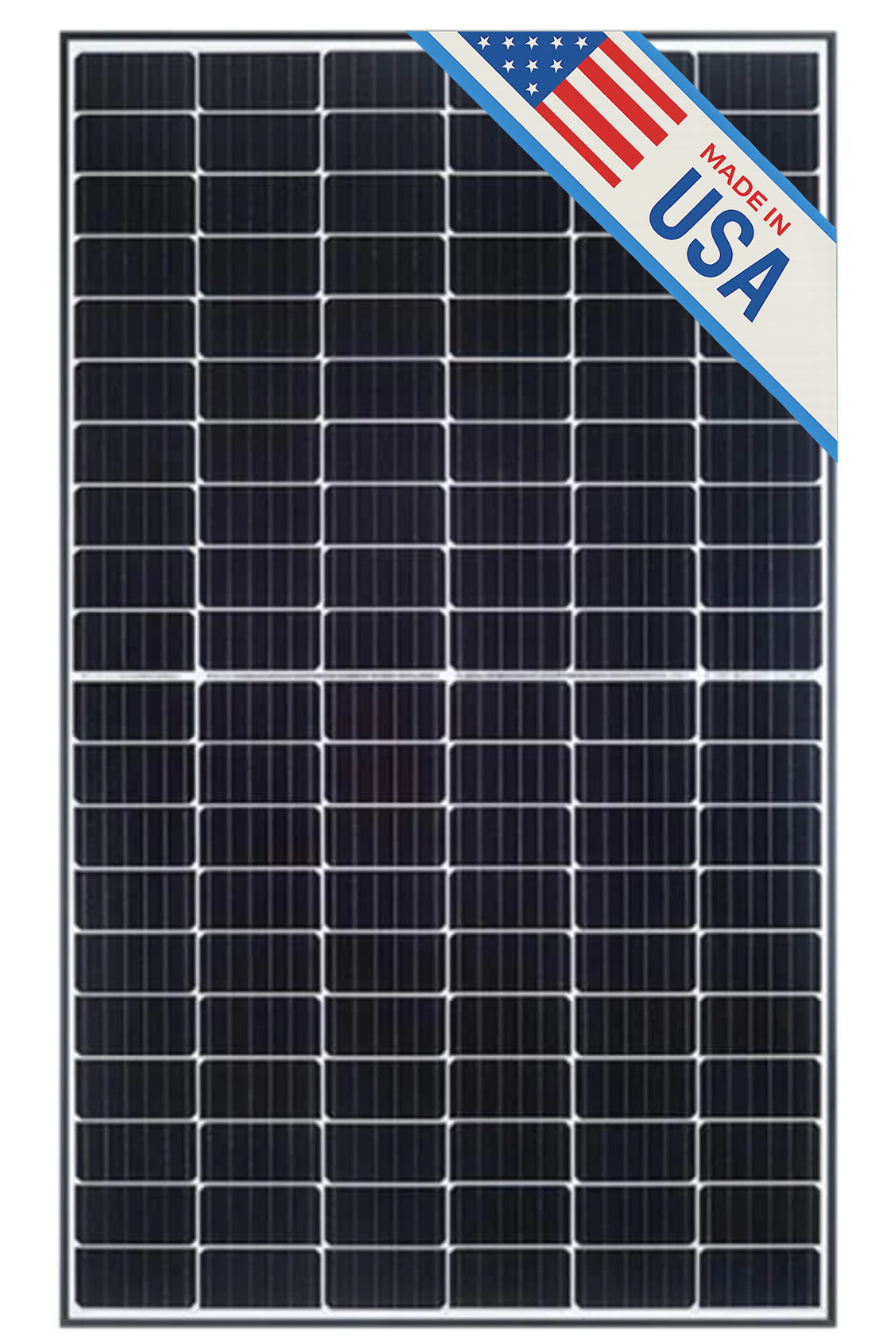

Hanwha Q Cells Q.PEAK DUO-G5-325 325w Mono Solar Panel

The new Q.PEAK DUO-G5 solar module from Q CELLS impresses thanks to innovative Q.ANTUM DUO Technology, which enables particularly high performance on a small surface. Q.ANTUM's world-record-holding cell concept has now been combined with state-of-the-art circuitry half cells and a six-busbar design, thus achieving outstanding performance under real conditions - both with low-intensity solar radiation as well as on hot, clear summer days. The new Q.PEAK DUO-G5 is a monocrystalline solar module with power classes up to 330 Wp and an efficiency of 19.9 %. Q.PEAK DUO-G5 solar modules offer higher yields over smaller surface areas. This is made possible by the new generation of Q.ANTUM's world-record-holding cell concept which has now been combined with state-of-the-art circuitry half cells and a six-busbar design. The front surface of the Q.PEAK DUO BLK-G5 is completely black and enhances the visual appearance of even the most exclusive residential system. The Q CELLS Anti LID Technology eliminates light induced degradation (LID), which can greatly reduce system performance, almost completely. Other conventional monocrystalline solar cells will lose much of their initial performance, once exposed to sunlight. With Q.PEAK DUO-G5 this is not the case, thanks to Anti LID Technology.

Features

• Q.Antum Technology: Low Levelized Cost of Electricity - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.9 %
• Innovative All-Weather Technology - Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Enduring High-Performance - Long-term yield security with Anti LID Technology, Anti PID Technology1, Hot-Spot Protect and Traceable Quality Tra.Q™
• Extreme Weather Rating - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa) regarding IEC
• A Reliable Investment - Inclusive 12-year product warranty and 25-year linear performance warranty
• State of the Art Module Technology - Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology


Specifications

• Series/Model: Q.Peak DUO
• Length: 66.3 in
• Width: 39.4 in
• Height: 1.26 in
• Cells Technology: Monocrystalline Q.Antum Half
• Number of Half Cells: 120 (6 x 20)
• Maximum Power (Pmax): 325 W STC / 242.8 W NOCT / 292.2 W PTC
• Maximum Power Voltage (Vmp): 33.65 V STC / 31.94 V NOCT
• Maximum Power Current (Imp): 9.66 A STC / 7.6 A NOCT
• Open-Circuit Voltage (VOC): 40.4 V STC / 38.02 V NOCT
• Short-Circuit Current (Isc): 10.14 A STC / 8.17 A NOCT
• Maximum System Voltage: 1000 (IEC) / 1000 (UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: ≥19.3%
• Frame Material: Anodized Aluminum Alloy
• Frame Color: Black
• Backsheet Color: White
• Irradiance: 1000 W/m² STC / 800 W/m² NOCT
• Output Cables: 4 mm² Solar Cable, (+) ≥43.3 in (1100 mm), (-) ≥43.3 in (1100 mm)
• Connector Type: Multi-Contact MC4, IP68
• Fire Type: Class C (IEC) / Type 2 (UL)
• Maximum Design Load (Push/Pull): 3600 / 2667 Pa
• Maximum Test Load (Push/Pull): 5400 / 4000 Pa
• Operating Temperature: -40 to 185 °F
• Cell Temperature: 25 °C ±2% STC
• Temperature Coefficients of Pmax: -0.37% / K
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.28% / K
• Temperature Coefficients of Isc: 0.04% / K
• Nominal Operating Cell Temperature: 109 °F ±5.4
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: 2.76-3.35 in x 1.97-2.76 in x 0.51-0.83 in, Decentralized, IP67 Rated
• Power Output Tolerance: +5 W / −0 W
• Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
• Back Cover: Composite Film
• Standards: UL 1703, CE-Compliant, IEC 61215:2016, IEC 61730:2016, Class A, DVE, CE, CSA, cUS
• Warranty: 12 Years Product, 25 Years Linear Performance
• Weight: 41.2 lb
• Application: Rooftop Arrays on Industrial/Residential Buildings
