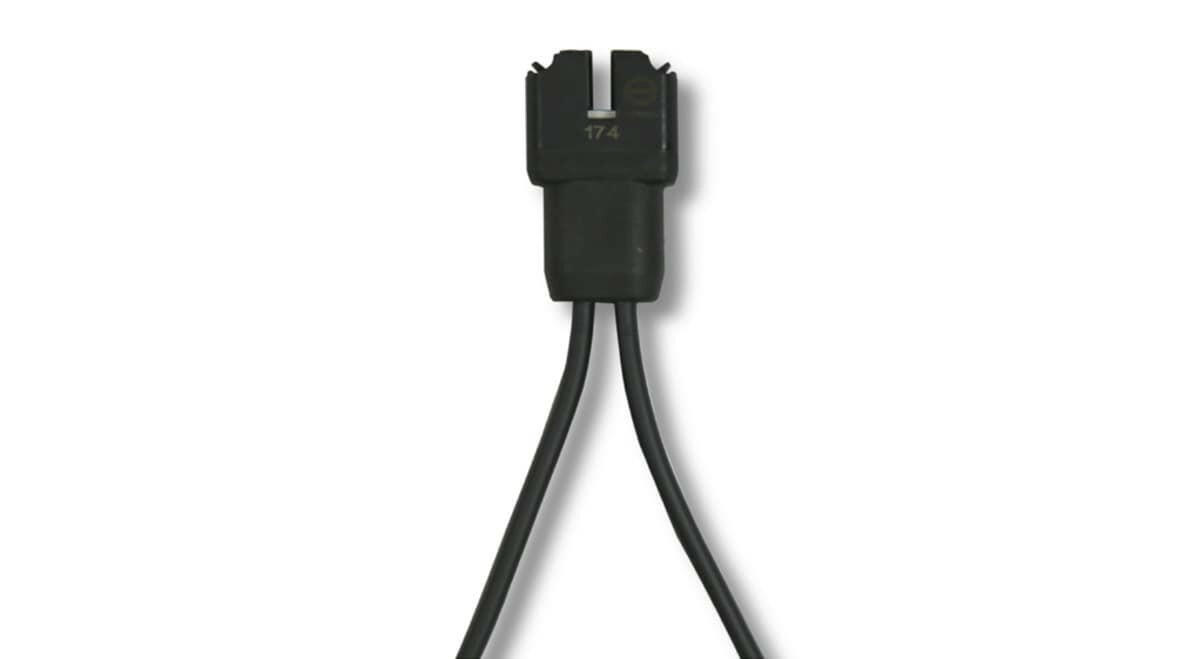

Enphase Q Cable for 60 Cell (About 1.7 Meters) (SKU Part Number EN-Q-12-17-240)

The Enphase Q Aggregator and Enphase Q Cable are part of the sixth generation Enphase IQ System. These accessories provide simplicity, reliability, and faster installation times. The Enphase Q Cable offers a new two-wire cable that is 50% lighter than the previous generations of Enphase Cables, and has only two wires, with no neutral or ground required. These drop cables come with plug and play connectors that speed installation times and simplify wire management. New link connectors eliminate cable waste. The Q cable is specific to portrait 60-cell or 72-cell (Q-12-10-240), landscape 60- cell (Q-12-17-240) or landscape 72-cell (Q-12-20-200) modules. These cables are sold in cut-to order lengths, as well as in full box quantities.

Features

• Two-wire, double-insulated Enphase Q Cable is 50% lighter than the previous generation Enphase cable

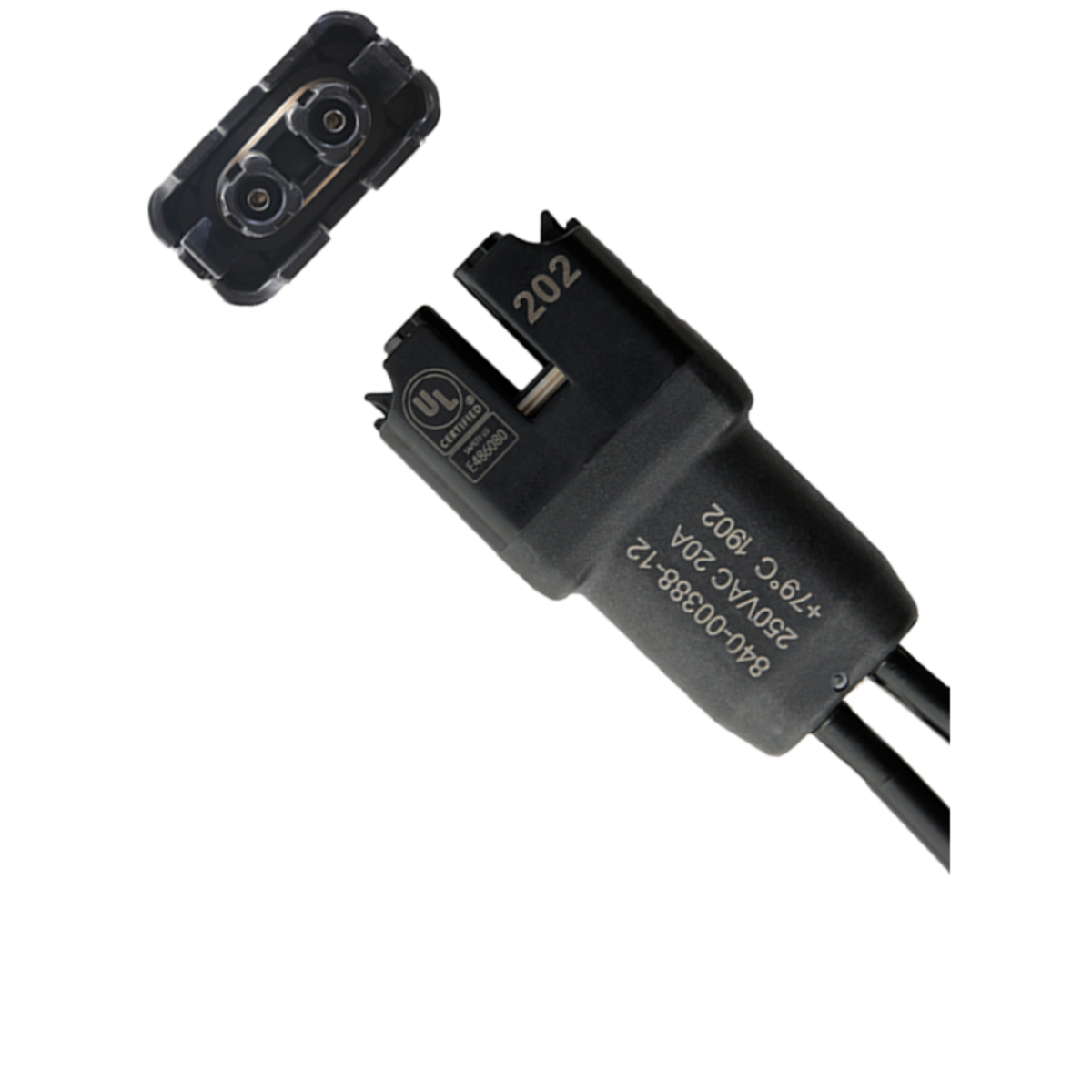

• New cable numbering and plug and play connectors speed up installation and simplify wire management
• Link connectors eliminate cable waste
• The AC and DC bulkhead connectors have been evaluated and approved by UL for use as the load-break disconnect required by NEC 690


Specifications

• Wire Size: 12 AWG
• Wire Type: THHN/THWN-2 Dry/Wet
• Suitable For Use With: IQ & IQ+ Microinverters, 60-Cell Modules
• Voltage Rating: 277 VAC
• Operating Temperature: 90°C
• Connector Spacing: 2 m
• PV Module Orientation: Landscape (60-cell)
• Connector Count Per Box: 240
• Flame Test Rating: FT4
• Standards: UL 3003, UL 9703, RoHS, OIL RES I, CE, UV Resistant, Combined UL for Canada & United States
• Weight: 0.8 lb


Documents

•  Brochure
