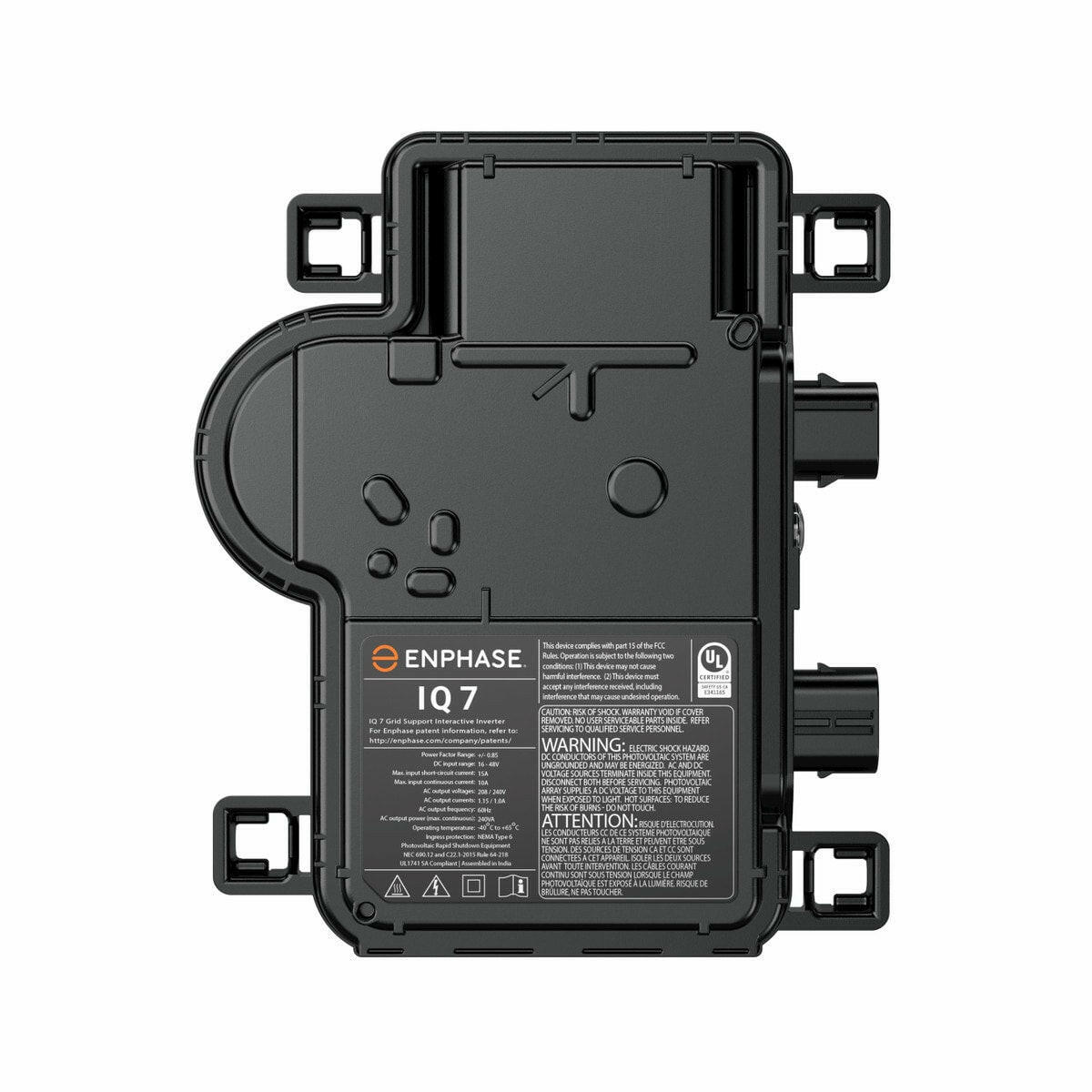

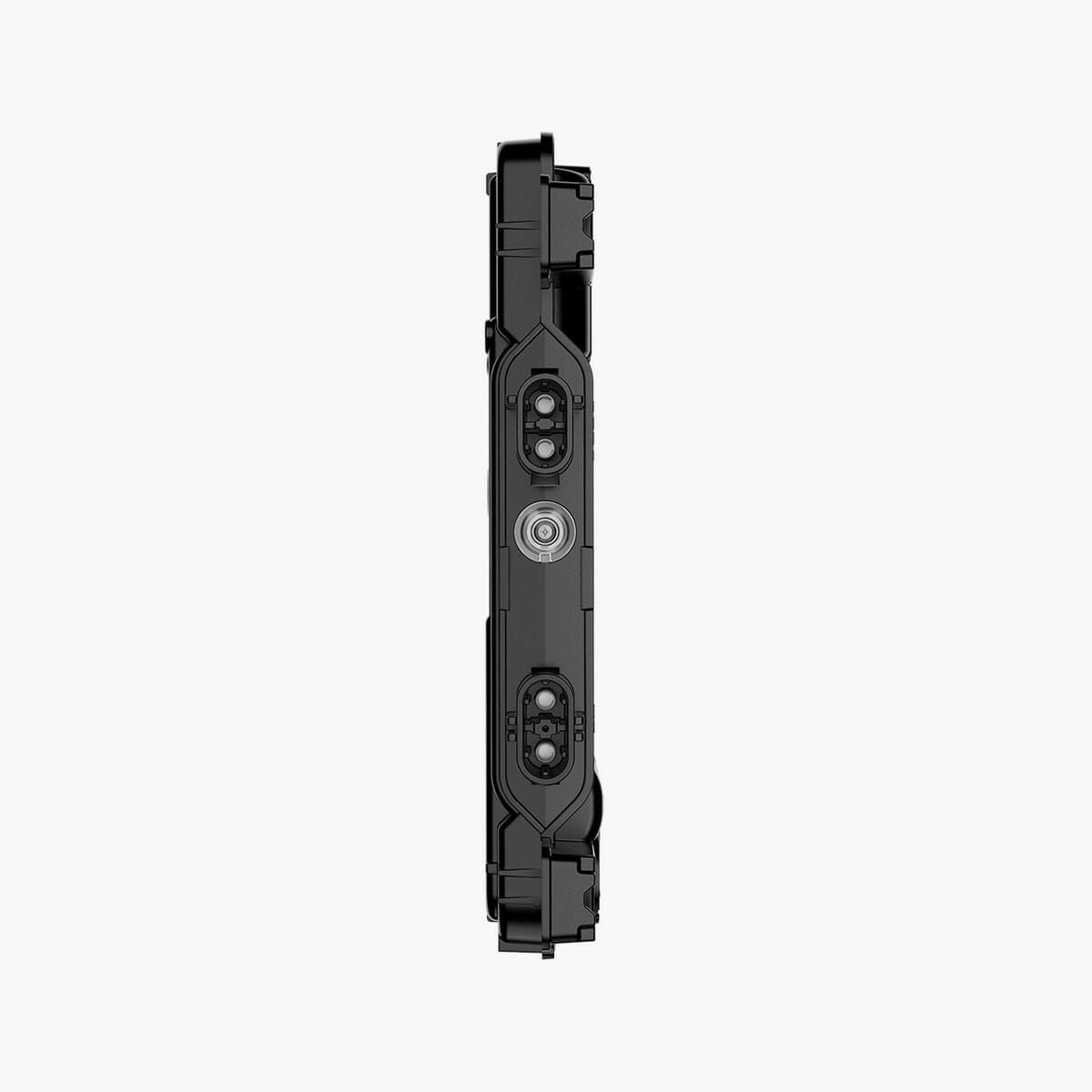

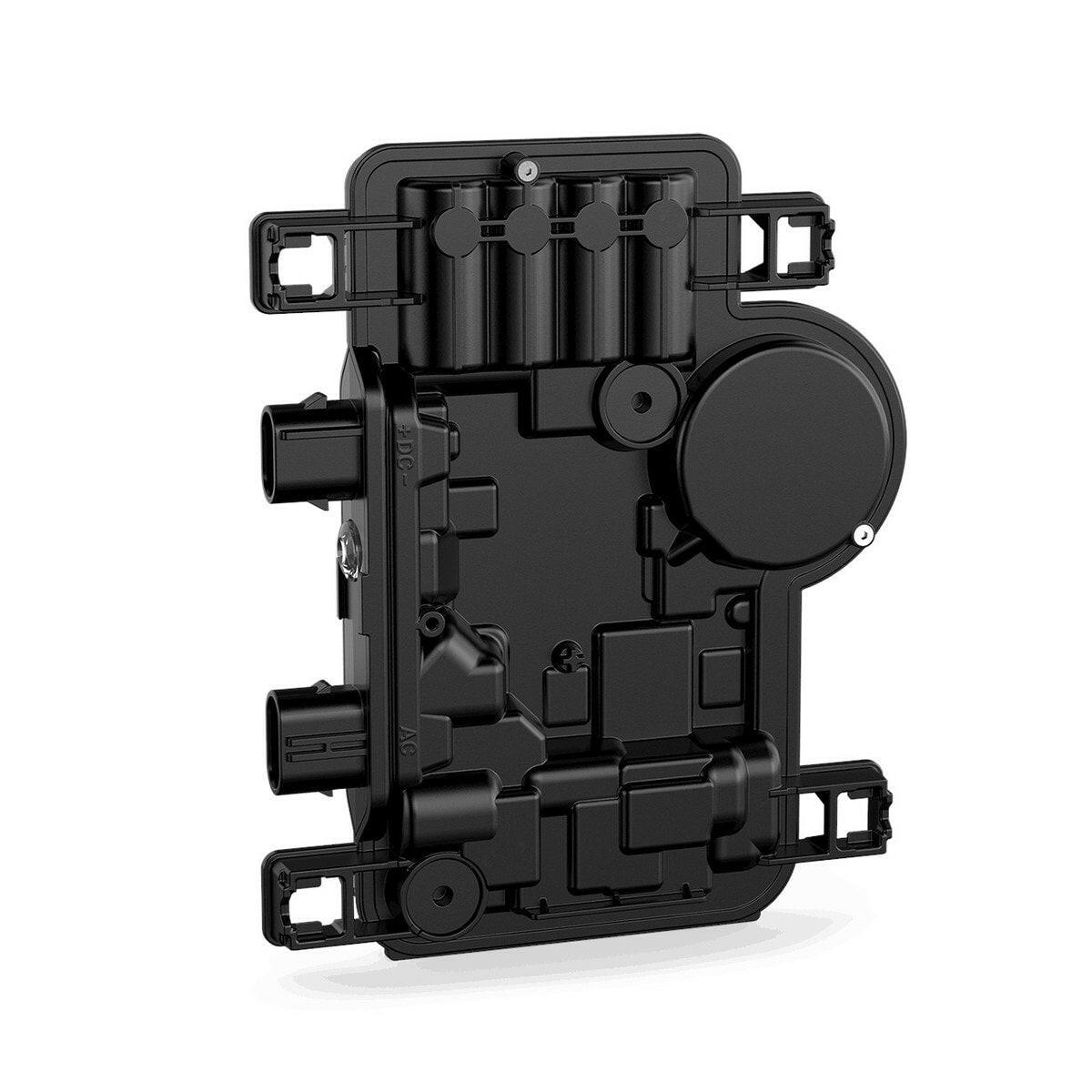

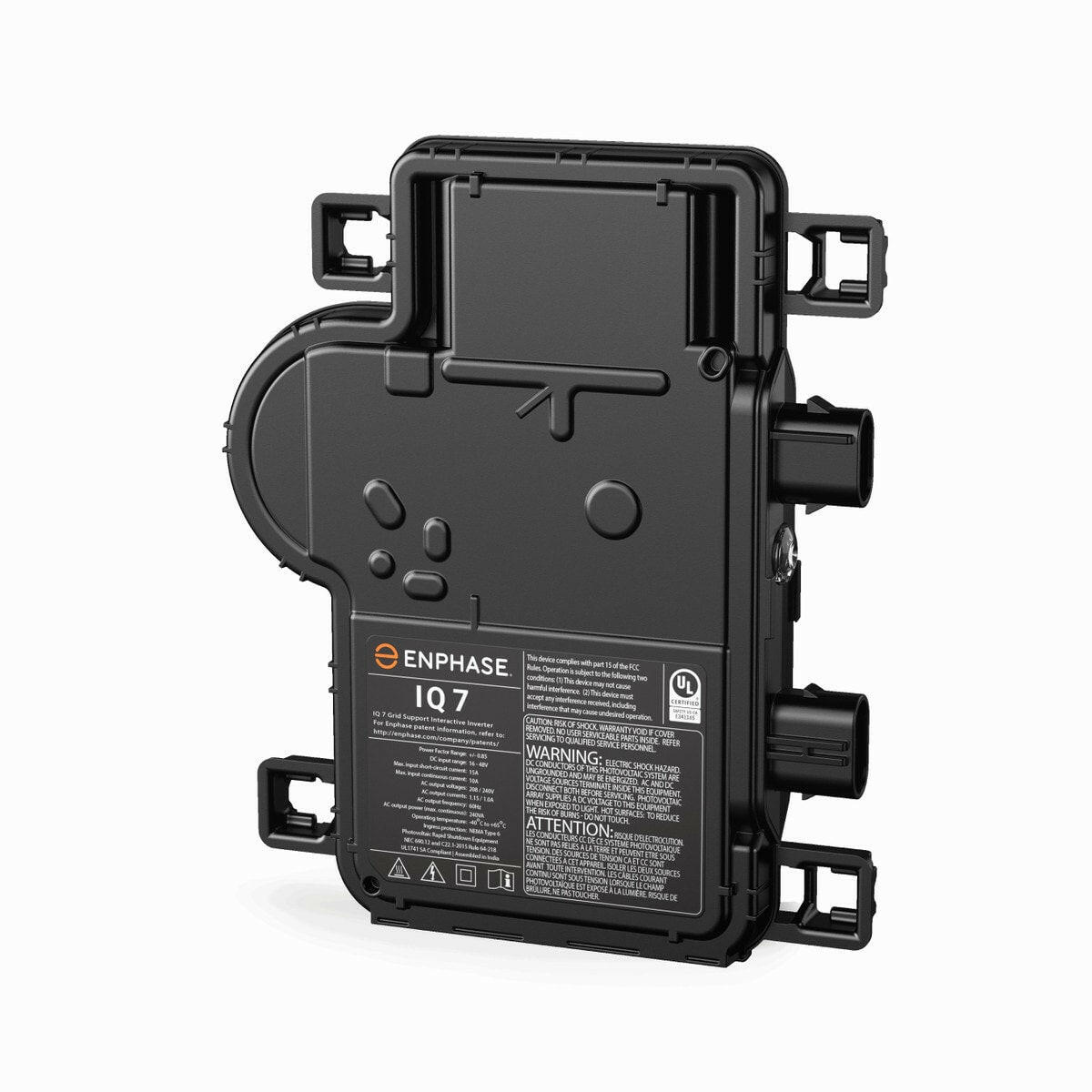

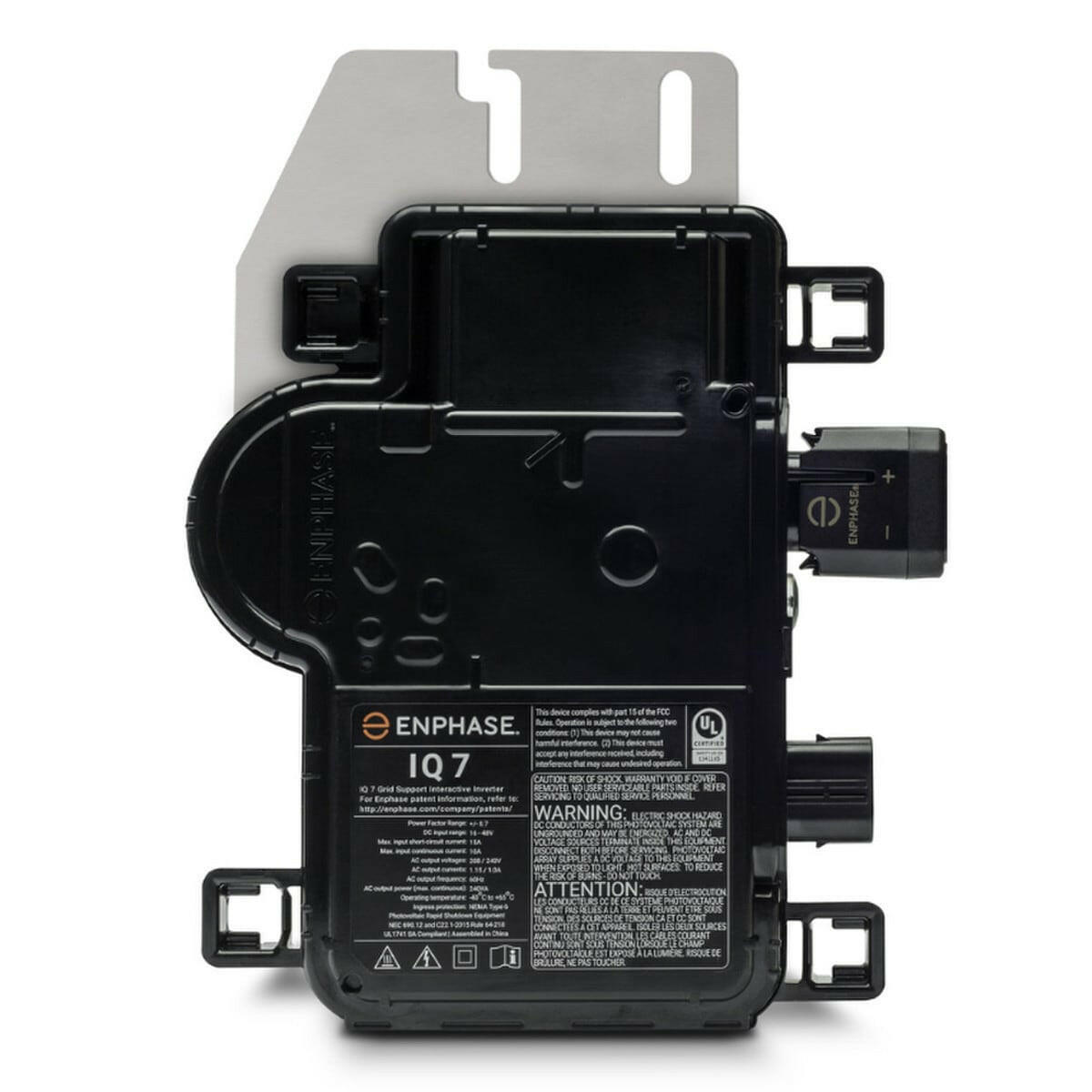

Enphase IQ7-60-2-US Microinverter - 240VAC

The high-powered Enphase IQ7 Microinverter dramatically simplifies the installation process while achieving high system efficiency. Part of the Enphase Energy System, the IQ7 Microinverter integrates with the IQ Battery, the IQ Gateway, and the Enphase App. The IQ Microinverters extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading limited warranty of up to 25 years.

Features

• 97% CEC efficiency
• Faster installation with improved, lighter two-wire cabling
• Built-in rapid shutdown compliant (NEC 2014, 2017, 2020)
• Complies with advanced grid support, voltage, and frequency ride-through requirements
• Remotely updates to respond to changing grid requirements
• Configurable for variable grid profiles
• More than a million hours of testing


Specifications

• Series/Model: HiMO1
• Length: 1956 mm
• Width: 991 mm
• Height: 45 mm
• Frame Depth: 40/45 mm
• Cells Technology: Monocrystalline (Mono)
• Cell Dimensions: 77 in x 39.02 in x 1.77 in
• Number of Half Cells: 72 (6 x 12)
• Maximum Power (Pmax): 375 W STC/277.8 W NOCT/345.6 W PTC
• Maximum Power Voltage (Vmp): 39.6 V STC/36.6 NOCT
• Maximum Power Current (Imp): 9.47 A STC/7.59 A NOCT
• Open-Circuit Voltage (VOC): 48.5 V STC/45.3 V NOCT
• Short-Circuit Current (Isc): 9.47 A STC/7.59 A NOCT
• Maximum System Voltage: 1500 VDC (UL & IEC)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 19.3%
• Frame Color: Clear
• Backsheet Color: White
• Irradiance: 1000 W/m²
• Output Cables: 4 mm², 1200 mm in Length
• Connector Type: MC4 or MC4 Compatible
• Front Side Maximum Static Loading: 5400 Pa
• Rear Side Maximum Static Loading: 2400 Pa
• Hailstone Test: 25 mm Hailstone at the Speed of 23 m/s
• Operating Temperature: -40 to 85 deg C
• Cell Temperature: 25 deg C STC
• Ambient Temperature: 20 deg C NOCT
• Temperature Coefficients of Pmax: -0.37%/deg C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.286%/deg C
• Temperature Coefficients of Isc: 0.057%/deg C
• Nominal Operating Cell Temperature: 45 +/-2 deg C
• Air Mass (AM): 1.5
• Junction Box: IP68 Rated, 3 Diodes
• Power Output Tolerance: 0-5 W
• Standards: IEC 61215, IEC61730, UL1703, ISO 9001: 2008: ISO Quality Management System, ISO 14001: 2004: ISO Environment Management System, TS62941: Guideline for Module Design Qualification & Type Approval, OHSAS 18001: 2007 Occupational Health & Safety, TUV, CSA, CE, Application Class A
• Warranty: 10 Years Materials & Processing, 25 Years Extra Linear Power Output


Documents

• Specification Sheet
