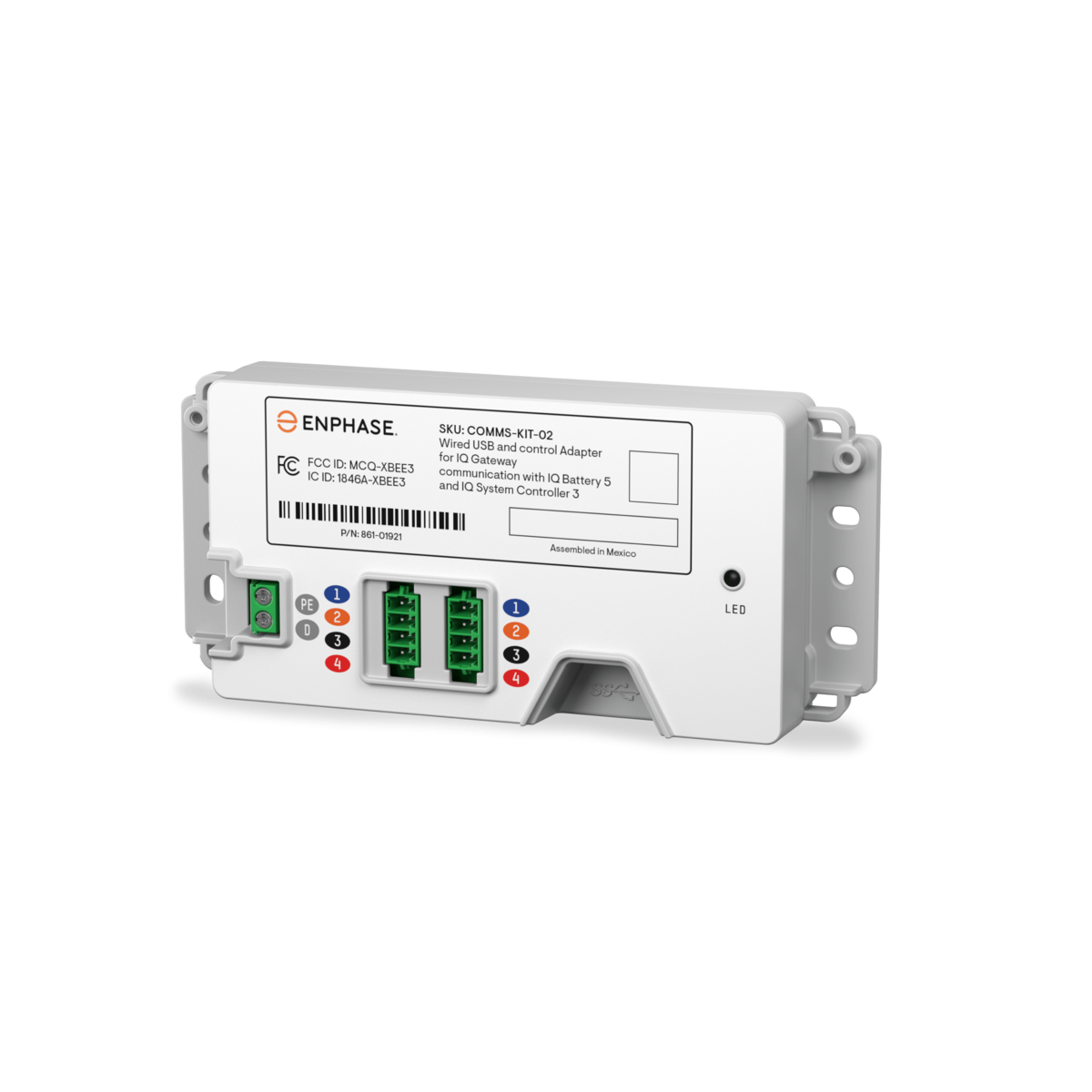

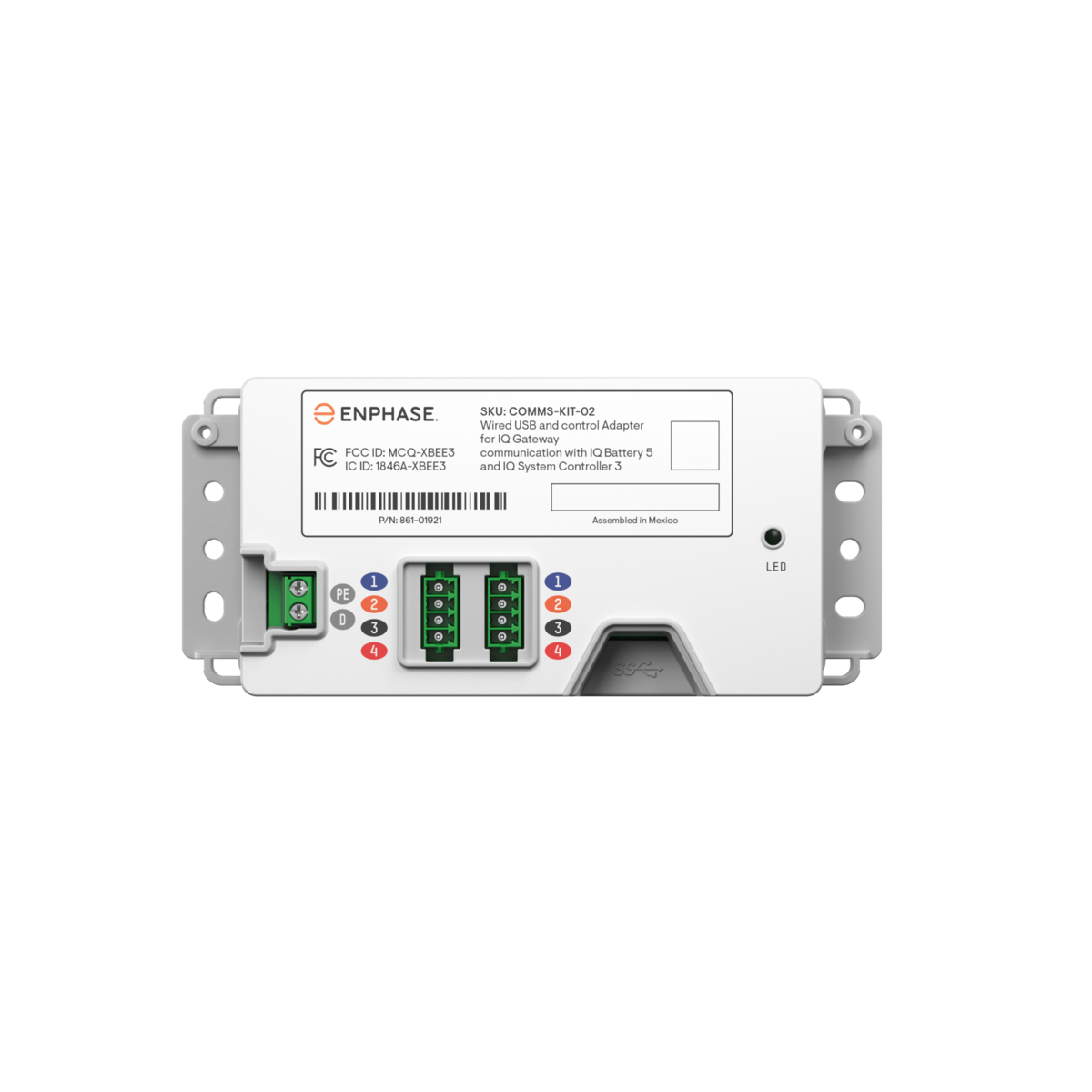

Enphase COMMS-KIT-02 Communications Kit

By enabling wired control communications, the Communications Kit 2 facilitates upgrades of existing Solar Only sites to add an IQ Battery 5P without replacing an existing IQ Combiner, IQ Gateway, or Envoy S Metered. The Communications Kit 2 enables communication between IQ Gateway, IQ Battery 5P, and IQ System Controller 3/3G. The Communications Kit 2 cannot be used with prior versions of the IQ Battery or the IQ System Controller. The Communications Kit 2 can be used to upgrade PV-only sites to grid-tied or grid-forming systems in the absence of an IQ Combiner 5/5C. It is not needed when an IQ Combiner 5/5C is used because the IQ Combiner 5/5C integrates the functionality of the Communications Kit 2.

Features

• Connects via USB adapter
• Facilitates upgrades of existing Solar Only sites to add an IQ Battery 5P without replacing an existing IQ Combiner, IQ Gateway, or Envoy S Metered
• Enables wired control communication between system components
• Minimal voltage and easy to install
• Uses wired control communication for fast and consistent communication
• 5 Year limited warranty

Specifications

• Enclosure Width: 368 mm
• Enclosure Height: 371 mm
• Enclosure Depth: 183 mm
• Adapter Width: 152 mm
• Adapter Height: 69 mm
• Adapter Depth: 25 mm
• Power Source: 5 V USB Type A
• Amperage Rating: 500 mA
• Temperature Rating: -40 to 45 deg C
• Enclosure Rating/IP Rating: NEMA 3R
• Includes: Control Adapter, NEMA 3R Enclosure, Ground Terminal Block, Din Rails, USB Cable, Power Jumper, Spare Control Header, Zip Ties
• Humidity: 85% RH
• Standards: US/FCC ID: MCQ-XBEE3, CAN/IC ID: 1846A-XBEE3
• Suitable For Use With: IQ Battery 5P, IQ System Controller 3/3G, IQ Combiner 3-ES/3C-ES, IQ Combiner 4/4C, IQ Gateway, Envoy S Metered, Enphase Control Cable
• Warranty: 5 Years Limited

Documents

• Specification Sheet
• Instruction/Installation Manual
