EcoFlow Helios 200 W (Solar Panel) Complete Home Backup System

Introducing the Solaris Helios Home Backup Solar Kit - a comprehensive and efficient solution for powering your off-grid lifestyle. This kit includes two EcoFlow Delta Pro units, the latest and most advanced portable power station from EcoFlow. You get eight 200 watt solar panels, totaling 1600 watts of renewable energy. The Delta Pro is a compact, yet powerful device that provides clean and reliable energy for your home, RV, or cabin. With a combined lithium battery capacity of a full 7200Wh and a maximum AC output of 3600W per unit, this power station can handle lighter energy needs for multiple days, making it ideal for simple off-grid living. The 200 watt solar panels included in this kit are designed to work in harmony with the Delta Pro, using a 2x2 series-parallel array for each Pro unit. They are high-efficiency, rigid-frame panels that can convert sunlight into usable energy, which can then be stored in the Delta Pro. The panels are durable and weather-resistant, making them perfect for outdoor use. With a total capacity of 1600 watts, they can recharge the Delta Pro units in just one average day of sunlight, giving you unlimited power whenever you need it. The EcoFlow Smart Home Panel integrates the EcoFlow DELTA Pro units with your home to achieve a flexible, expandable home battery solution to store energy for later use. Link up to 10 of your home circuits for uninterrupted power during blackouts, smart energy management, and more. This Home Backup Kit is perfect for those who want to have an easy-to-install emergency power solution that can be hardwired to home circuits. It functions as an Automatic Transfer Switch and can be set to provide Uninterrupted Power with a 20ms lag.

Specifications

• Series/Model: Helios

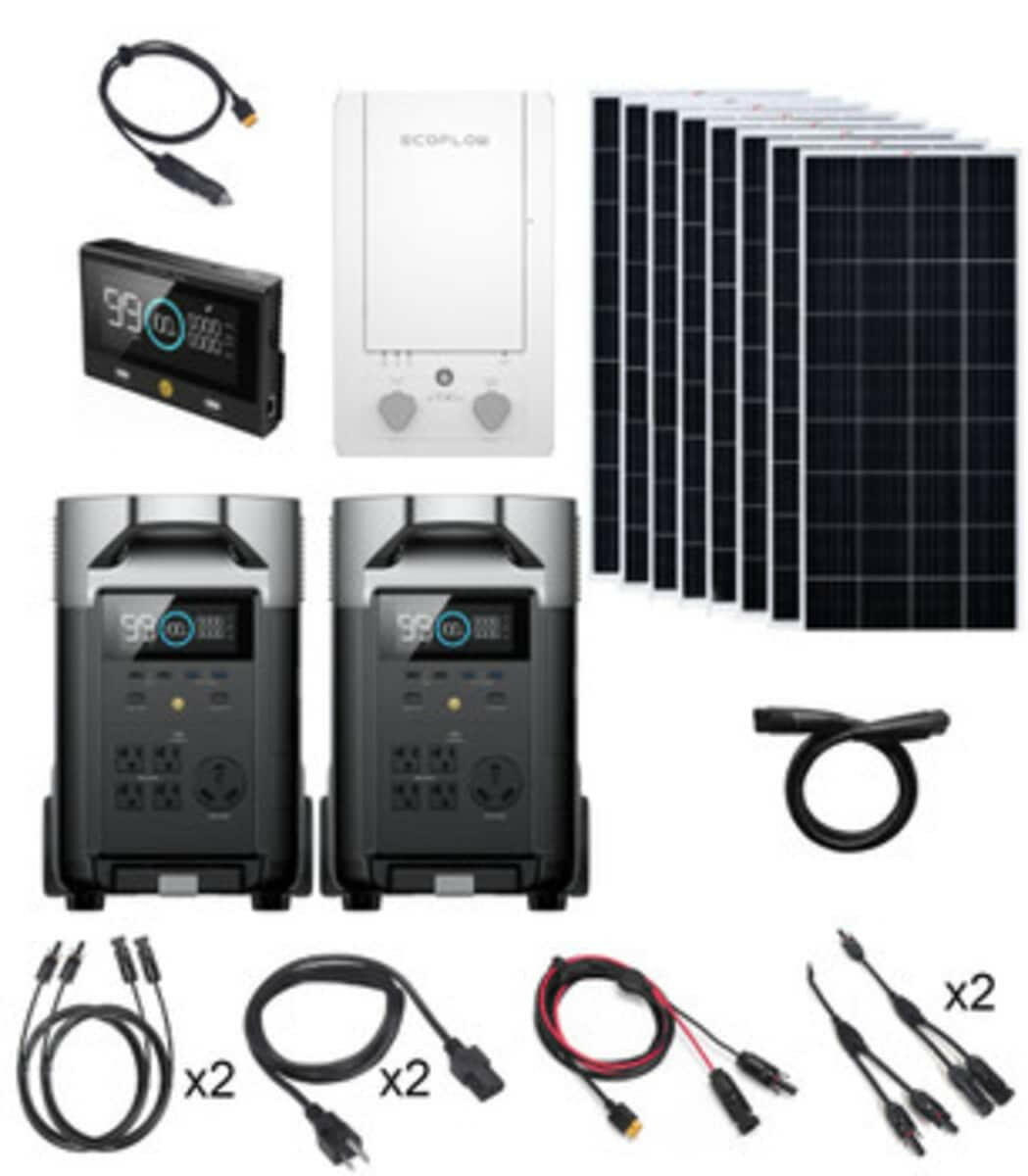

• Includes: (2) EcoFlow Delta Pro Portable Power Station, (8) Mega 200 Watt 24 Volt Solar Panel, (2) MC4 Solar Extension Cable 3M, (2) EcoFlow Solar MC4 Parallel Connection Cable, (2) EcoFlow MC4 to XT60 Solar Cable, (1) Smart Home Panel Combo, (1) Car Charging Cable 1.5M, (1) DELTA Pro Remote Control, (1) Infinity Cable, (2) AC Charging Cable, Optional: (8) Panel Mount Sets, Optional: (2) Delta Pro Bag
• Maximum Power (Pmax): 200 W (Solar Panel)
• Maximum Power Voltage: 37.6 V (Solar Panel)
• Maximum Power Current: 5.32 A (Solar Panel)
• Open-Circuit Voltage (VOC): 45.4 V (Solar Panel)
• Short-Circuit Amperage: 5.83 A (Solar Panel)
• Maximum System Voltage (Vmax): 1000 VDC (Solar Panel)
• Operating Temperature: -40 to 90 deg C (Solar Panel)
• Maximum Series Fuse Rating: 15 A (Solar Panel)
• Capacity: 3600 Wh (Delta Pro)
• Extra Battery: Support Up to (2) Delta Pro Smart Extra Battery/Smart Generator (Delta Pro)
• AC Output: 5 Outlets, 3600 W Total (Surge 7200 W) (Delta Pro)
• Max Device Power Supported By X-Boost: 4500 W (Delta Pro)
• USB-A Output: 2 Ports, 5 V, 2.4 A, 12 W Maximum Per Port (Delta Pro)
• USB-A Fast Charge: 2 Ports, 5 V, 2.4 A/9 V, 2 A/12 V, 1.5 A, 18 W Maximum Per Port (Delta Pro)
• USB-C Output: 2 Ports, 5/9/12/15/20 V, 5 A, 100 W Maximum Per Port (Delta Pro)
• Car Power Output: 12.6 V, 10 A, 126 W Maximum (Delta Pro)
• DC5521 Output: 2 Ports, 12.6 V, 3 A, 38 W Max per port (Delta Pro)
• Battery Chemistry: Lithium Iron Phosphate (LFP) (Delta Pro)
• Cycle Life: 6500 Cycles to 50% Capacity, 3500 Cycles to 80% Capacity (Delta Pro)
• Shelf Life: 1 Year (After A Full Charge) (Delta Pro)
• Output Voltage: 120/240 V (Smart Home Panel)
• System Frequency: 60 Hz
• Number of Controlled Circuits: 10
• Rated Current: 15-30 A
• Maximum Backup Power: 3600/7200 W
• Maximum Connected Battery Energy: 21.6 kWh
• Charging Input: 3400 W Max
• Enclosure Rating: IP20
• Installation: Wall Mount, To be Installed by a Licensed Electrician
• Dimensions: 18.1 in Length x 11.8 in Width x 4.7 in Height (Smart Home Panel), 58.7 in Length x 26.8 in Width x 1.4 in Height (Solar Panel), 25 in Length x 11.2 in Width x 16.4 in Height (Delta Pro)
• Weight: 20 lb (Smart Home Panel), 26.5 lb (Solar Panel)
• Warranty: 25 Years (Panel), 5 Years (Material and Workmanship), 24 + 36 Months (Delta Pro), 3 Years (Smart Home Panel), 12 Months (Accessories
