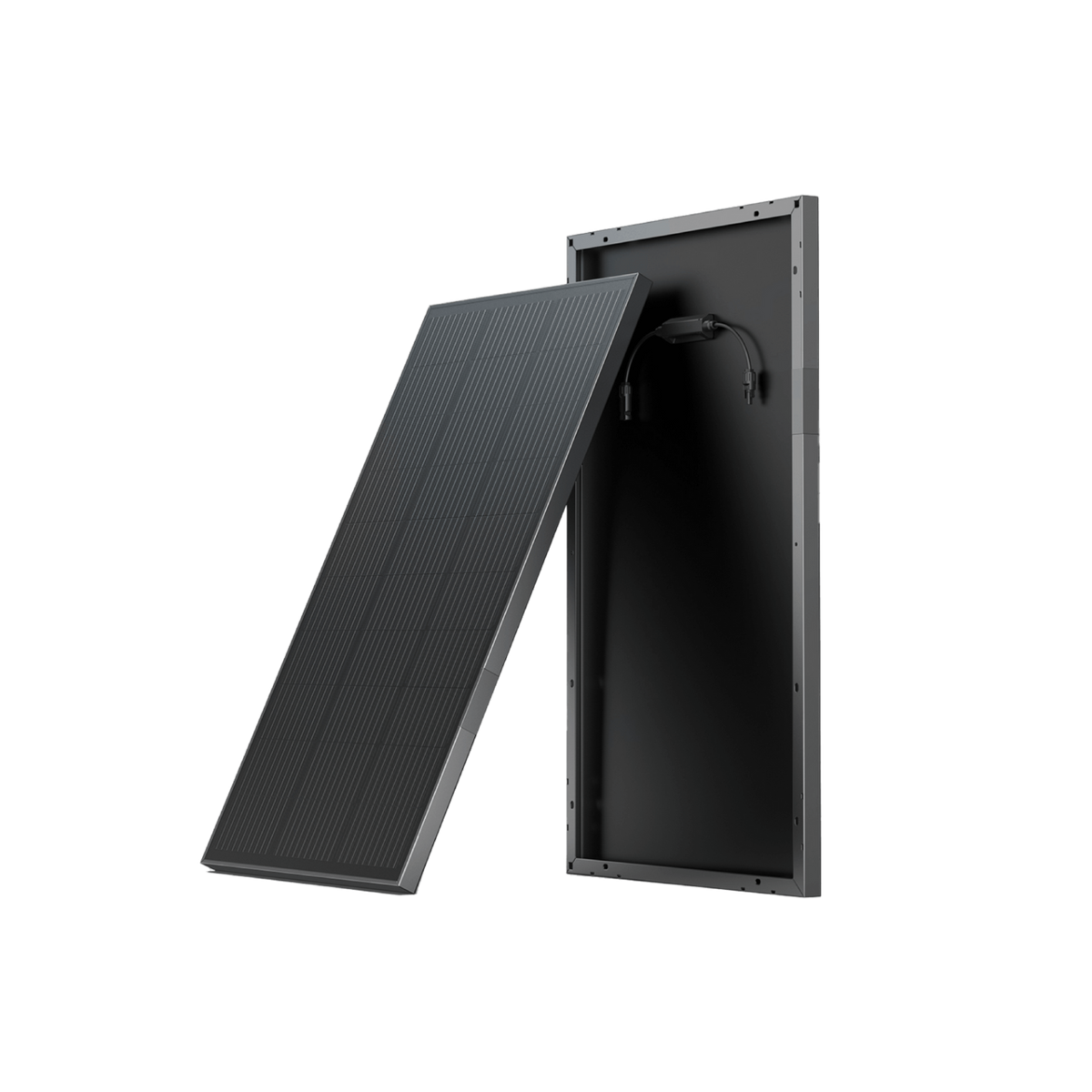

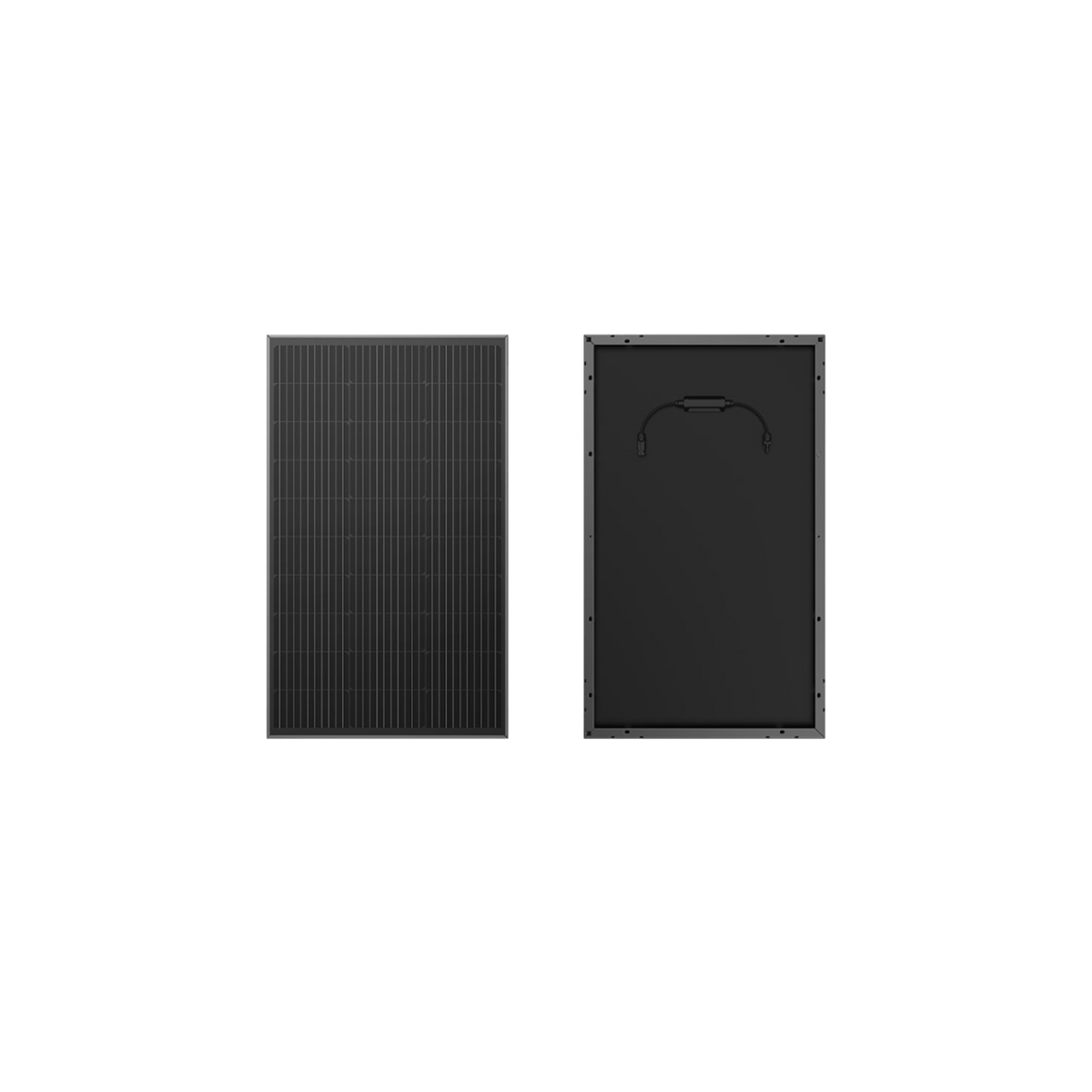

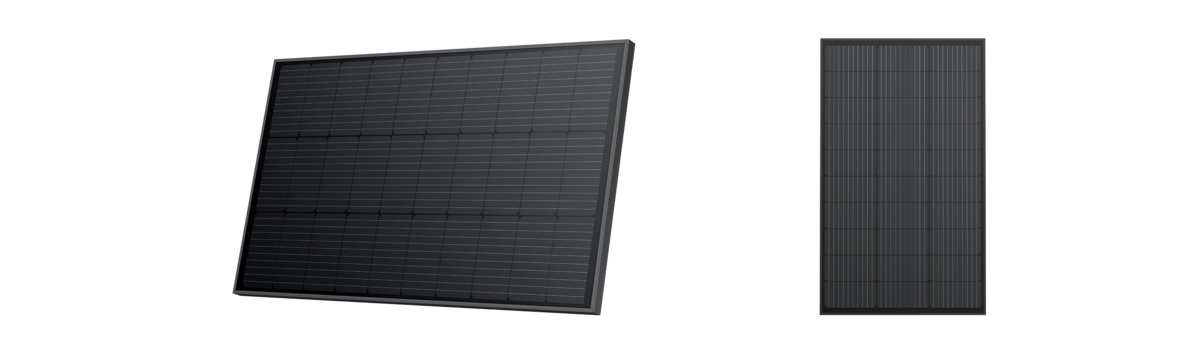

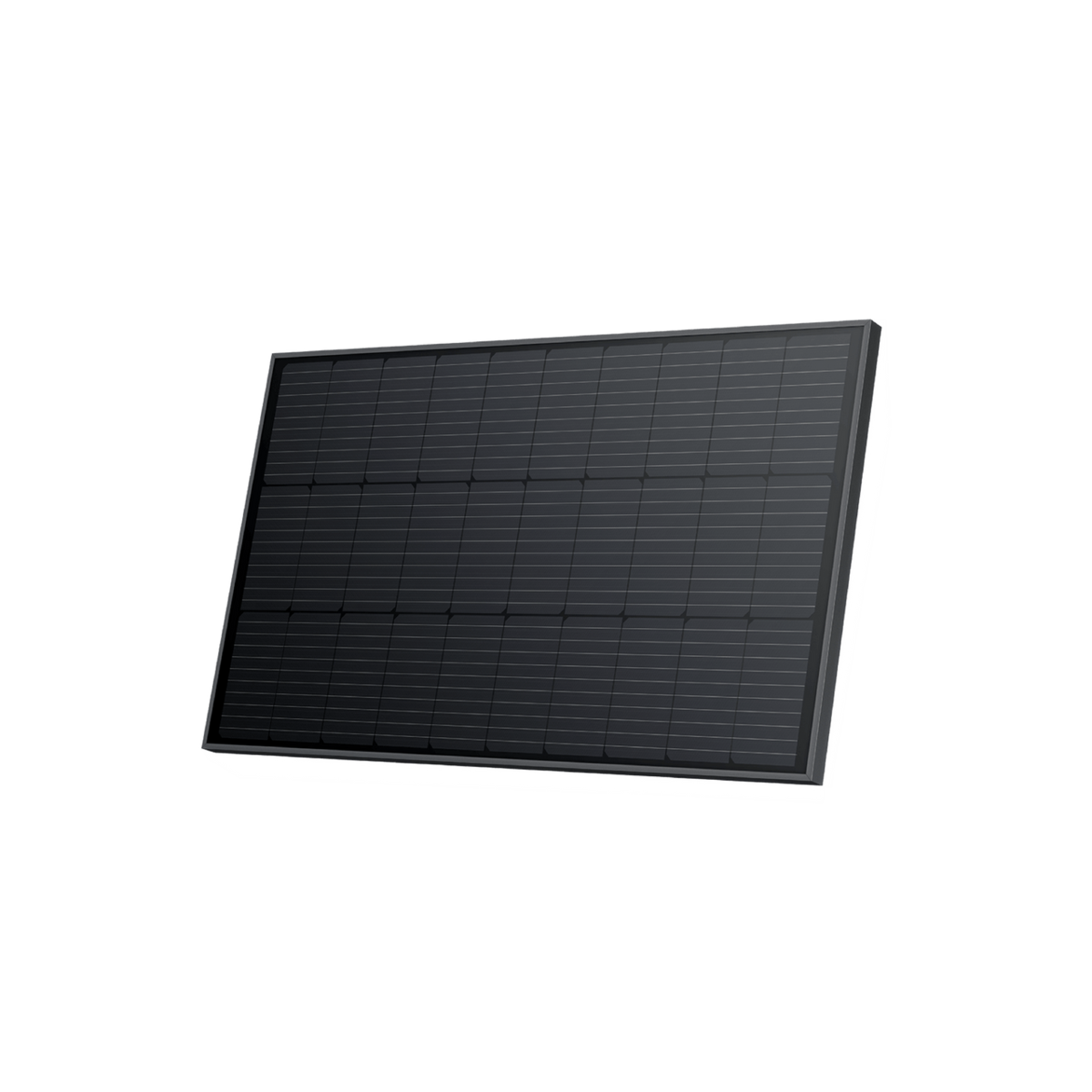

EcoFlow 100W Rigid Solar Panel

With a compact design and high-efficiency rating, string together several of these industry-leading solar panels to quickly charge your LFP batteries and power your RV for days.

Features

• Charge Faster with High Solar Conversion - Our 100W rigid solar panel has an excellent conversion rating of 23%, allowing you to charge even faster. Combine as part of your Power Kits setup or EcoFlow portable power station, and the integrated MPPT algorithm optimizes your solar input
• Ready to Install on Your Surfaces - With pre-cut holes on the panel, the 100W rigid panel is ready to mount on your van or off-grid build. Pair with the 100W Rigid Solar Panel Mounting Feet for a secure attachment to any surface
• Stand Through All Weather - Our 100W rigid solar panel is designed for outdoor weather. With an IP68* waterproof rating, the panel can withstand dirt, low-pressure water jets, extreme winds of up to 130 mph, and even heavy snowfalls
• Durable Structure Design for Long-Lasting Performance - Built with a robust anti-corrosive aluminum frame, our 100W rigid solar panel is designed for maintaining solar collection outdoors for years. Its monocrystalline cells are coated with highly protective lamination and tempered glass to enhance performance and offer long-lasting durability
• Connect with Your Power Systems at Ease - Using an all-inclusive solar connector, our 100W rigid solar panel can be readily connected with any of your existing third-party solar systems. You can charge up 48v power systems and portable power stations with one or multiple panels

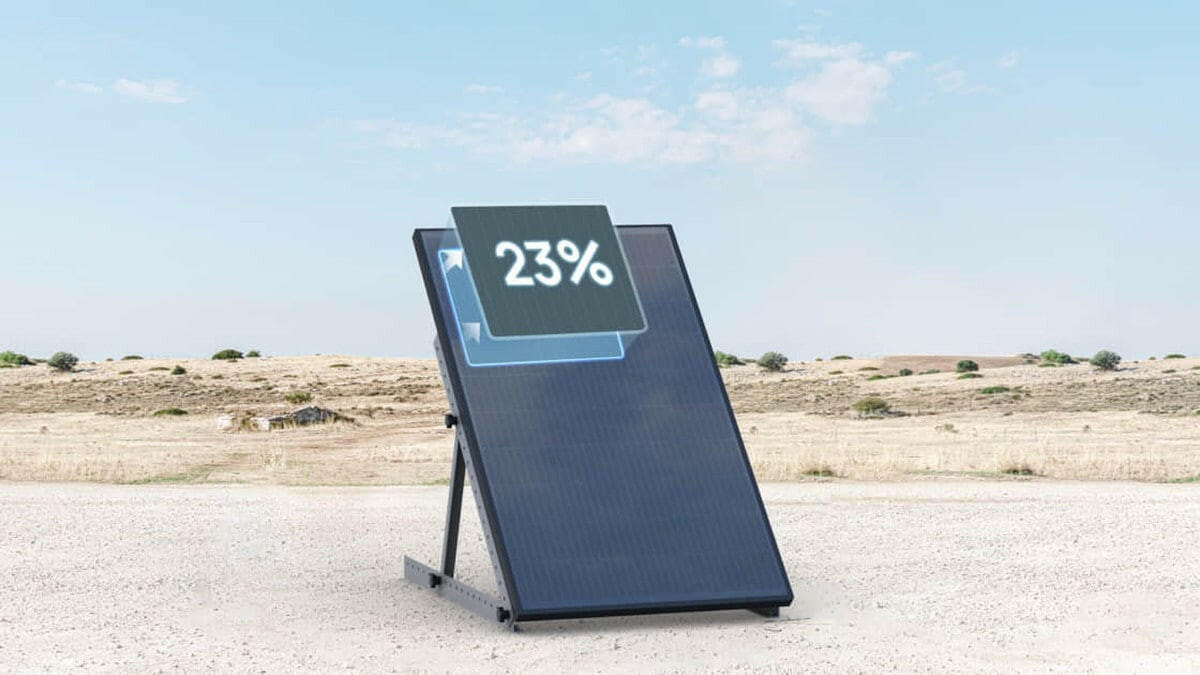

• A 23% conversion rate to sunlight

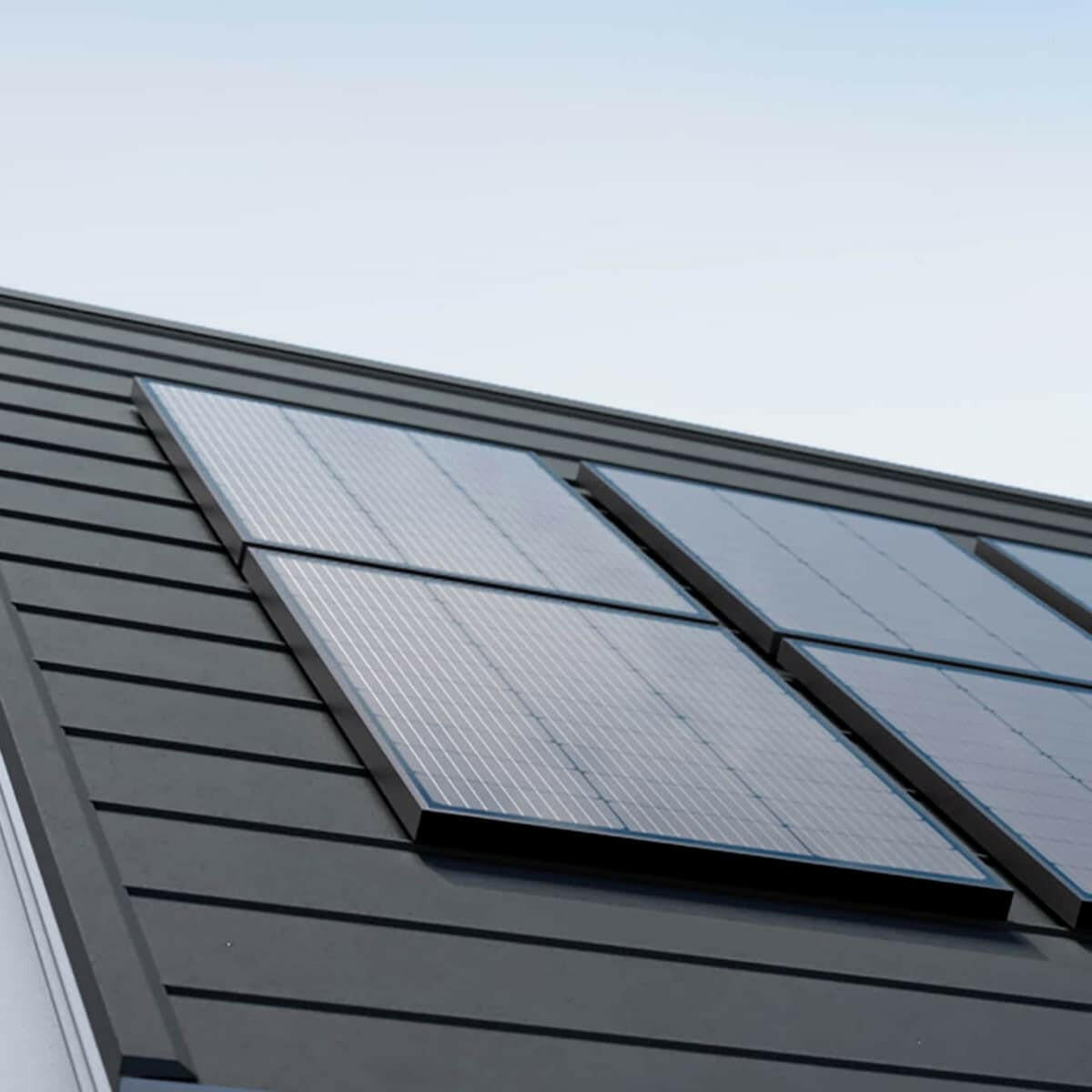

• All-black design that fits any house style
• Built to last with an IP68 waterproof rating
• Fast and easy installation
• Ready to install mounting holes
• Robust durability, highly protective
• Solar cable for universally compatible
• Use highly effective monocrystalline cells
• Pre-drilled slots on solar panel for secure mounting
• Coated with highly protective lamination and tempered glass


Specifications

• Type – Rigid
• Dimensions – 38.6 in (L) x 23.1 in (W) x 1.2 in (H)
• Cells Technology – Monocrystalline (Mono)
• Maximum Power (Pmax) – 100 W
• Maximum Power Voltage (Vmp) – 17.1 V
• Maximum Power Current (Imp) – 5.9 A
• Open-Circuit Voltage (VOC) – 20.3 V
• Short-Circuit Current (Isc) – 6.3 A
• Maximum System Voltage – 600 VDC (UL)
• Maximum Series Fuse Rating – 15 A
• Module Efficiency – 23%
• Connector Type – Solar
• Temperature Coefficients of Pmax – -0.39%/°C
• Temperature Coefficients of VOC – -0.33%/°C
• Temperature Coefficients of Isc – 0.06%/°C
• Junction Box – IP68 Rated
• Includes – (2) x 100 W Rigid Solar Panel, User Manual & Warranty, Solar to XT60 Charging Cable
• Standards – TUV, ETL, PV Cycle, MCS, IEC, UL
• Warranty – 3 Years
• Weight – 13.7 lb (with solar panel)


Documents

• Owners/User Manual
