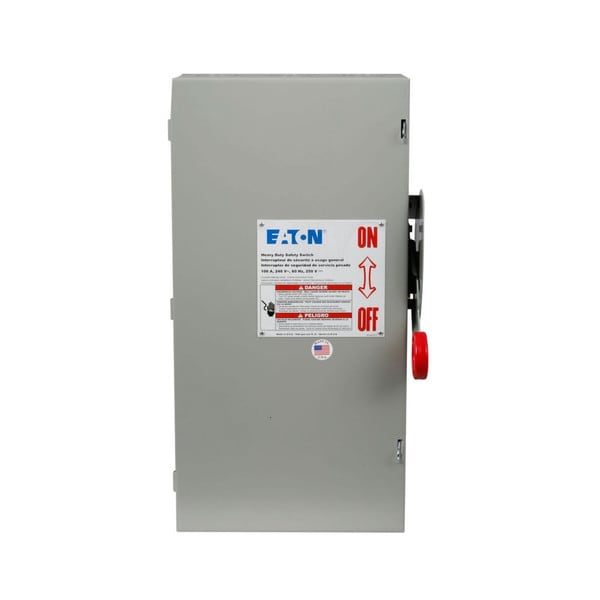

DH363NGK - Eaton Heavy Duty Single-Throw Fused Safety Switch

The Eaton Heavy Duty Single-Throw Fused Safety Switch is engineered to provide reliable overcurrent and disconnect protection in industrial, commercial, and residential applications. With a 100A rating, this three-pole, four-wire switch is designed for use with up to 600V AC systems. It features a fusible design with neutral for added safety and flexibility in wiring configurations. The switch is constructed from painted steel for durability and corrosion resistance and is rated for NEMA 1 indoor use. This switch is compatible with Class H fuses and can support up to 75 HP, offering versatility in motor protection.

Key Features:

• Product Type: Heavy Duty Single-Throw Fused Safety Switch
• Amperage Rating: 100A
• Voltage Rating: 600V
• Phase Configuration: Three-Pole, Four-Wire
• Fuse Type: Fusible with Neutral
• Material: Painted Steel for corrosion resistance
• NEMA Rating: NEMA 1 (indoor use)
• Max Horsepower Rating:
• 30 HP (1-phase @ 240V)
• 40/60 HP (3-phase @ 480V, 600V)
• 75 HP (3-phase @ 480V, 600V)
• Wire Range: 14-1/0 AWG Copper/Aluminum
• Class H: For use with Class H fuses
• Application: Ideal for motor and equipment protection in industrial and commercial settings

This Eaton Fused Safety Switch offers superior protection and ease of use, making it an essential component for safeguarding electrical systems and equipment in high-demand applications.
