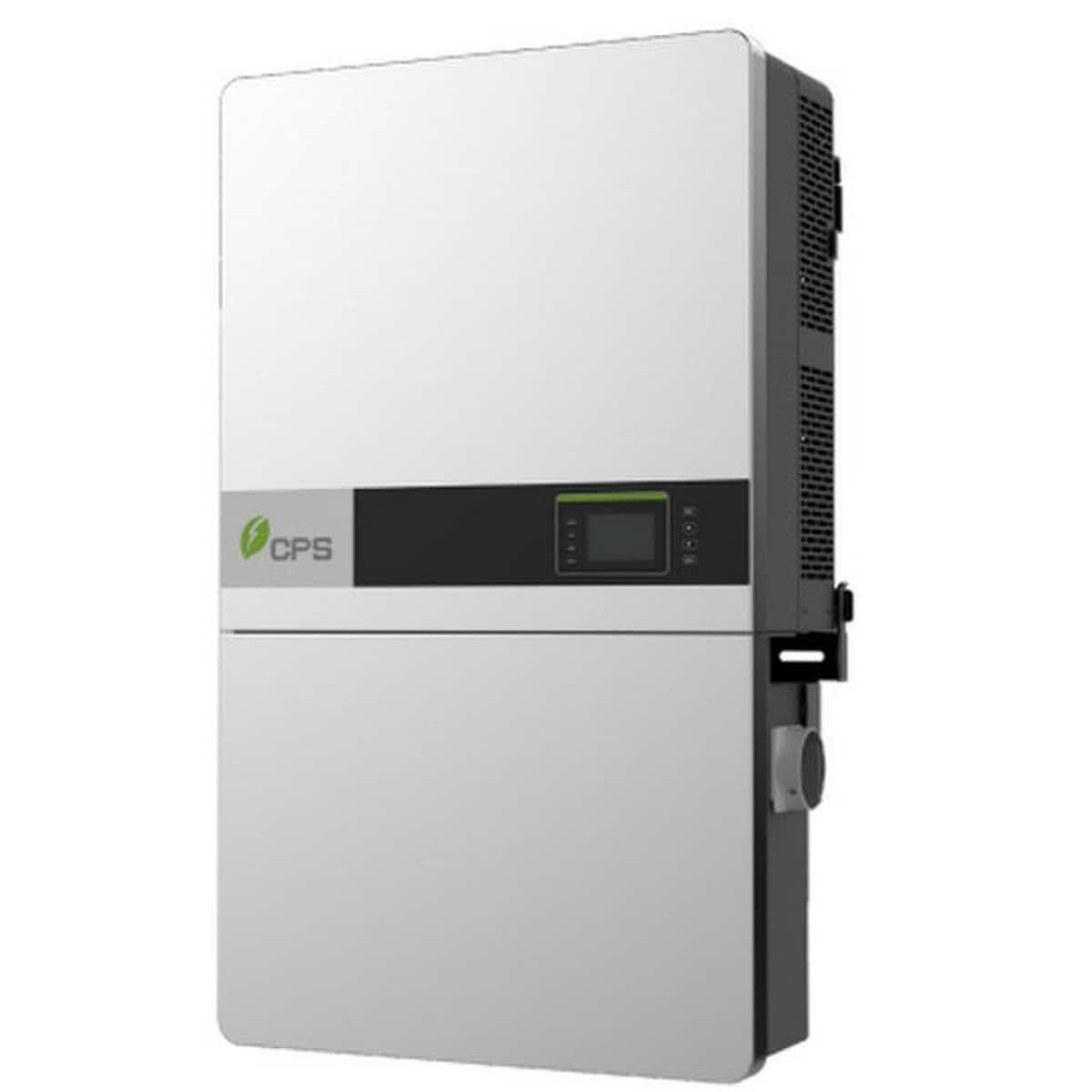

CPS Chint 60kW 3Phase String Inverter SCA60KTL-DO/US-A, 3 MPPT, Std Wirebox, 1000VDC

The 50 & 60kW (55 & 66kVA) medium power CPS three phase string inverters are designed for ground mount, rooftop and carport applications. The units are high performance, advanced and reliable inverters designed specifically for the North American environment and grid. High efficiency at 98.8% peak and 98.5% CEC, wide operating voltages, broad temperature ranges and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The CPS 50/60kW products ship with either the Standard wire-box or the Rapid Shutdown wire-box, each fully integrated and separable with touch safe fusing, monitoring, and AC and DC disconnect switches. The integrated PLC transmitter in the Rapid Shutdown wire-box enables PVRSS certified module-level rapid shutdown when used with the APS RSD-S-PLC/RSD-D products. The CPS FlexOM Gateway enables monitoring, controls and remote product upgrades.

Features

• • NEC 2017 PVRSS Certified Rapid Shutdown
  • 55 & 66kVA rating allows max rated Active Power @0.91PF
  • Selectable Max AC Apparent Power of 50/55kVA and 60/66kVA
  • NEC 2014/17 compliant & UL listed Arc-Fault circuit protection
  • Smart-Grid Rule 21 & UL1741SA Certified
  • 15-90 Mounting orientation (vertical or angled)
  • Fully integrated Standard or Rapid Shutdown wire-box
  • CPS Datasheet 50/60kW (55/66kVA) | Download
  • CPS 50/60kW User Manual | Download
  • PVSYST Simulation with kVA Headroom | Download
  • OND file for 50kW | Download
  • OND file for 60kW | Download
  • PVsyst OND file Verification Report | Download
  • NRTL CSA CPS SCA50-60KTL UL CERT | Download

  High Efficiency and Reliability

  • Maximum efficiency of 98.8%, CEC efficiency of 98.5%
  • 3-level technology and enhanced control mechanism to achieve high efficiency over wide load range
  • 3 MPPTs with 5 inputs each for maximum flexibility
  • Transformerless design
  • Standard warranty: 10 years, extension up to 20 years
  • Advanced thermal design, with variable speed fans
  • Ground-fault detection and interruption circuit
  • AFCI Integrated (per UL1699B )

  Broad Adaptability and Flexibility

  • NEMA Type 4X (IP66), outdoor application
  • Utility interactive controls: Active power derating, reactive power control
  • Integrated DC, AC disconnects
  • Wide MPPT range for flexible string sizing
  • 1000V Max. DC input voltage for flexible configuration
  • 15-90 installation angle (vertical or angled)
  • Fully integrated and separable
  • Standard or Rapid Shutdown wire-box
  • CPS FlexOM Gateway enables monitoring, controls and remote product upgrades

Documents

• Specification Sheet
