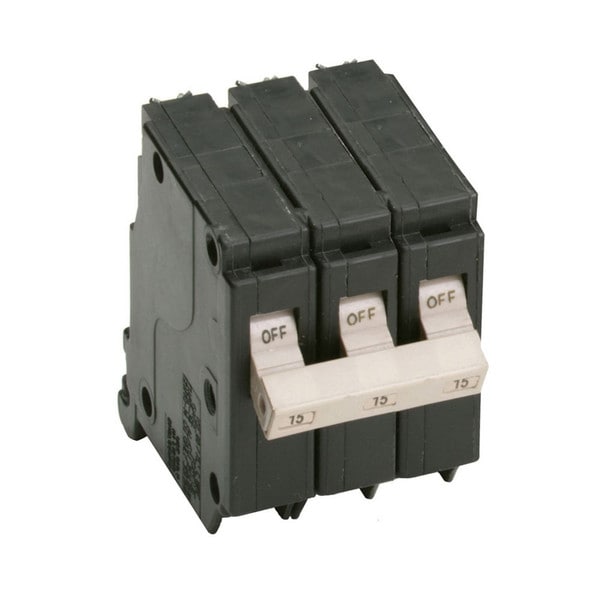

CH315 - Eaton CH Thermal Magnetic Circuit Breaker

The Eaton CH Thermal Magnetic Circuit Breaker delivers reliable protection for residential and commercial systems. Designed for Type CH loadcenters, this three-pole, 15 A breaker handles 240V applications with a 10 Kaic interrupting rating. It features a common breaker trip for added safety and supports 14 AWG to 6 AWG copper or aluminum wire. The 3/4-inch standard size ensures easy installation in CH series panels.

Key Features:

• 15 A capacity for precise circuit protection
• 10 Kaic interrupt rating for high fault tolerance
• Three-pole configuration for 240V systems
• Common breaker trip for enhanced safety
• Supports 14 AWG to 6 AWG Cu/Al wire

This breaker ensures dependable performance and safe operation in Type CH loadcenters across various applications.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - CH315

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
