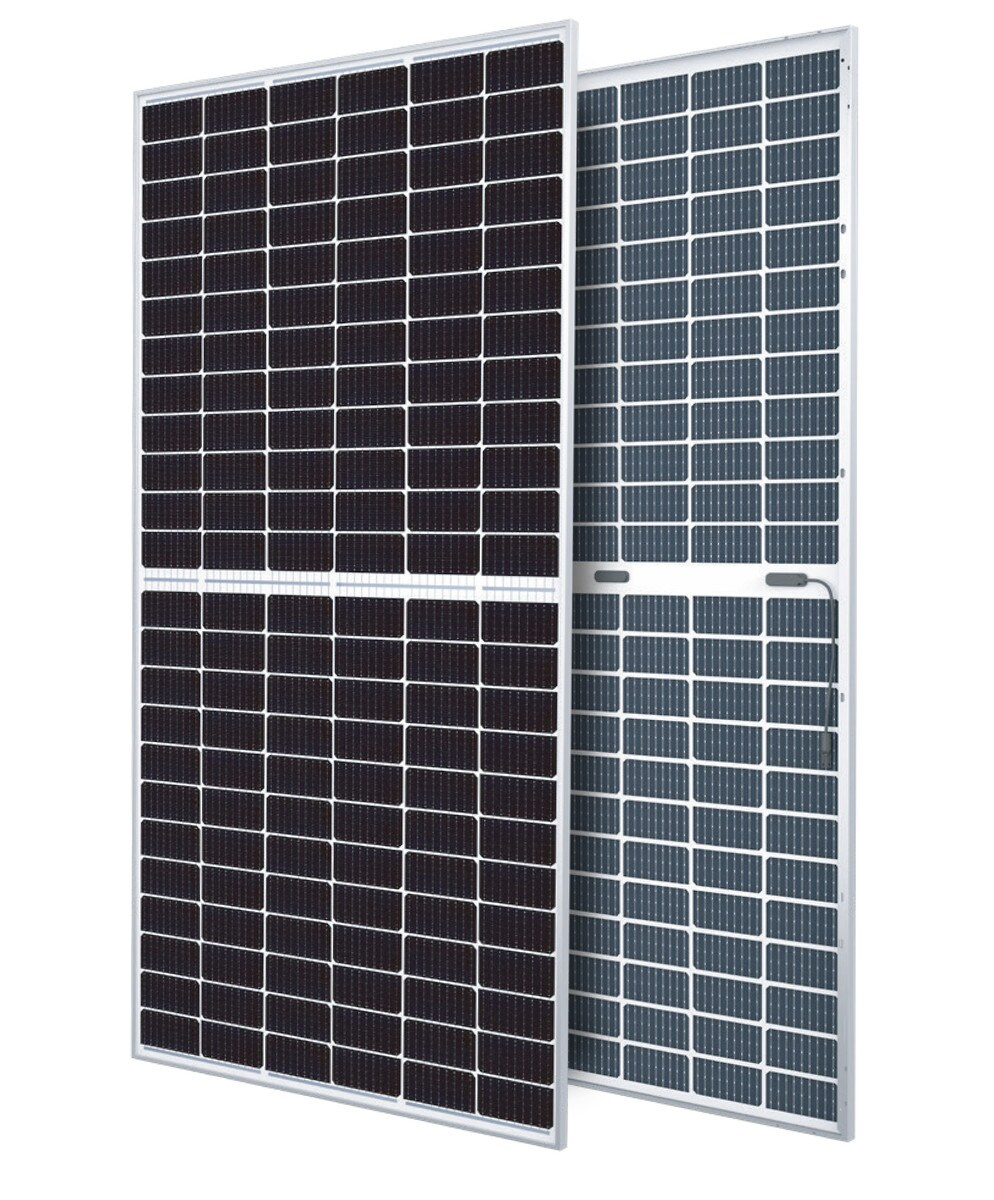

Canadian Solar BiHiKu Super Bificial Mono Perc Series 455 W Monocrystalline Solar Panel

The 455W CS3W-455MB-AG solar panel features reliable Mono-crystalline solar cells with an efficient 144 Dual cell 5BB or MBB solar cell design. A 30mm anodized aluminum frame ensures the robustness of this solar panel for up to a 5400 Pa snow load and a wind load up to 3600 Pa. Canadian Solar BiHiKu solar panel With Canadian Solar's industry leading bifacial cell technology and extensive know-how in double glass module manufacturing, they have developed a new generation of high efficiency bifacial modules with both module sides producing power at the same time. Ensured by over 15 years of experience in module manufacturing, the BiHiKu CS3W-455MB-AG solar panel features a well-engineered module design, stringent BOM quality testing, an automated manufacturing process and 100% EL testing.

Features

• Up to 30% more power from the back side
• 24 % Higher front side power than conventional modules
• Low NMOT: 41 ± 3 Deg C
• Low temperature coefficient (Pmax):-0.34 %/Deg C
• Better shading tolerance
• Lower internal current, lower hot spot temperature
• Minimizes micro-crack impacts
• Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
• 12 Years on materials and workmanship, linear power performance 30 years warranty
• 30 mm Silver frame on white backsheet

Specifications

• Series: BiHiKu Super Bificial Mono Perc
• Length: 212 mm
• Width: 1048 mm
• Depth: 30.48 mm
• Material: Anodized Aluminum Alloy Frame, Heat Strengthened Glass Front
• Color: Clear on White
• Power Voltage: 41.3 V
• Power Current: 10.96 A
• Power Rating: 495 W
• Open Circuit Voltage: 11.6 V
• Short Circuit Current: 11.66 A
• Voltage Rating: 1500 V
• Cell Type: Monocrystalline
• Number of Cells: 144 (2 x (12 x 6))
• Operating Temperature: 41 deg C
• Efficiency: 20.4%
• Connection Type: PV-KST4/xy-UR, PV-KBT4/xy-UR (IEC 1000V) or T4-PC-1 (IEC 1500 V) or PV-KST4-EVO2/XY, PV-KBT4-EVO2/XY (IEC 1500 V)
• Enclosure Rating/IP Rating: IP68
• Warranty: 25 Years
• Weight: 62.6 lb
• Standards: CSA, CE, DVE, TUV Certified, UK CA

Documents

• Specification Sheet
• Warranty Sheet
