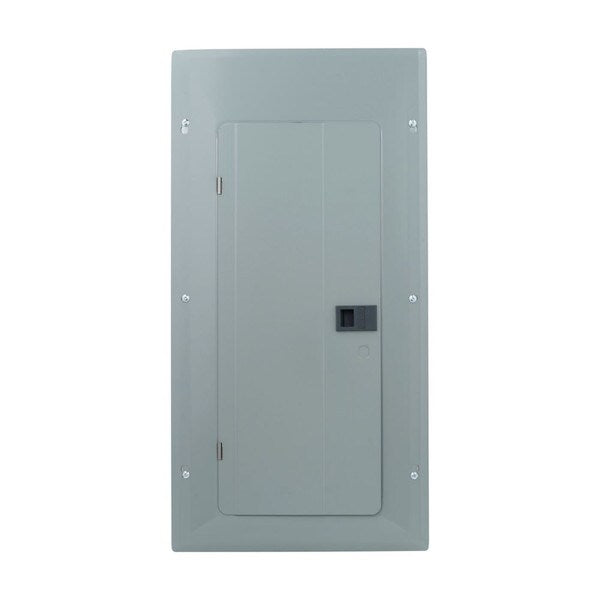

BRP20B200 - Plug-On Neutral Main Circuit Breaker Loadcenter

The Plug-On Neutral Main Circuit Breaker Loadcenter offers a robust indoor power distribution solution with a 200A rating and a durable aluminum bus. Enclosed in a NEMA 1 metallic casing, this loadcenter features 20 spaces supporting up to 40 single-pole circuits. It includes a cover and supports easy wiring with a plug-on neutral system.

Key Features:

• 200A rated, X5 configuration
• NEMA 1 enclosure for indoor use
• 20 spaces for up to 40 circuits
• 22 kAIC interrupt rating
• Single-phase, two hots, a neutral, and a ground
• Compatible with CSR2200 main breaker
• Accepts 6–1/0 AWG Cu/Al wire
• Plug-on neutral for quicker, neater installations

Perfect for residential and commercial indoor applications requiring high-capacity circuit protection.

Documents:

Specifications and datasheets

Eaton Specification Sheet - BRP20B200
Warranty guides

Eaton type BR circuit breaker limited warranty June 2024
