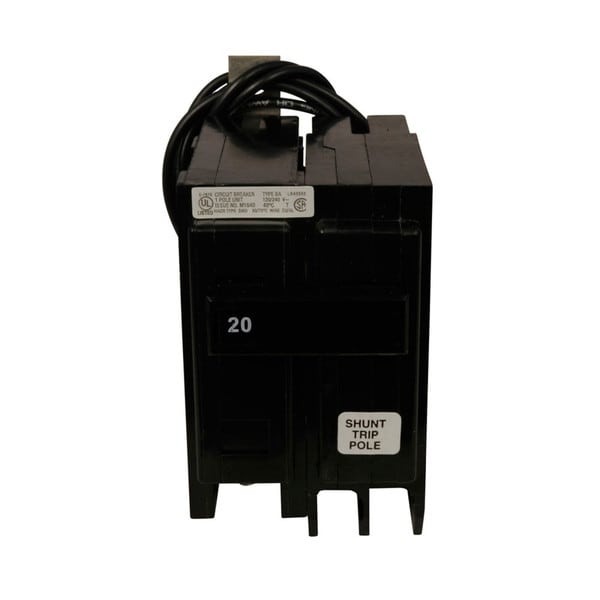

BAB1020S - Eaton Bab Thermal Magnetic Circuit Breaker

The Eaton BAB Thermal Magnetic Circuit Breaker from the Quicklag industrial series is a reliable and compact solution designed for overcurrent protection in residential, commercial, and light industrial applications. This breaker combines thermal and magnetic trip elements for dependable protection against overloads and short circuits.

Key Features:

• Type: Quicklag Thermal-Magnetic Circuit Breaker
• Amperage Rating: 20 A
• Interrupting Capacity: 10 kAIC
• Pole Configuration: Single-pole
• Voltage Rating: 120/240 VAC
• Trip Mechanism: Non-interchangeable, factory-calibrated
• Shunt Trip: 24/48 VDC shunt trip capability
• Series: Q7, BAB

Engineered for performance and safety, this circuit breaker is an ideal component in power distribution systems where quick, reliable fault interruption is essential.

Documents:

Catalogs
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1

Multimedia
Circuit Breakers Explained

Specifications and datasheets
Eaton Specification Sheet - BAB1020S
