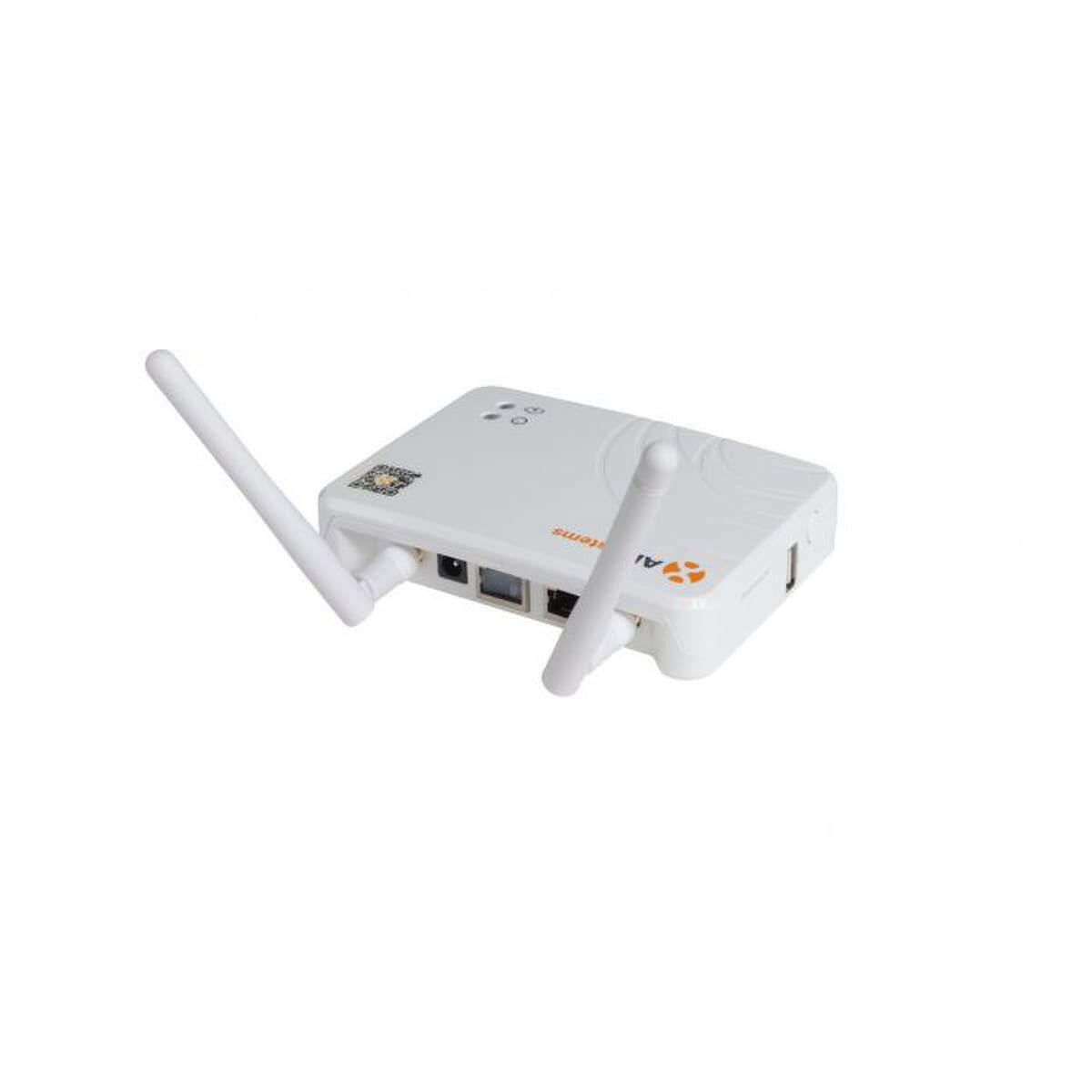

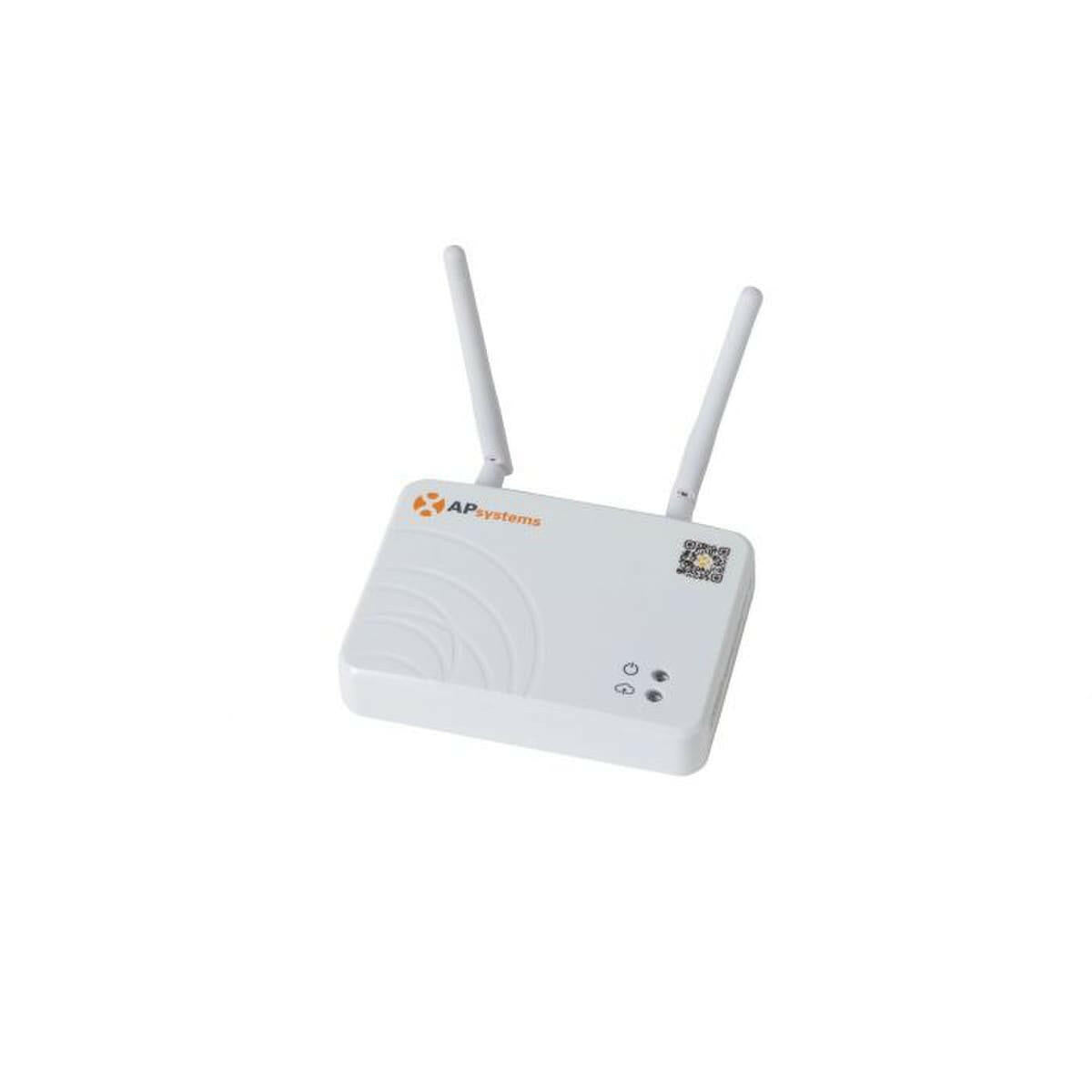

APsystem ECU Residential Monitoring Gateway, Zigbee comm, WiFi, no CTs, no RGM, YC600 (SKU Part Number ECU-R Gateway)

The APsystems Gateway, our state-of-the-art Energy Communication Unit (ECU), is the information gateway for APsystems inverters. It collects and transfers module performance data giving you comprehensive monitoring and control over each individual module, optimizing the performance of your solar array.

Features

• Collection and transmission of inverter data
• Module-level monitoring of each inverter
• Small size, flexible installation
• ZigBee communication

Specifications

• Series/Model: ECU
• Communication: ZigBee 2.4 GHz
• Ethernet: 10/100M Auto-Sensing, Auto-Negotiation
• Wireless: 802.11g/n
• USB Interface: Power Only, 5 V-1 A
• Power Consumption: 1.7 W
• Dimensions: 4.8 in Length x 3.4 in Width x 0.98 in Depth
• Operating Temperature: -4 to 149 deg F
• Enclosure Rating: NEMA 1 (IP20)
• Cooling: Natural Convection - No Fans
• Grid Type: Single Phase/Three Phase
• Standards:
  • IEC 60950-1
  • EN60950-1
  • IEC 60529
  • EN 60529
  • ANSI/UL 60950-1
  • CAN/CSA C22.2 No.60950-1
  • UL50E
  • FCC part 15
  • EN61000-6-1
  • EN61000-6-3
  • ICES-003
  • AS NZS 60950-1
  • GB/T17799
• Warranty: 3 Years
• Weight: 0.33 lb

Documents

• Specification Sheet
