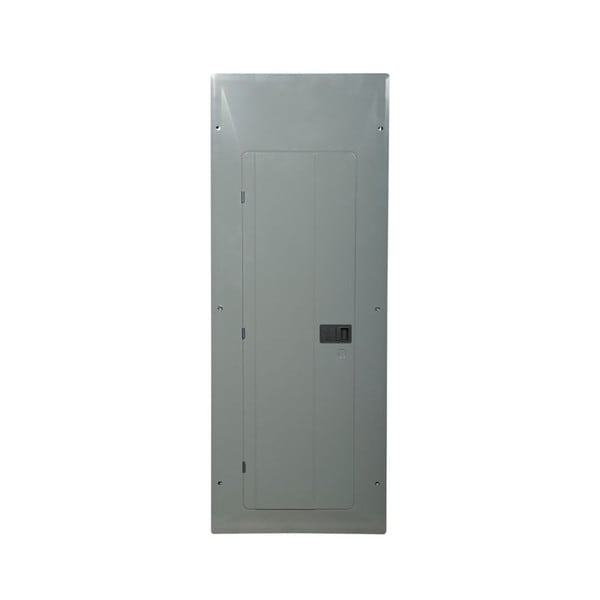

3BR4242L200 - Main Lug Load Center

The Main Lug Load Center is designed to deliver reliable and efficient power distribution for residential and commercial applications. Rated at 200A, it features 42 spaces and 42 circuits, supporting voltages of 120/208/240 VAC. Constructed with a durable metallic enclosure and an aluminum bus, it accommodates wire sizes ranging from 6 AWG to 1/0 AWG. Its compact design allows for easy installation in a variety of settings.

Key Features:

• Product Type: Main Lug Load Center
• Amperage Rating: 200A
• Circuit Capacity: 42 Spaces / 42 Circuits
• Voltage Rating: 120/208/240 VAC
• Wire Size Range: 6 AWG to 1/0 AWG
• Enclosure Material: Metallic
• Bus Material: Aluminum
• Dimensions: 36.3474 cm Length x 10.3378 cm Width x 98.5520 cm Height

This main lug load center provides a dependable solution for organized and safe electrical system management.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - 3BR4242L200
