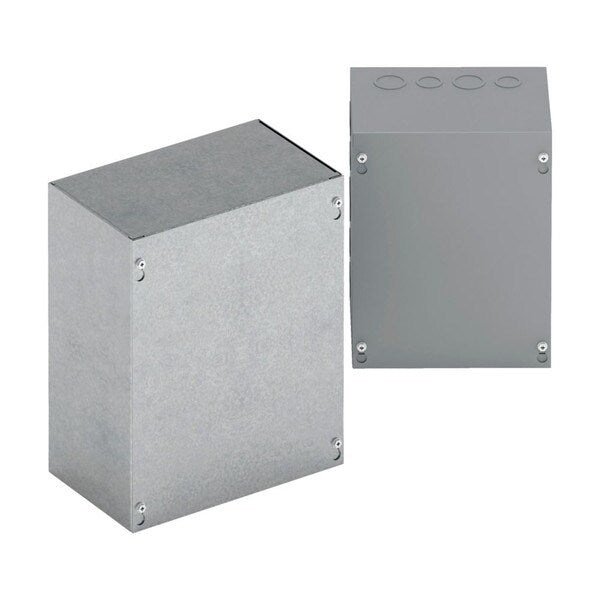

18184 SC - Eaton B-Line Series Type 1 Junction Boxes

The Eaton B-Line Series Type 1 Junction Box provides a secure and durable enclosure for electrical connections in indoor settings. Made from rugged carbon steel, this enclosure is designed for general-purpose use in clean, dry environments and is finished to resist wear and corrosion over time.

With dimensions of 18" height, 4" length, and 18" width, this medium single-door junction box features a screw cover for added security. The SC enclosure is surface mounted and includes thru holes for straightforward installation. It comes equipped with 9 side knockouts and 9 top-bottom knockouts, offering flexible conduit access for a variety of wiring configurations.

Key Features:

• Enclosure Type: NEMA 1 for indoor applications
• Material: Durable carbon steel construction
• Design: Medium single door with screw cover
• Mounting: Surface mounted with thru holes
• Size: 18" Height x 4" Length x 18" Width
• Knockouts: 9 side knockouts and 9 top-bottom knockouts
• Model: SC Enclosure
• Application: Suitable for commercial and light industrial use

The Eaton B-Line Series Type 1 Junction Box is an ideal choice for managing and protecting wiring connections in indoor electrical systems with customizable entry options.

Documents:

Catalogs
Type1-3-3r-enclosure-catalog-section

Specifications and datasheets
Eaton Specification Sheet - 18184 SC
