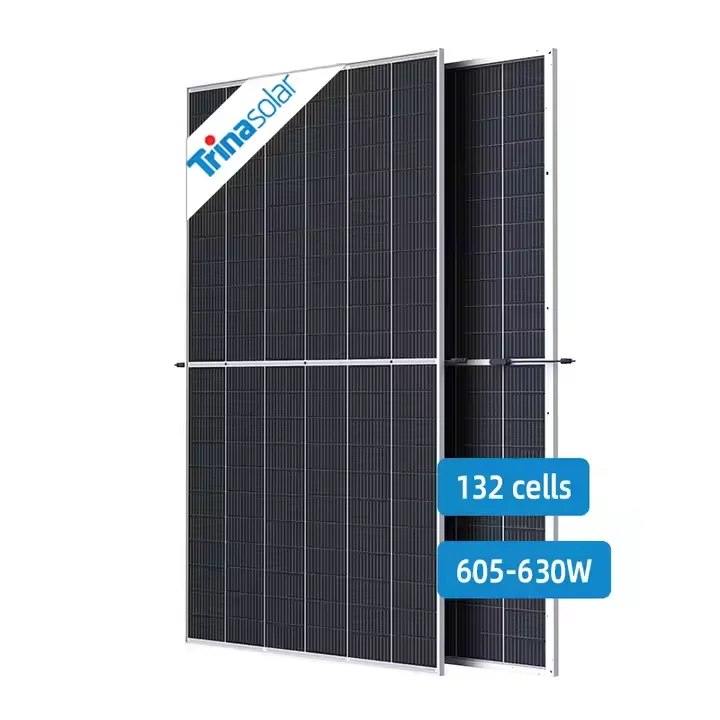

Trina Solar Vertex N – 605 W Bifacial Dual-Glass Monocrystalline Module

High-Power & Premium Design Built for Yield and Longevity
The Vertex N 605 W module from Trina Solar delivers large-format output, bifacial dual-glass construction and monocrystalline high-density-interconnect cell technology ideal for commercial rooftops, large-scale ground-mounts or any high-yield solar installation.

Key Features & Benefits

• Rated power up to 605 W (for the variant) with positive power tolerance 0 ~ +5 W.

• High module efficiency, up to ~22.4% for this class.

• Bifacial dual-glass construction (glass-front & glass-rear) enables energy capture from both sides i.e., additional yield from the rear side depending on albedo.

• Robust mechanical and environmental ratings: module supports positive load up to ~5,400 Pa and negative load ~2,400 Pa, designed for harsh environments.

• Low temperature coefficient (≈ -0.30%/°C) supports better performance in warmer conditions.

• High system voltage compatibility (e.g., up to ~1500 V DC depending on region/variant) to reduce BOS (Balance of System) costs and string wiring.

Why Choose the Vertex N 605 W Module?

When you’re designing a solar system where yield-per-module, durability and long term energy output matter, this module stands out. Fewer modules required means fewer racks, fewer connections and lower per-watt system cost when compared with older/lower power modules. The dual-glass bifacial build further enhances lifetime performance and albedo-driven gains.

Installation & Application Insights

• Best suited for commercial rooftops, industrial buildings, large ground-mounted arrays especially where roof / land area could be optimised by using higher-wattage modules.

• Because it’s a bifacial dual-glass module, to maximise the back-side yield you’ll want to mount in a way that the rear side sees some reflected light (good albedo surface underneath) or open-rack installations.

• The larger format (dimension approx. 2384 × 1134 × 30 mm; weight ~33.7 kg for one variant) means mounting structure, transport and logistics should account for size/weight.

• Ensure your inverter/string design is compatible with the module’s electrical characteristics (e.g., voltage/current at maximum power, cell count, size).

• For best yield: ensure minimal shading (especially important for bifacial modules), keep both sides clean if applicable (rear side if accessible), allow good ventilation to reduce operating temperature.

Warranty & Service

Trina Solar backs these modules with strong warranty coverage. For example, one datasheet shows the performance warranty down to ~87.4% of nominal power at year 30.  Always confirm the exact warranty terms (region-specific) with your supplier/distributor.

Technical Snapshot

• Module Series: Vertex N (e.g., model TSM-NEG19RC.20)

• Rated Power (Pmax): ~605 W (variant)

• Efficiency: up to ~22.4%

• Cell Type: Monocrystalline, 132 cells (for this variant)

• Dimensions: ~2384 mm × 1134 mm × 30 mm (for variant)

• Weight: ~33.7 kg (for variant)

• Temperature Coefficient of Pmax: approx. –0.30%/°C

• Mechanical Load: Positive ~5400 Pa, Negative ~2400 Pa
