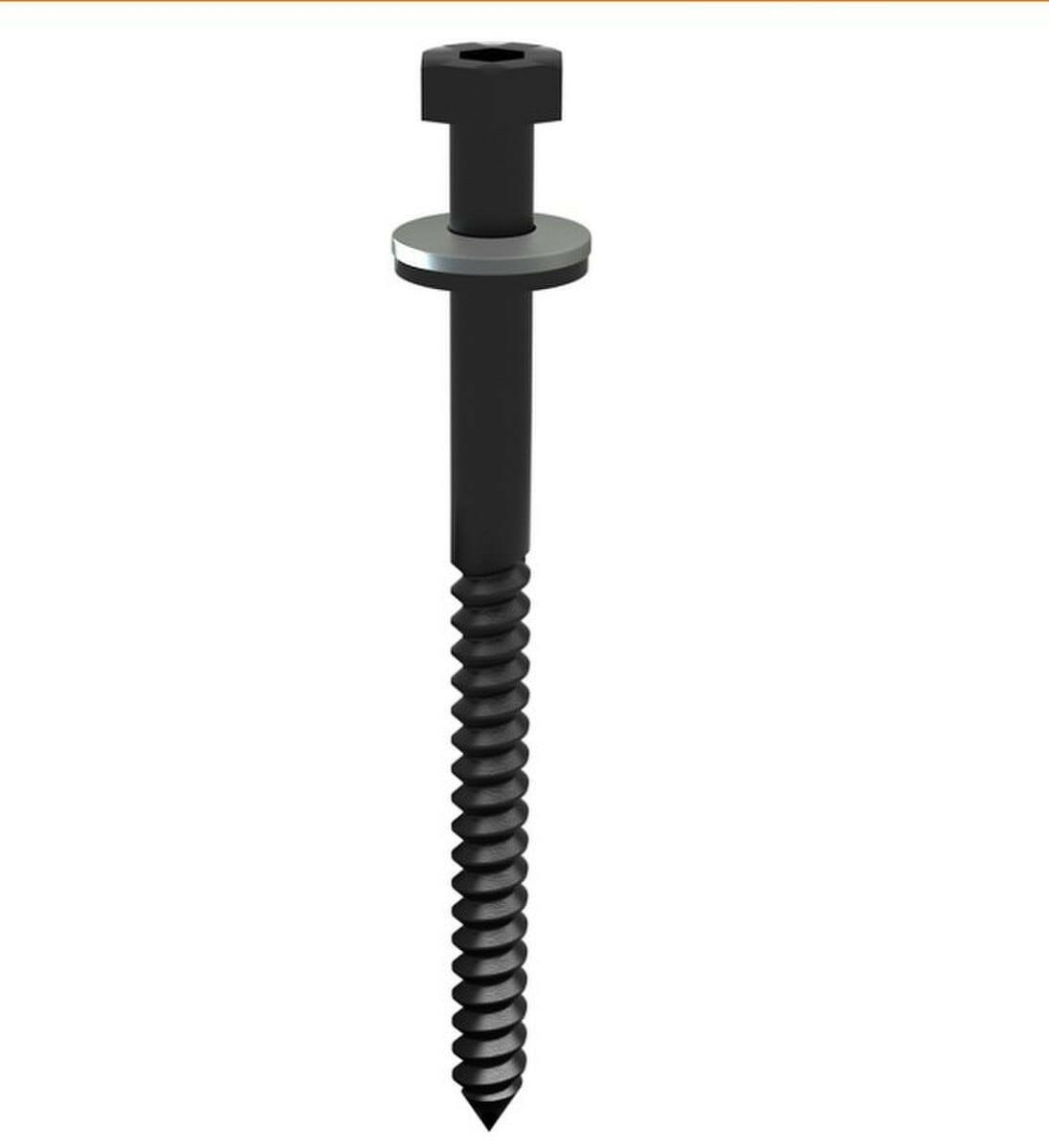

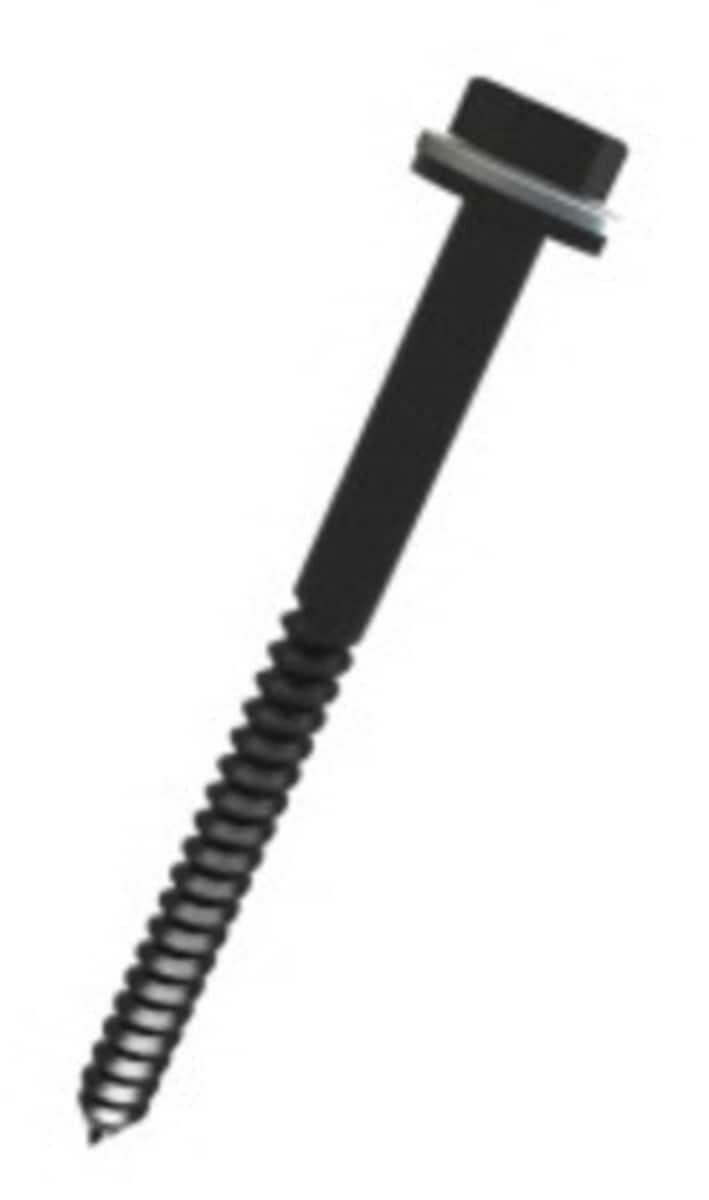

SunModo NanoMount® Black Lag Bolt with Sealing Washer

Damaging roof shingles used to be one of a solar installers' worst challenges. Now, the easy, affordable solution is NanoMount®, SunModo's newest solar mounting innovation. The mount eliminates the need to lift shingles and dramatically reduces the installation time. The patented mounts are High-Velocity Hurricane Zone Approved - Passed TAS 100 (a)Wind-Driven Rain Test. The Ultra Soft Weather Resistant gaskets are integrated with the mounts. All materials are compatible with residential roof coverings as well as commercial single-ply roof membranes.

Features

• The fastest roof attachment in solar
• Versatile mounting options including direct-to-decking
• Eliminates the need to lift shingles and prevents damage to shingle
• High-Velocity Hurricane Zone Approved - Passed TAS 100 (a) Wind-Driven Rain Test
• All materials are compatible with asphalt shingles and single-ply roof membranes


Specifications

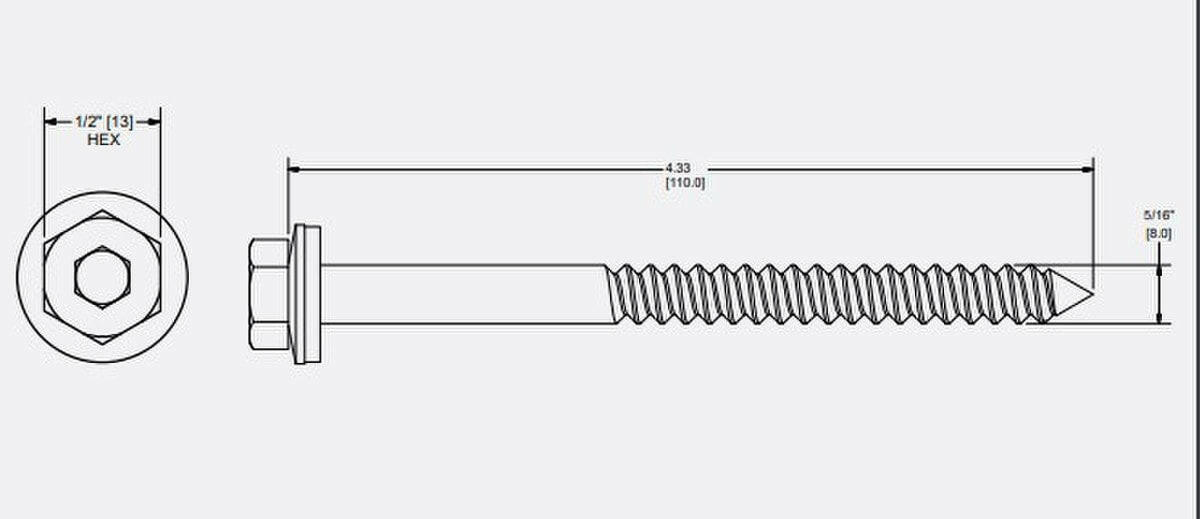

• Nominal Size: M8 x 110
• Head Type: Hex
• Hex Size: 1/2 in
• Material: 304 Stainless Steel
• Finish: Black Powder Coating
• Standards: UL Listed, CSAus Certified, FCC Compliant, IEEE Standards
• Warranty: 25 Years
• Length: 3 in
• Application: Residential Roof Coverings, Commercial Single-Ply Roof Membranes


Documents

• Specification Sheet 1
• Catalog
• Specification Sheet 2
• Wind-Driven Rain Test
