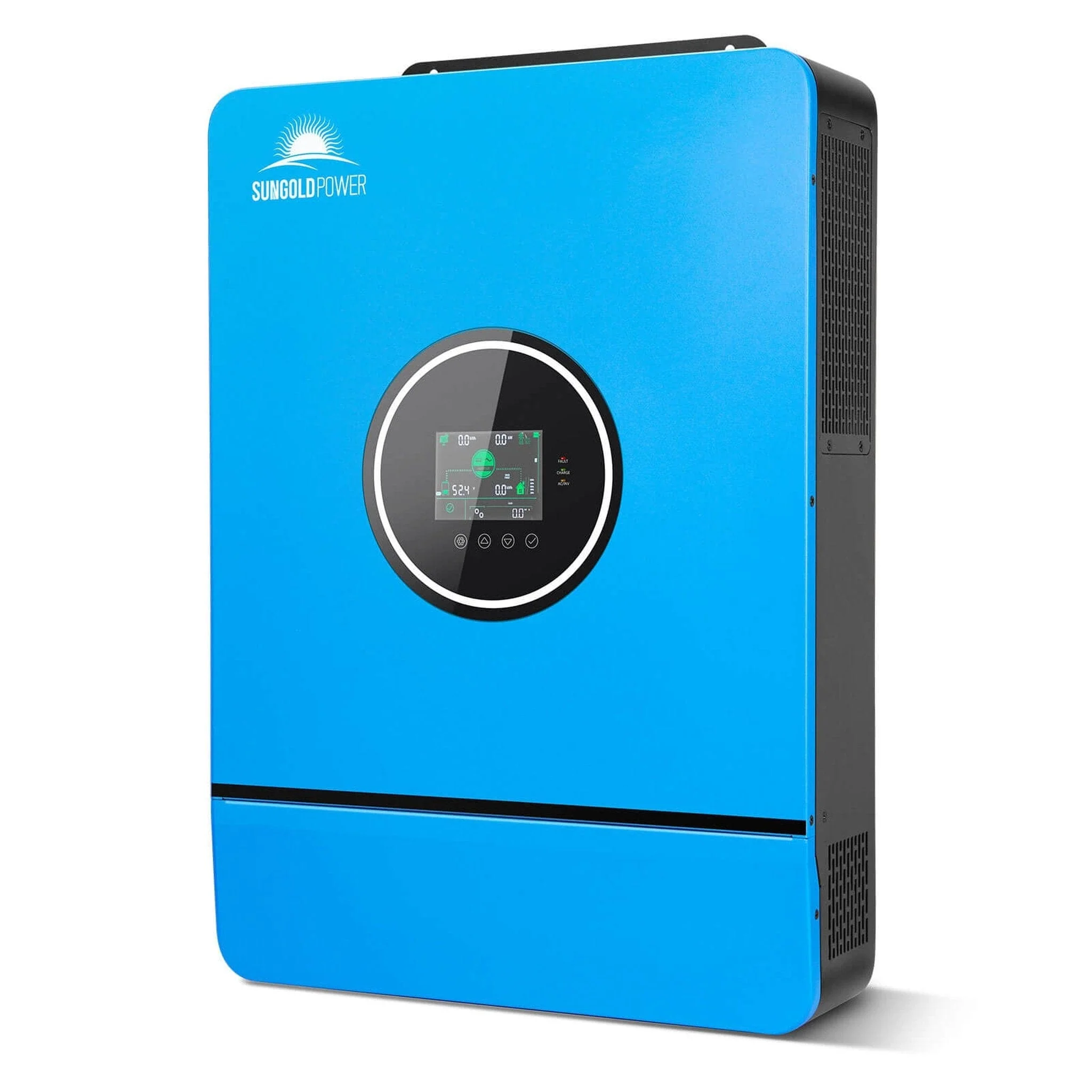

SunGoldPower SPH10048P — 10 kW 48V Split-Phase All-In-One Solar Inverter

The SunGoldPower SPH10048P is a powerful, all-in-one hybrid inverter system that combines solar conversion, battery charging, and control functions in a single unit. It supports both split-phase (120V/240V) and single-phase (120V) output, making it ideal for residential and commercial solar setups.

It’s designed for flexibility, scalability, and ease of installation, with built-in MPPT solar controllers, WiFi monitoring, parallel expansion, and robust protection features.

Key Features & Benefits

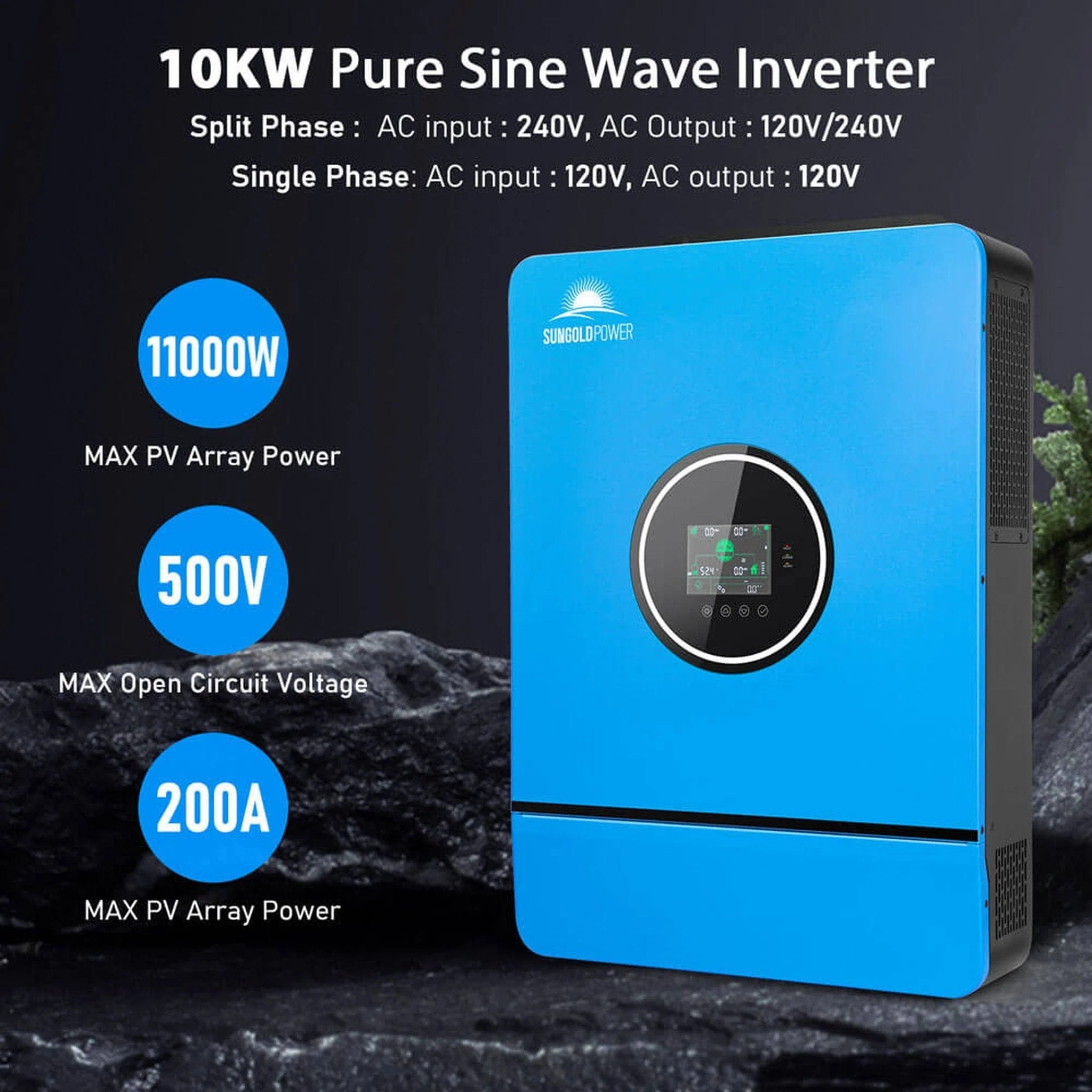

• Rated Power: 10,000 W (10 kW) continuous output

• Surge Capacity: Up to 20,000 W (for short peak loads)

• Dual MPPT Controllers: Two independent MPPT inputs; supports PV input power up to ~11,000 W

• Open-Circuit Voltage (Voc): Up to 500 V DC per MPPT

• Output Options: Supports split-phase 120V/240V or single-phase 120V output

• Parallel Expandable: Up to 6 units in parallel (for up to ~60 kW system)

• Battery Charging: Built-in charger with max current of 200 A

• Flexible Operating Modes: Hybrid, Utility Priority, Solar Priority, Solar-Only modes available

• Time-Slot Charging / Discharging: Allows scheduling of charge/discharge periods to align with utility rate structures

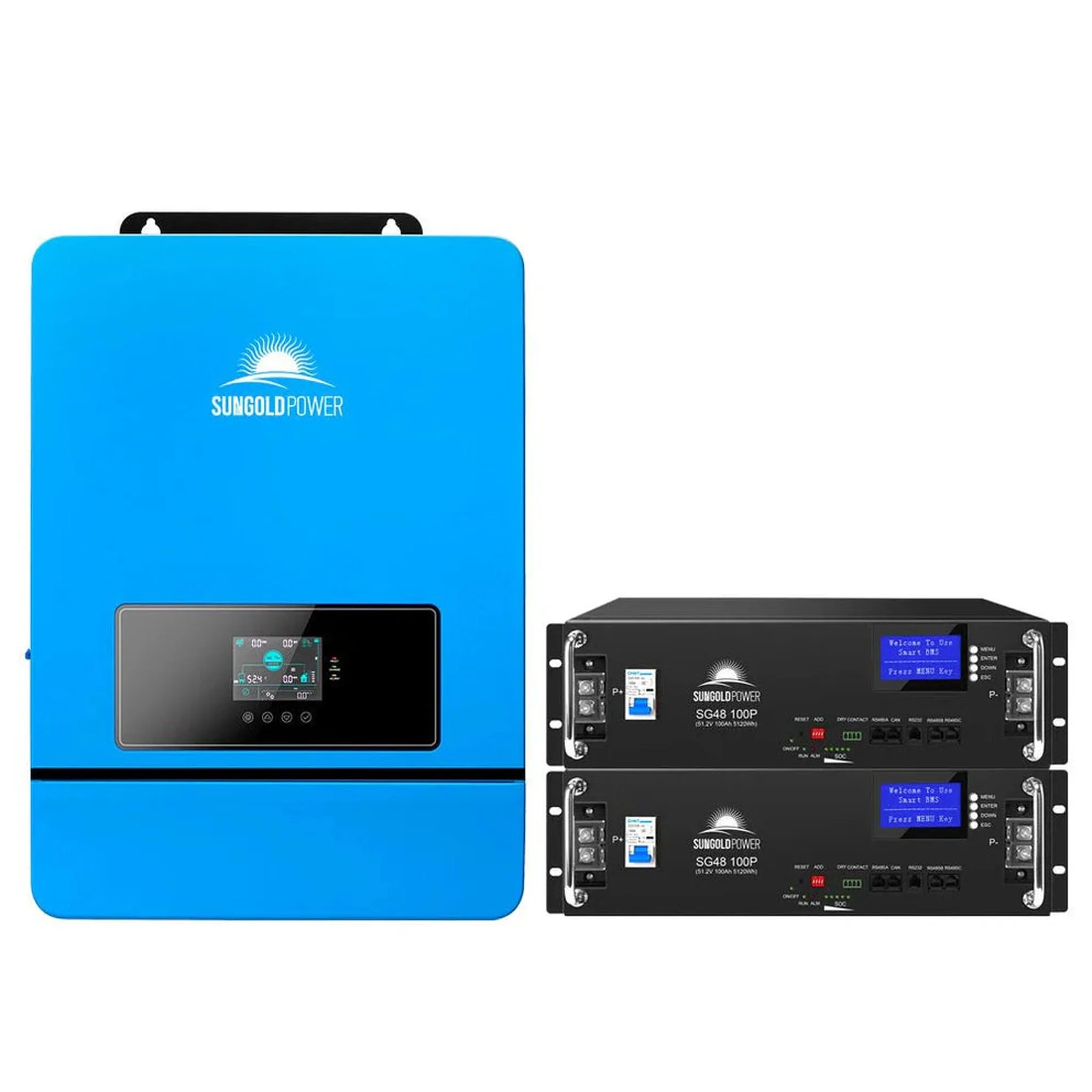

• Battery Compatibility: Works with 48V systems (AGM, Gel, Flooded, Lithium) and can support “battery-free activation” when battery is deeply discharged

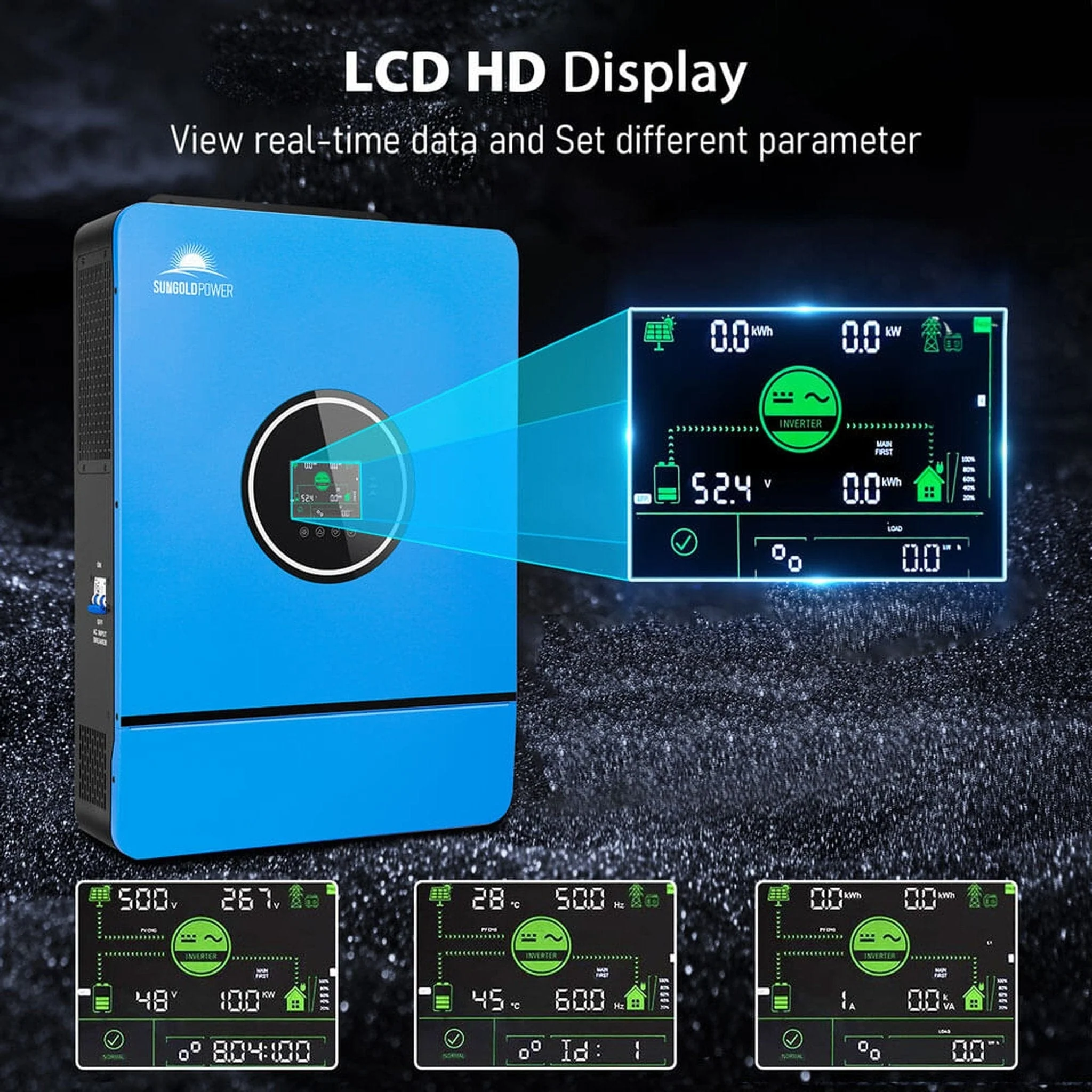

• Smart Monitoring: Includes WiFi module for real-time monitoring and control via mobile app

• Robust Protection: Built-in safeguards for over-voltage, over-current, overload, short circuit, reverse polarity, and more

• Efficiency: MPPT tracking efficiency ~99.9%, rated inverter efficiency ~92%

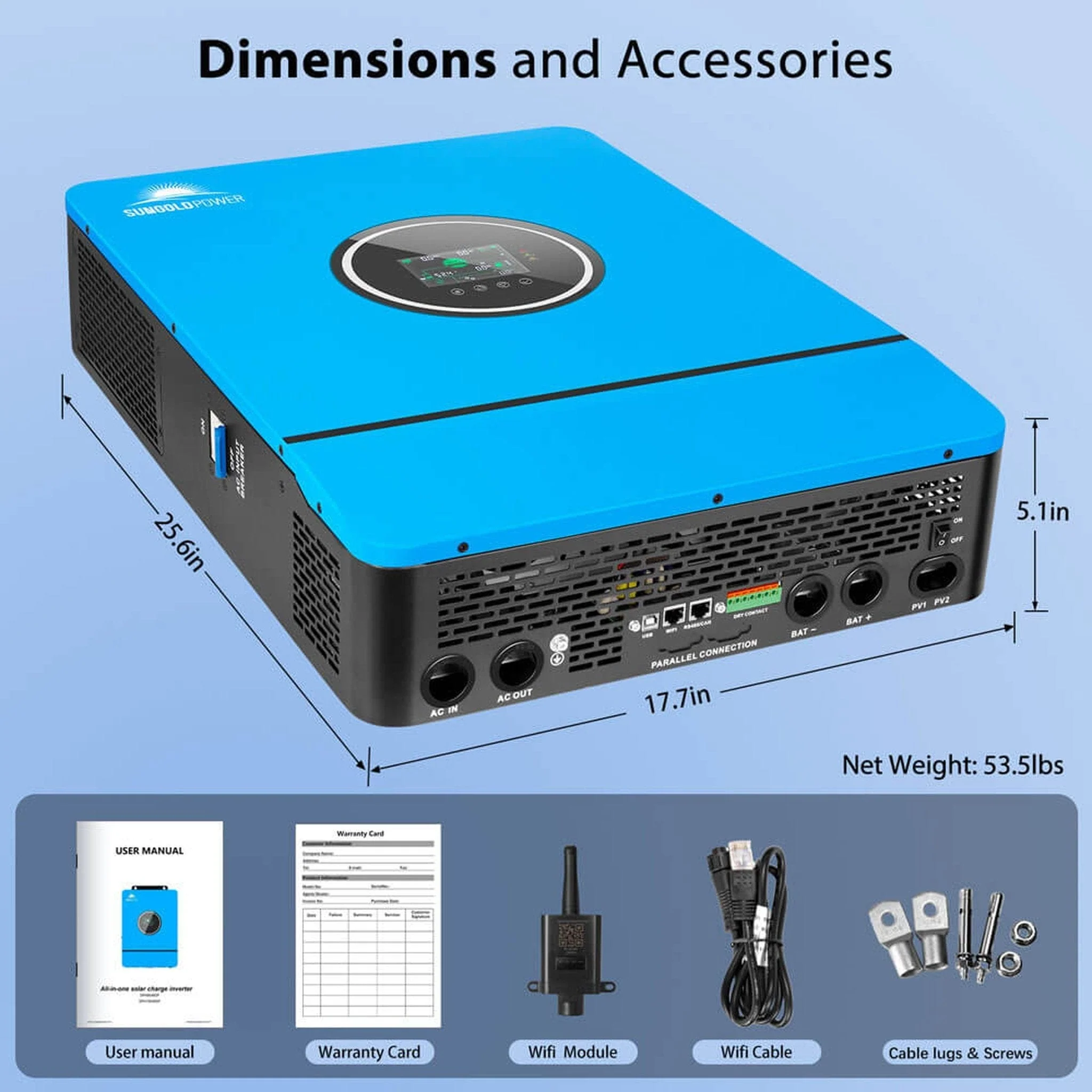

• Form Factor: Approx. 17.9 in × 26 in × 5.1 in (≈ 45.5 cm × 66 cm × 13 cm)

• Noise & Cooling: ≤ 60 dB noise, internal fan cooling

• Certifications: UL1741 listed, meets IEC safety & EMC standards

Why Choose This Inverter?

• All-in-One Simplicity
  No need for separate charge controllers or external gear—the SPH10048P integrates everything you need in a single package.

• Scalable & Future-Proof
  By paralleling up to 6 units, you can grow your system’s output as your load demands increase.

• Smart Energy Management
  Time-slot scheduling and multiple operating modes let you optimize performance based on usage and utility pricing.

• Flexible Deployment
  Use it for off-grid, hybrid, or grid-assisted setups, with both split-phase and single-phase support.

• Protection & Reliability
  Its built-in safety features guard your investment and provide peace of mind.

Document: Specification Sheet
