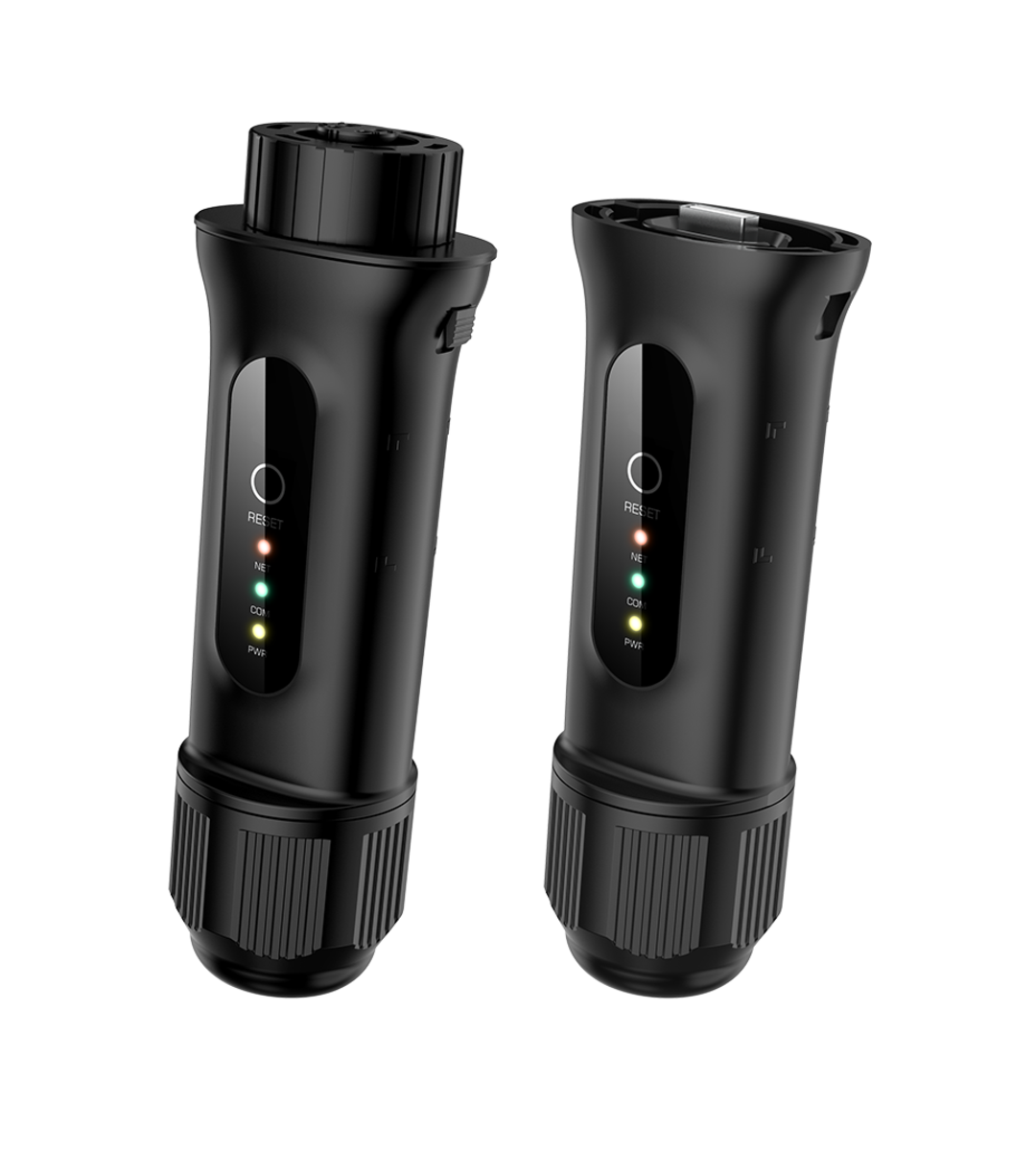

Solis Data Logging Stick - New Gen with SolisCloud Connectivity

Solis' new generation of communication tools now can be ordered with either touch-safe, plug-and-play 4-Pin connectors or with standard USB connectors. Applicable to areas covered by a Wi-Fi network or where a hardwire connection to the router is preferred, the new Solis Wi-Fi-LAN "sticks" ensure data collection is faster and more reliable. These unique communication tools remotely transmit PV plant operation data to the SolisCloud monitoring system in real time. Connected to the SolisCloud, system operators can conduct accurate and comprehensive data analysis with early warning fault processing. Owner / operators can issue control commands to inverters to achieve stable, reliable and intelligent PV plant O&M services.

Features

• Supports Wi-Fi and LAN communication
• Support Bluetooth nearby connection and debugging
• One button for instant data transmission and device configuration
• Simple plug-and play installation makes commissioning quick and easy
• Sends alarm notifications through text and email
• Intuitive LED indicator lights displays the operating status
• One-key assignment of inverter address, efficient and labor-saving


Specifications

• Communication Interface: 4 Pin/USB
• Supported Device: Solis inverter
• Data Collection Intervals: 5 min
• Status Indicator: LED x 3
• Wireless Communications: 802.11b/g/n (2.4G-2.483G)
• Configuration Method: App/Web
• Operating Voltage: 5 VDC (+/-5%)
• Operating Temperature: -30 to 65°C, -40 to 70°C (Storage)
• Humidity: 5-95% RH (Non-Condensing)
• Protection Degree: IP65
• Dimensions (4 Pin & USB): 125 mm (L) x 34 mm (W) x 49 mm (H)
• Installation Method: Insert + Screw (4 Pin), Insert + Lock (USB)
• Standards: CE, FCC
• Weight: 103 g (4 Pin), 89 g (USB)


Documents

• Specification Sheet
• Quick Installation Guide
