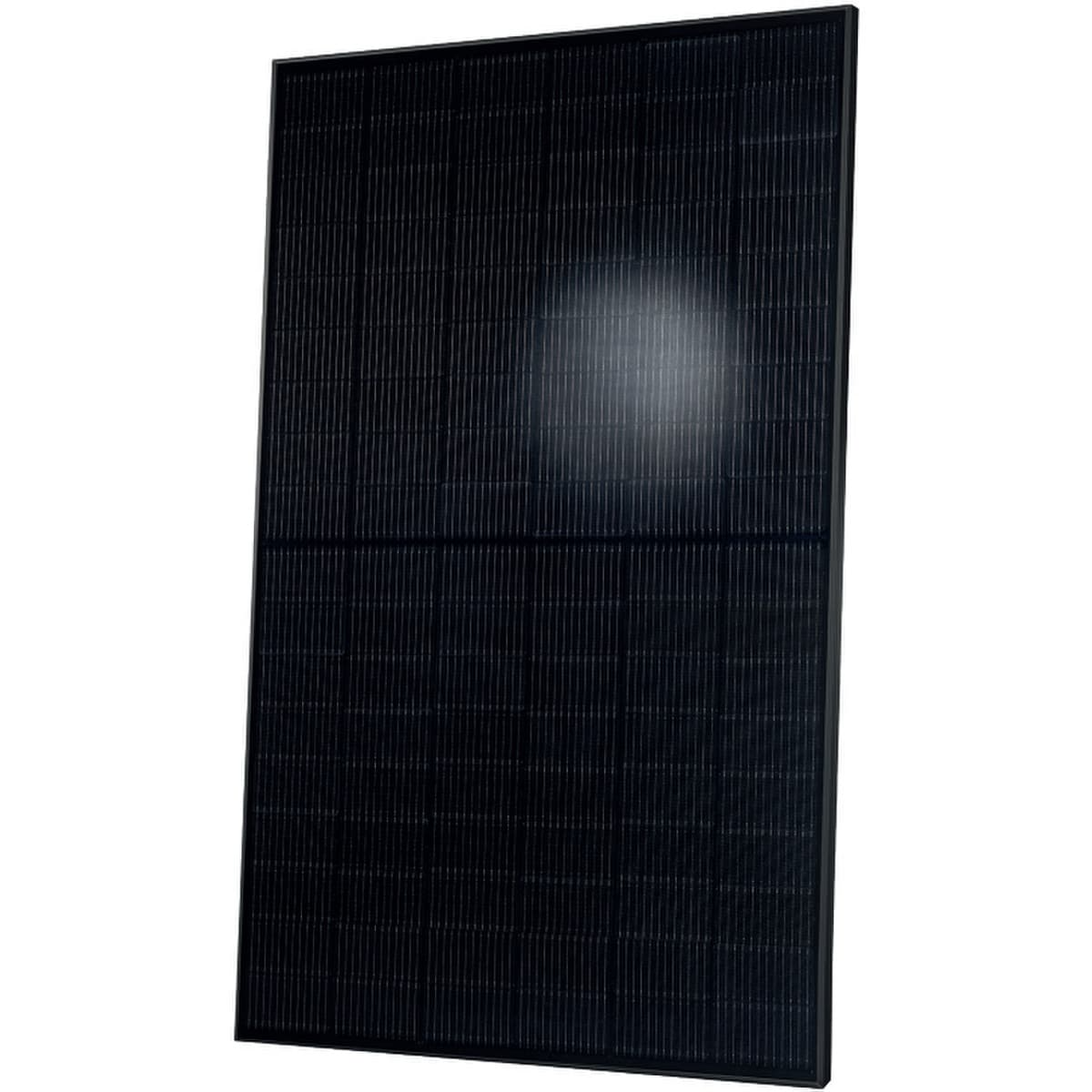

QCells Q.TRON BLK M-G2+ 425W, 108 Half Cut Q.ANTUM NEO cells, Gapless

QCells Q.TRON BLK M-G2+ 425W, 108 half cut Q.ANTUM NEO cells, gapless, black frame, black backsheet with MC4 connectors.

Features

• High performance Qcells N-type solar cells - Q.ANTUM NEO solar cell technology with zero gap cell layout boosts module efficiency up to 22.2 %
• A reliable investment -Inclusive 25-year product warranty and 25-year linear performance warranty
• Enduring high performance - Long-term yield security with Anti LeTID Technology, Anti PID Technology, Hot-Spot Protect
• Extreme weather rating -High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (3600 Pa)
• Innovative all-weather technology - Optimal yields, whatever the weather with excellent low-light and temperature behavior
• The most thorough testing programme in the industry - Qcells is the first solar module manufacturer to pass the most comprehensive quality programme in the industry: The new "Quality Controlled PV" of the independent certification - institute TÜV Rheinland

Specifications

• Cells Technology: Monocrystalline (Mono) Q.ANTUM NEO Solar Half Cell
• Number of Cells: 108 (6 x 18)
• Maximum Power (Pmax): 425 W at STC / 321.4 W at NMOT2
• Maximum Power Voltage (Vmp): 32.98 V at STC / 31.66 V at NMOT2
• Maximum Power Current (Imp): 12.88 A at STC / 10.15 A at NMOT2
• Open-Circuit Voltage (VOC): 38.67 V at STC / 36.69 V at NMOT2
• Short-Circuit Current (ISC): 13.49 A at STC / 10.87 A at NMOT2
• Maximum System Voltage (Vmax): 1000 V
• Maximum Reverse Current: 20 A
• Module Efficiency: 22.2%
• Frame Material: Anodized Aluminum
• Frame Color: Black
• Output Cables: 4 mm²
• Connector Type: Staubli MC4
• Fire Type: Class II / Type 2
• Maximum Design Load (Push/Pull): 3600/2400 Pa
• Maximum Test Load (Push/Pull): 5400/3600 Pa
• Operating Temperature: -40 to 85°C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.24%/K
• Temperature Coefficients of ISC: +0.04/K
• Nominal Operating Cell Temperature: 43 ± 3°C
• Junction Box: 53-101 mm x 32-60 mm x 15-18 mm, Protection Class IP67, with Bypass Diodes
• Power Output Tolerance: +5 W / -0 W
• Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
• Back Cover: Composite Film
• Standards: CE Certified, cETL Listed, US Listed, IEC Certified
• Warranty: 25 Years

Documents

• Specification Sheet
