Pylontech Pelio Stack

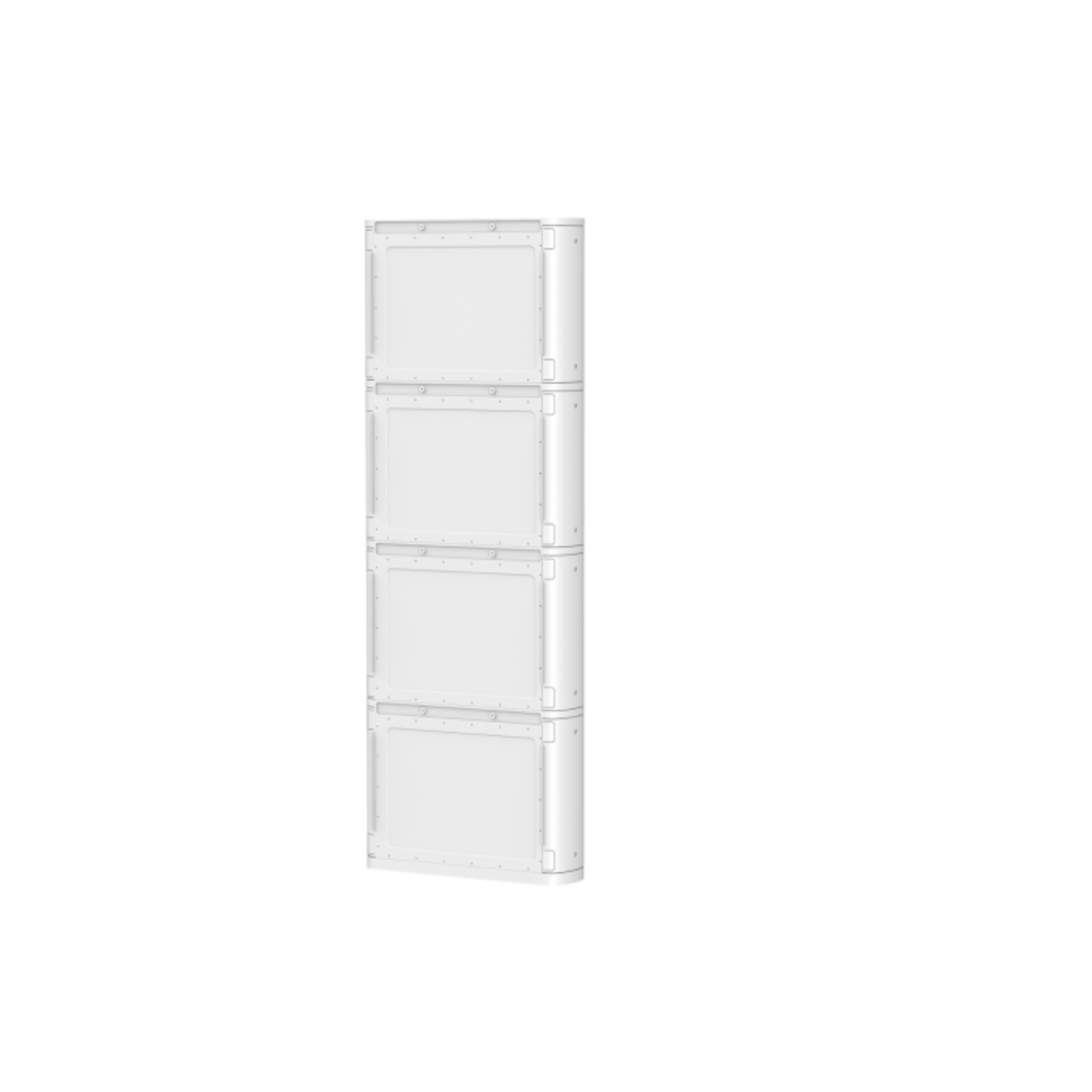

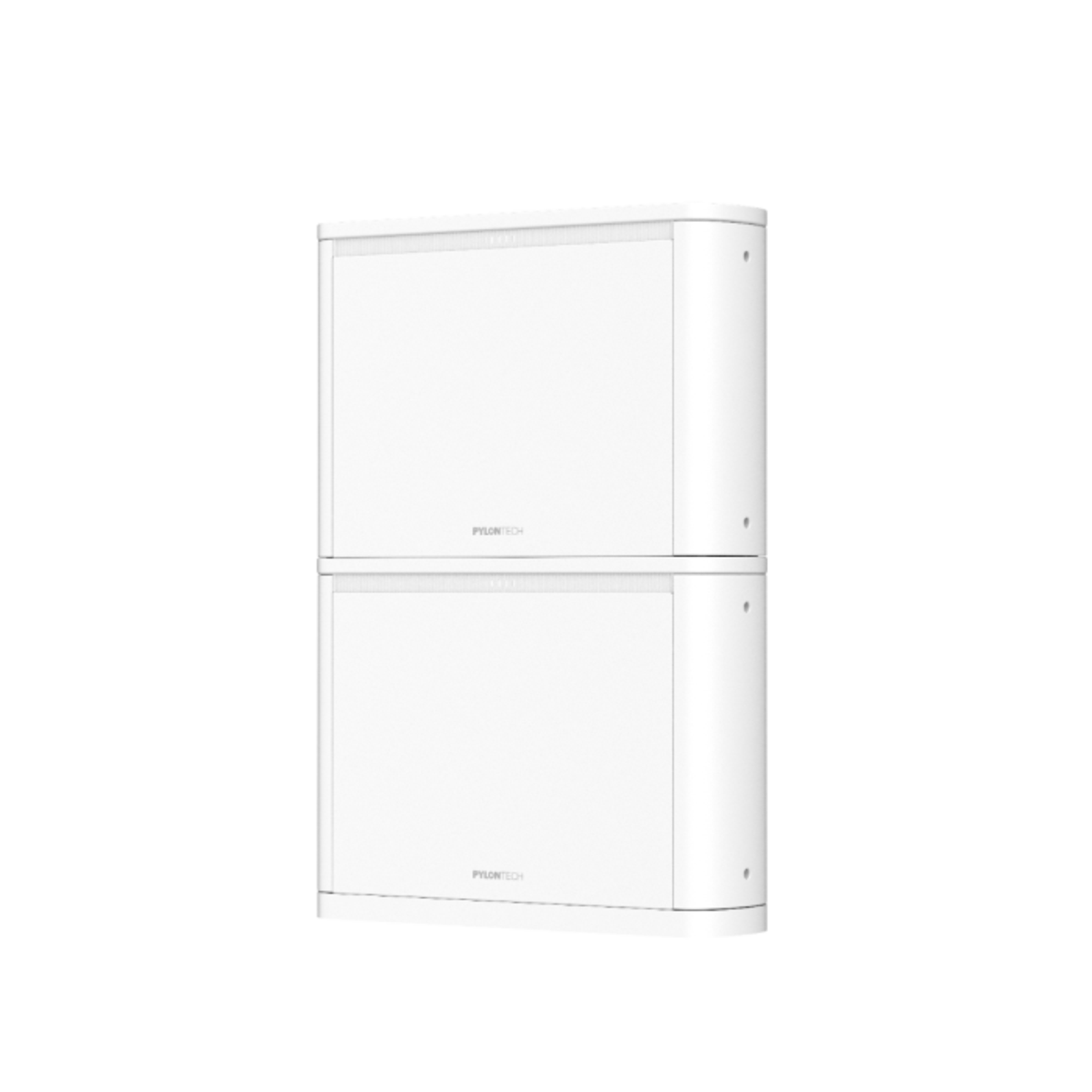

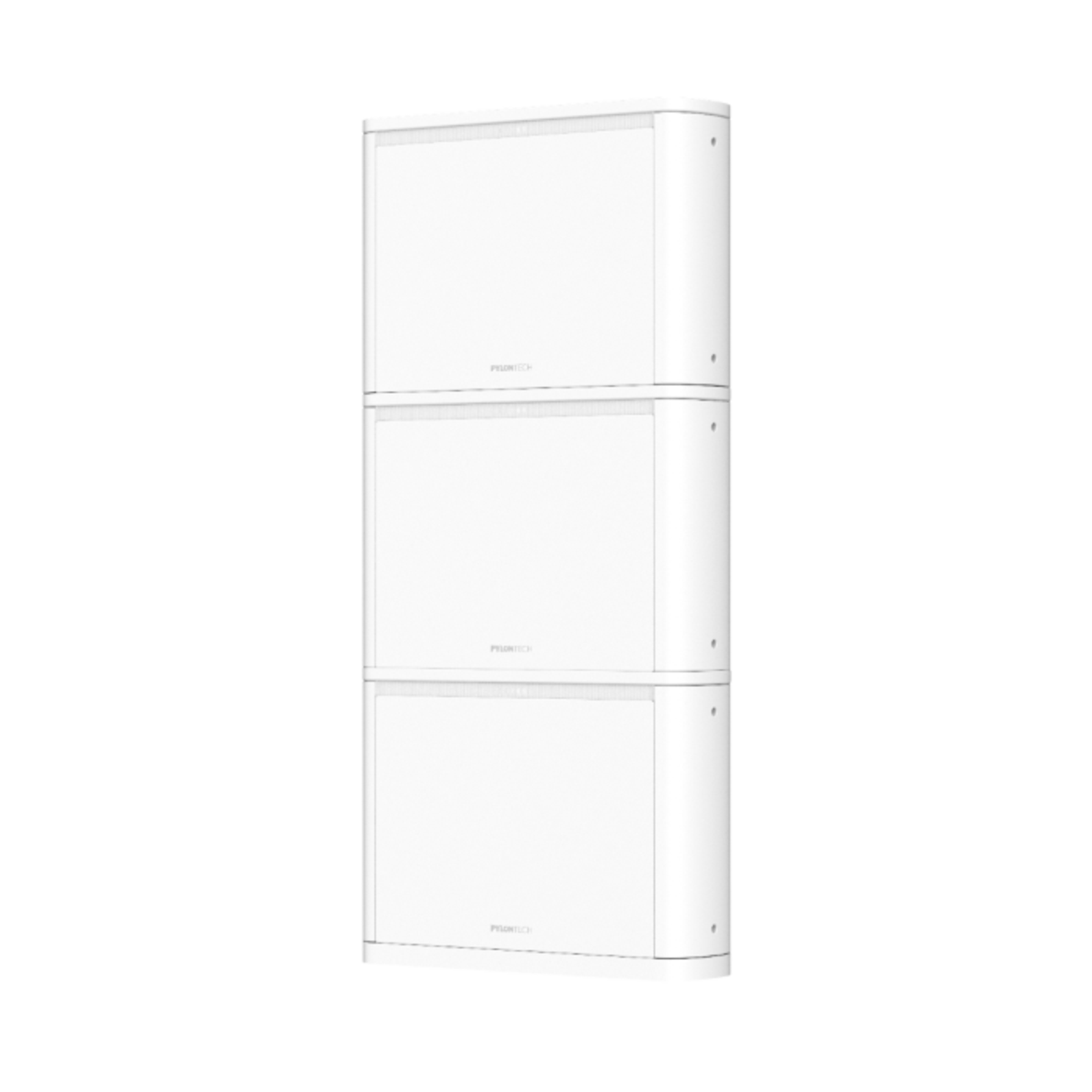

Pelio was specifically developed for modern residential properties that aims to provide users with more sufficient and reliable energy storage. It is slim and extremely light. The white steel color reflects the strong capability of holding energy. The battery can be easily installed on the floor or easily mounted on a wall and is expandable up to three (104 kWh). Ideal for large home and small commercial application.

Features

• High power efficiency - 5 kW continuous per single unit maximizes your ROL
• High energy density - High-energy-density cells. Lightweight but high-capacity
• 20 in parallel maximum
• IP65 - Indoor/outdoor installation. Smaller footprint. Save your valuable space


Specifications

• Nominal Voltage: 51.2 V
• Nominal Capacity: 5120 Wh (4824 Wh usable)
• Discharge Voltage Range: 44.8-56.8 V
• Charge Voltage Rating: 56-56.8 V
• Charge/Discharge Current:
  • Recommended: 80 A
  • Maximum (15 min): 100-120 A
  • Peak (15 sec): 120-200 A
• Communication Ports: RJ485, CAN
• Connectivity: Wi-Fi (2.4G), USB 2.0
• Depth of Discharge (DoD): 95%
• Configuration: 20 pcs
• Operating Temperature:
  • Charge: 0 to 50°C
  • Discharge: -10 to 50°C
• Shelf Temperature:
  • 0 to 40°C (6 months)
  • -20 to 45°C (3 months)
• Short Circuit Current: <4000 A at 2 ms
• Cooling Type: Natural
• Protective Class: I
• Enclosure/IP Rating: IP65
• Humidity: 5-95% RH (Non-Condensing)
• Altitude: <4000 m
• Design Life: 15+ years
• Cycle Life: >8000 cycles
• Standards Compliance: IEC62619, IEC63056, IEC62040, IEC62477-1, UL 1973, U1642, UL9540A, VDE2510-50, IEC61000-6-2, IEC61000-6-3, UN38.3
• Weight: 45 kg
• Dimensions: 395 mm (L) x 578 mm (W) x 165 mm (H)


Documents

• Specification Sheet
•  Instruction/Installation Manual
