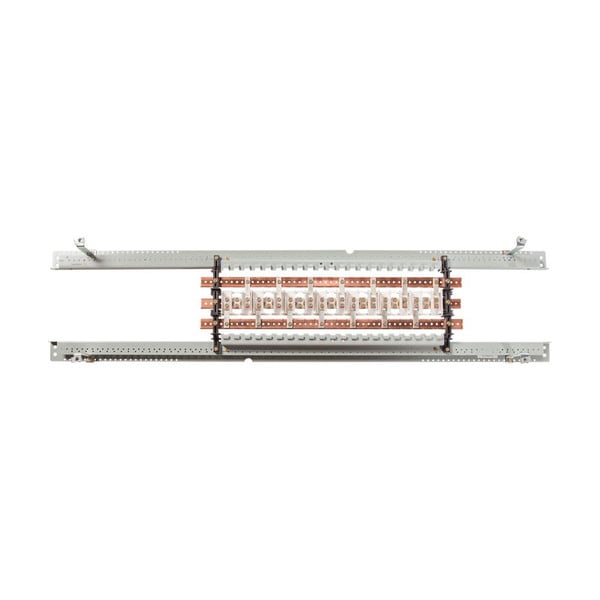

PRL1X1400X42CS - Eaton PRL1X Interior No TFL 120/240 1P 3W 400A 42 CKT Cu Bus

The Eaton PRL1X Interior No TFL 120/240V 1P 3W 400A 42 CKT Cu Bus is a robust and adaptable solution designed for modern electrical distribution systems. Engineered to accommodate single-phase, three-wire configurations, this interior panelboard offers flexibility and reliability across various applications. It integrates seamlessly into Eaton's Pow-R-Xpress panelboards, providing a straightforward approach for upgrading or installing main circuit breakers. Constructed with durable copper bus bars and adhering to UL 67 standards, this kit guarantees long-lasting performance and safety compliance.

Key Features:

• Type: PRL1X Interior Panelboard
• Amperage Rating: 400 Amps
• Voltage Rating: 120/240 Volts AC
• Phase Configuration: Single-phase, three-wire (1P 3W)
• Number of Circuits: 42
• Bus Material: Copper
• Dimensions: 6.25 in (H) x 18.5 in (W) x 43.5 in (L)
• Weight: Approximately 150 lbs
• Certifications: UL 67 compliant
• Enclosure Type: NEMA 1 (indoor use)
• Compatibility: Designed for use with Eaton Pow-R-Xpress panelboards

This interior panelboard is a critical component to enhance the safety and efficiency of your electrical distribution setup, ensuring reliable protection and adaptability for diverse electrical infrastructures.

Documents:

Brochures
Pow-R-Xpress stocking program flyer

Specifications and datasheets
Eaton Specification Sheet - PRL1X1400X42CS
