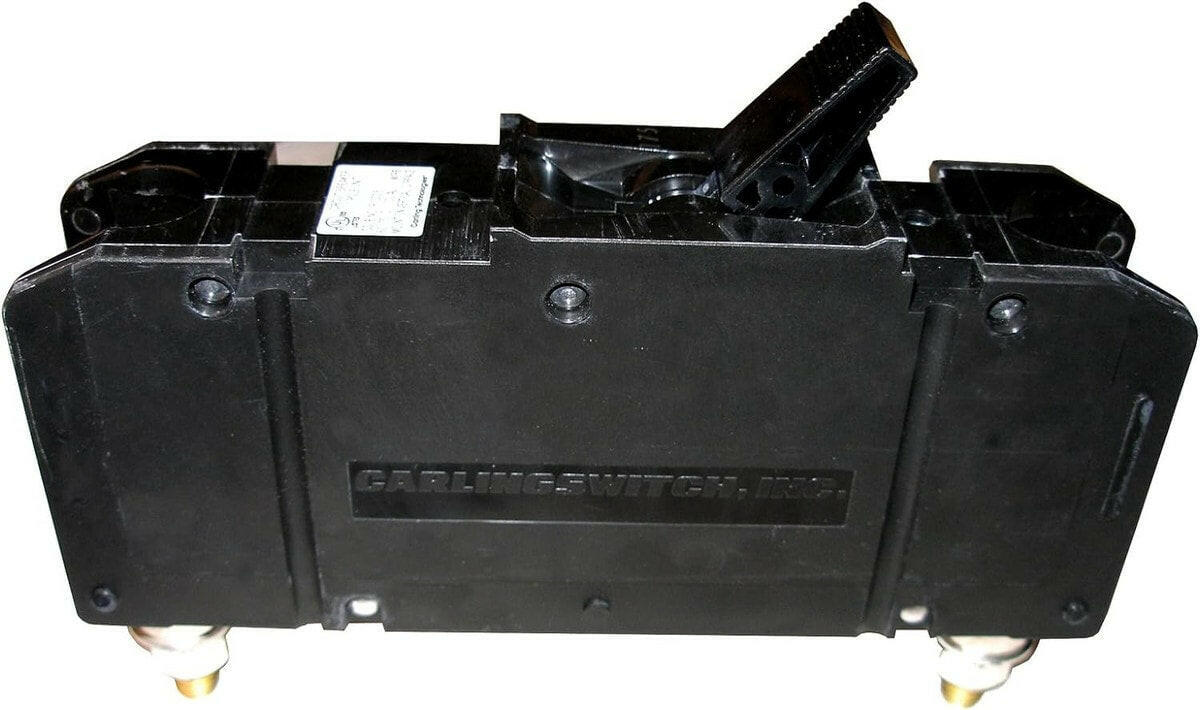

Midnite Solar 125VDC 250A Panel Mount Breaker (SKU Part Number MNEDC250)

Midnite's breakers are rated to break the full rated load at the rated voltage repeatedly, with no damage. always use a properly sized breaker for disconnecting.

Features

• All midnite circuit breakers can be used at 100% rated current when mounted in a midnite enclosure
• Non polarized


Specifications

• Voltage Rating: 125 VDC
• Current Rating: 250 A
• Mounting Type: Panel
• Terminals: 3/8 in Stud
• Branch Circuit: 50 KAIC
• Torque Rating: 15 ft-lb
• Enclosure Rating: Type 1
• Includes: (2) 10-32 X 3/8 Pan Head Phillips Mounting Screws
• Warranty: 5 Years
• Dimensions: 11.5 in Height x 1.5 in Width x 7.25 in Depth
• Weight: 2.32 lb


Documents

• Specification Sheet
