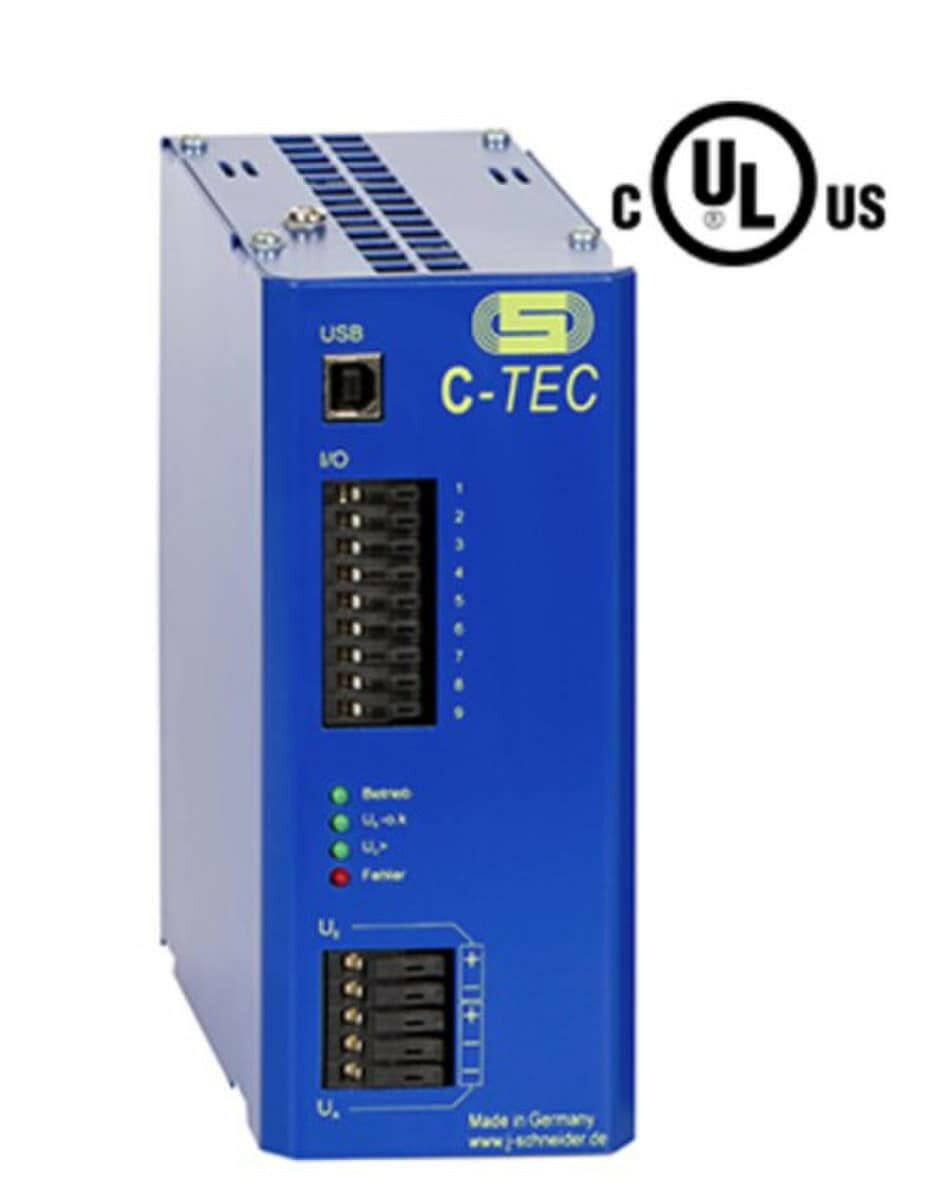

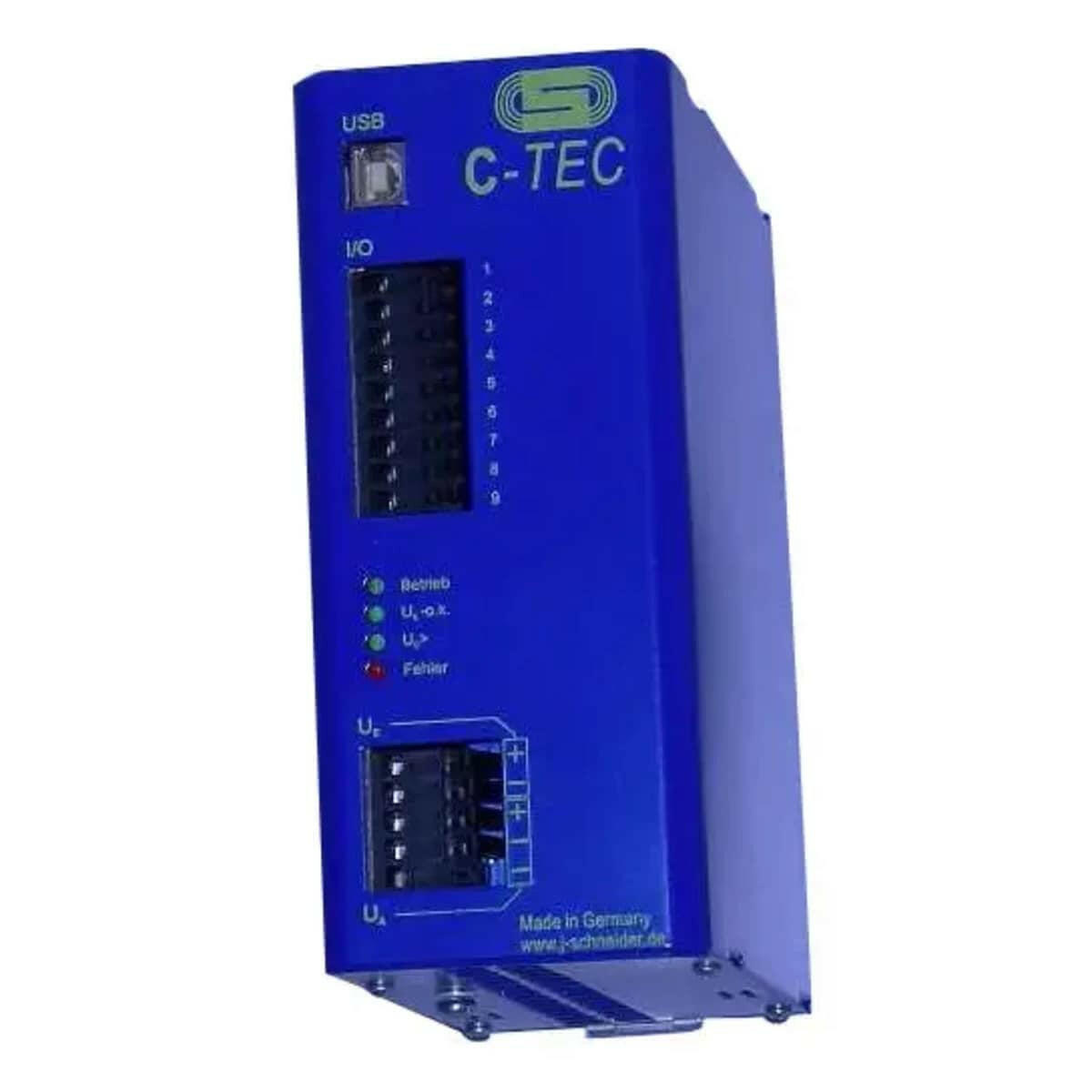

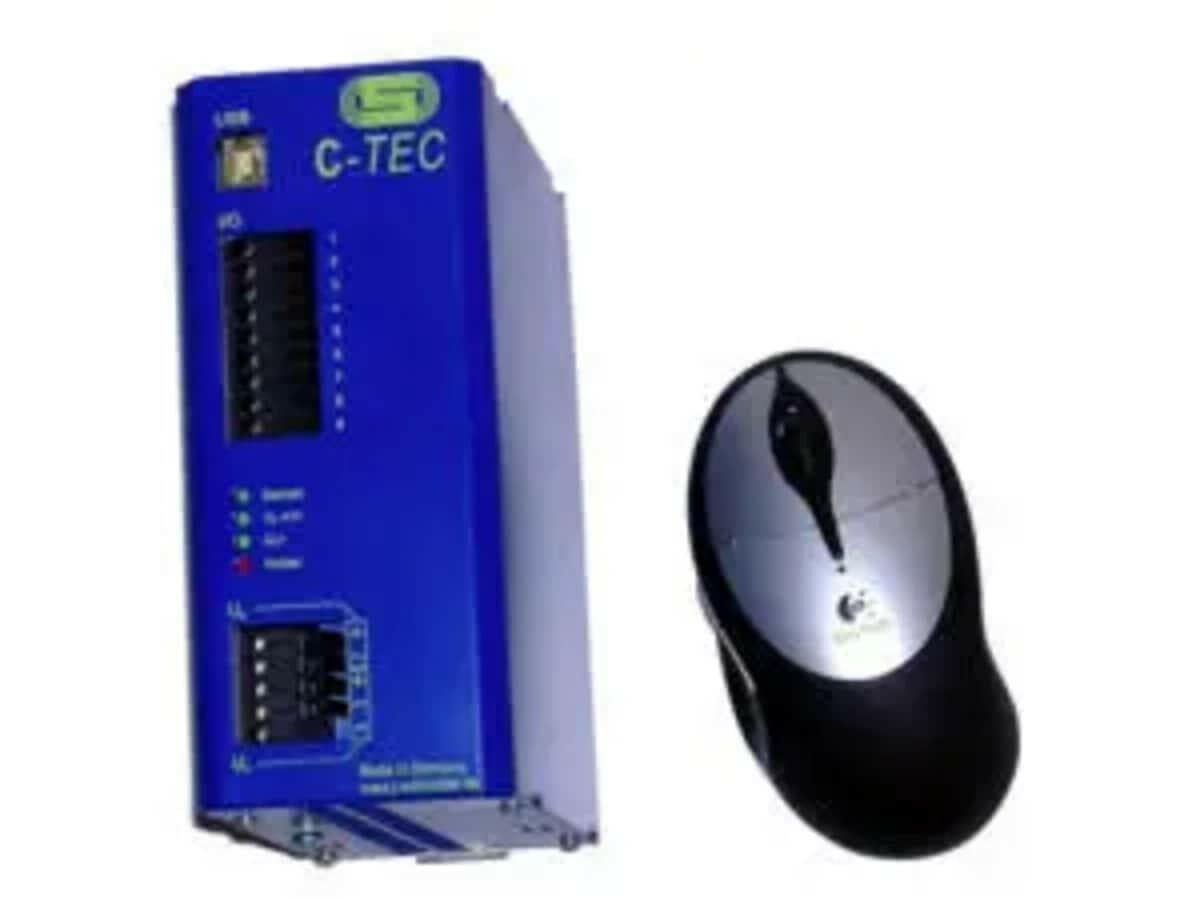

J.Schneider Elektrotechnik 70 mm 165 mm DC UPS with Ultracapacitor

The DC-UPS of the series C-TEC includes ultra-capacitors as energy storage inside the housing. This capacitor is charged with the system voltage (Ue) during normal operation. The connected loads are supplied as well from the system voltage. In case of an interruption of the system voltage the energy of the ultra-capacitors is released in a regulated way. With a dc/dc converter, the load is supplied by the capacitor until it is discharged. The backup time depends on the state of charge of the capacitor and on the discharge current.

Features

• Maintenance-free because of long-life ultra-capacitors
• Microcontroller based charging and discharging of the ultra-capacitors
• Parameterizable via USB interface
• Control of operation and status of charge with LED's compatible with the TECControl-Software
• Operating and charging status monitoring via LEDs
• Superfast charging due to active charging current control
• IPC management due to shutdown function triggered by time and output current
• Numerous customer-specific parameterisation options via USB interface


Specifications

• Type: With Ultracapacitor
• Width: 70 mm
• Height: 165 mm
• Depth: 145 mm
• Input Voltage: 12/24 Vdc
• Input Amperage Rating: 10 A
• Output Voltage: 11.7/23.2 Vdc
• Output Amperage: 10 A dc
• Efficiency: >90%
• Enclosure Rating/IP Rating: IP20
• Temperature Rating: -40 to 60 deg C
• Standards: EN 50178, EN 60950, UL 508, C22.2 Nr.107-01


Documents

• Specification Sheet
