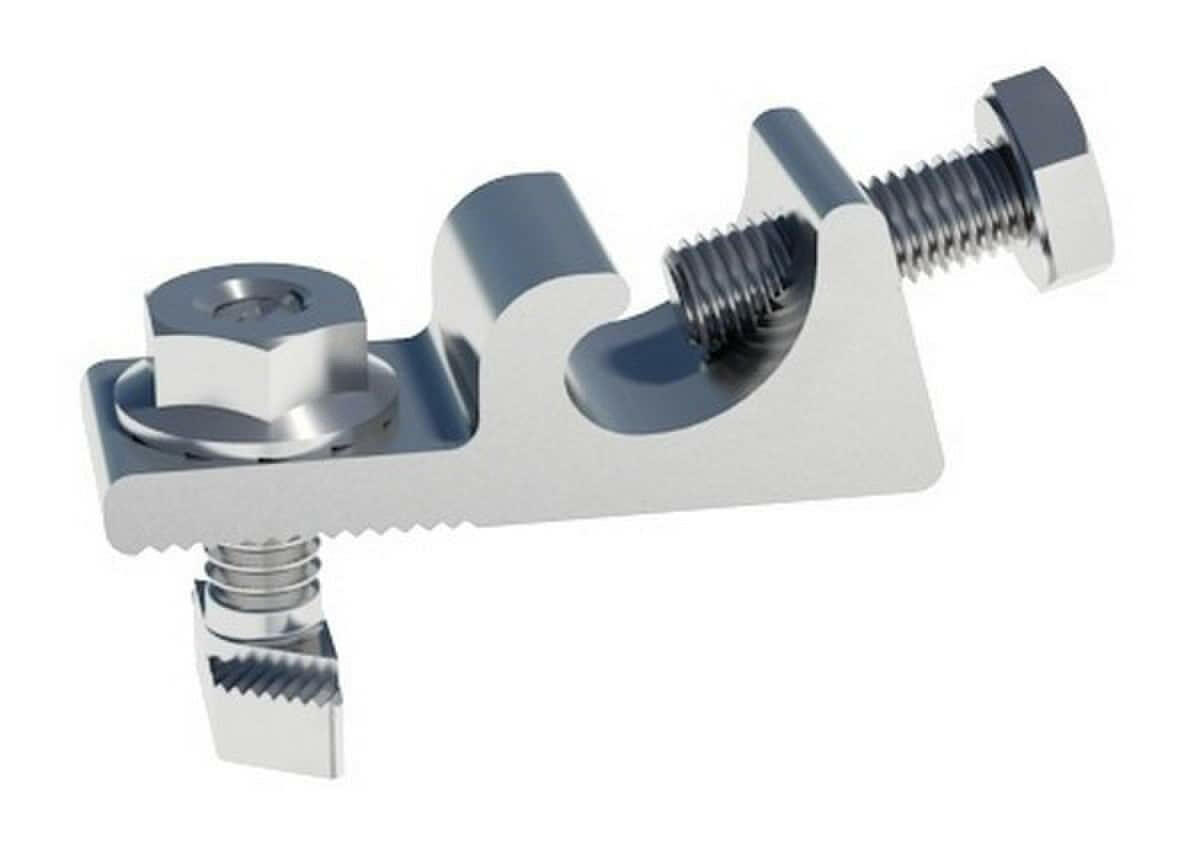

IronRidge Grounding Lug (SKU Part Number XR-LUG-03-A1)

The XR-LUG-03-A1 Ironridge XR Series Grounding Lug. Low Profile, with 1/4 in T-Bolt and nut, UFO series. With Ironridge, an entire row of PV modules is connected to the grounding conductor by a single Grounding Lug positioned on just one of the rails. This is because unlike many rooftop systems, Ironridge is certified as a bonded electrical pathway. No jumpers, bonding straps, or lugs for every rail - Ironridge makes it more elegant than that.

Features

• A single grounding lug connects an entire row of PV modules to the grounding conductor
• Safety - All components evaluated for superior structural performance. UL 2703 system eliminates separate module grounding components
• Efficiency - Pre-stamped engineering letters available in most states. Online software makes it simple to create, share, and price projects
• User Friendly - Lightweight and compatible with industry-standard attachments


Specifications

• Type: Low Profile
• Includes: 1/4 in T-Bolt & Nut
• Wire Range: 4-10 AWG
• Material: Tin Plated Copper
• Finish: Clear Matte
• Standards: UL Listed
• Warranty: 25 Years Limited
