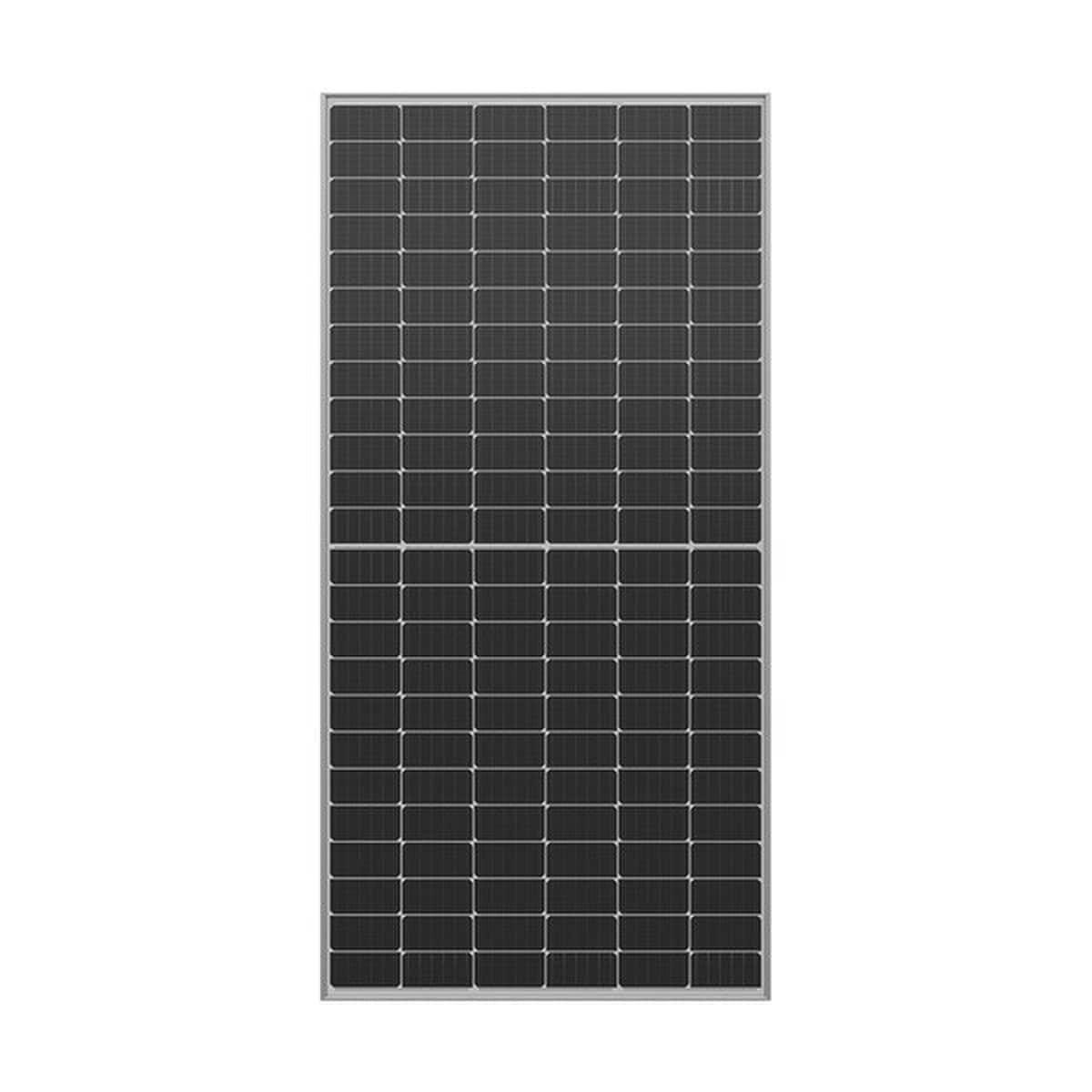

Hanwha Q Cells Q.PEAK DUO L-G6.2 425 425w Mono Solar Panel

The new high-performance module Q.PEAK DUO L-G6 is the ideal solution for commercial and utility applications thanks to a combination of its innovative cell technology Q.ANTUM and cutting edge cell interconnection. This 1000 V IEC/UL solar module with its 6 busbar cell design ensures superior yields with up to 415 Wp while having a very low LCOE. These modules are backed by a 12-year warranty on workmanship and a 25-year linear performance warranty. Manufactured in Korea with MC4-type connectors.

Features

• Q.Antum Technology: Low Levelized Cost of Electricity - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.1 %
• Innovative All-Weather Technology- Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Enduring High Performance - Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™
• Extreme Weather Rating - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa)
• A Reliable Investment - Inclusive 12-year product warranty and best in class 25-year performance guarantee
• State of the Art Module Technology - Q. ANTUM DUO combines cutting edge cell separation and innovation wiring with Q.ANTUM technology


Specifications

• Series/Model: Q.Peak DUO
• Length: 2080 mm
• Width: 1030 mm
• Height: 35 mm
• Cells Technology: Monocrystalline Q.Antum Solar Half
• Number of Half Cells: 144 (6 x 24)
• Maximum Power (Pmax): 425 W STC/318.1 W NOCT
• Maximum Power Voltage (Vmp): 41.2 V STC/39.17 V NOCT
• Maximum Power Current (Imp): 10.32 A STC/8.12 A NOCT
• Open-Circuit Voltage (VOC): 49.13 V STC/46.33 V NOCT
• Short-Circuit Current (Isc): 10.83 A STC/8.73 A NOCT
• Maximum System Voltage: 1500 V (UL & IEC)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: ≥19.8%
• Frame Material: Anodized Aluminum
• Frame Color: Silver
• Backsheet Color: White
• Irradiance: 1000 W/m² STC/800 W/m² NOCT
• Output Cables: 4 mm² Solar Cable, (+) ≥55.1 in (1400 mm), (−) ≥55.1 in (1400 mm)
• Connector Type: Staubli MC4-Evo2, Hanwha Q CELLS HQC4, Amphenol UTX, Renhe 05-8, JMTHY JM601A, Tongling Cable01S-F, IP68 or Friends PV2e, IP67
• Fire Type: Class C (IEC)/Type 2 (UL)
• Maximum Design Load (Push/Pull): 3600/1600 Pa
• Maximum Test Load (Push/Pull): 5400/4000 Pa
• Operating Temperature: -40 to 185 °F
• Cell Temperature: 25 °C ±2% STC
• Temperature Coefficients of Pmax: -0.36%/°K
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.27%/°K
• Temperature Coefficients of Isc: 0.04%/°K
• Nominal Operating Cell Temperature: 43 ±3 °C
• Air Mass (AM): 1.5 STC/1.5 NOCT

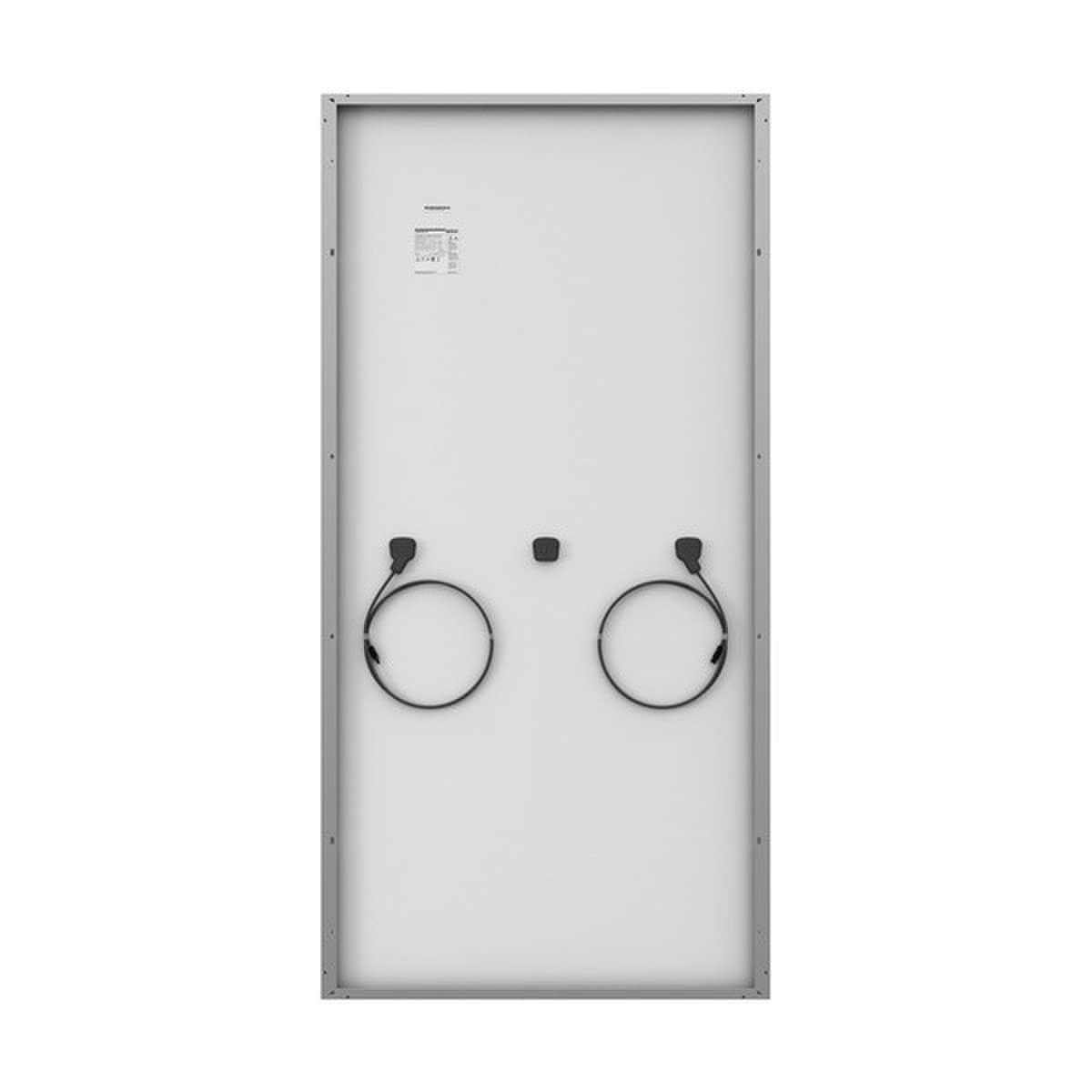

• Junction Box: 2.09-3.98 x 1.26-2.36 x 0.59-0.71 in (53-101 x 32-60 x 15-18 mm), Protection Class IP67 Rated, with Bypass Diodes
• Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
• Back Cover: Composite Film
• Standards: UL 1703, CE-Compliant, IEC 61215:2016, IEC 61730:2016, U.S. Patent No. 9,893,215 (Solar Cells), DVE, CE, CSA, cUS, Class II
• Warranty: 12 Years Product, 25 Years Linear Performance
• Weight: 25 kg
• Application: Rooftop Arrays on Commercial/Industrial Buildings, Ground-Mounted Solar Power Plants
