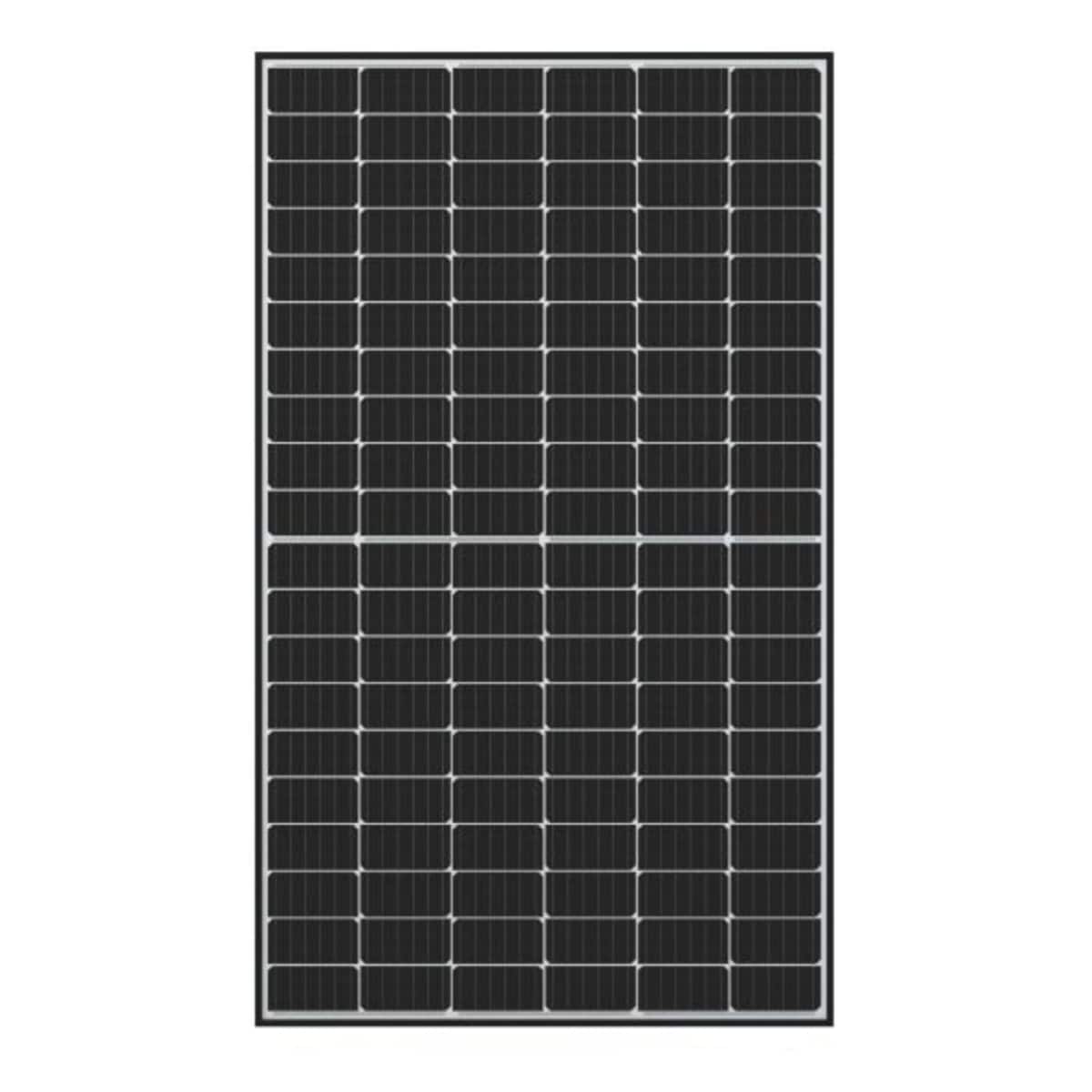

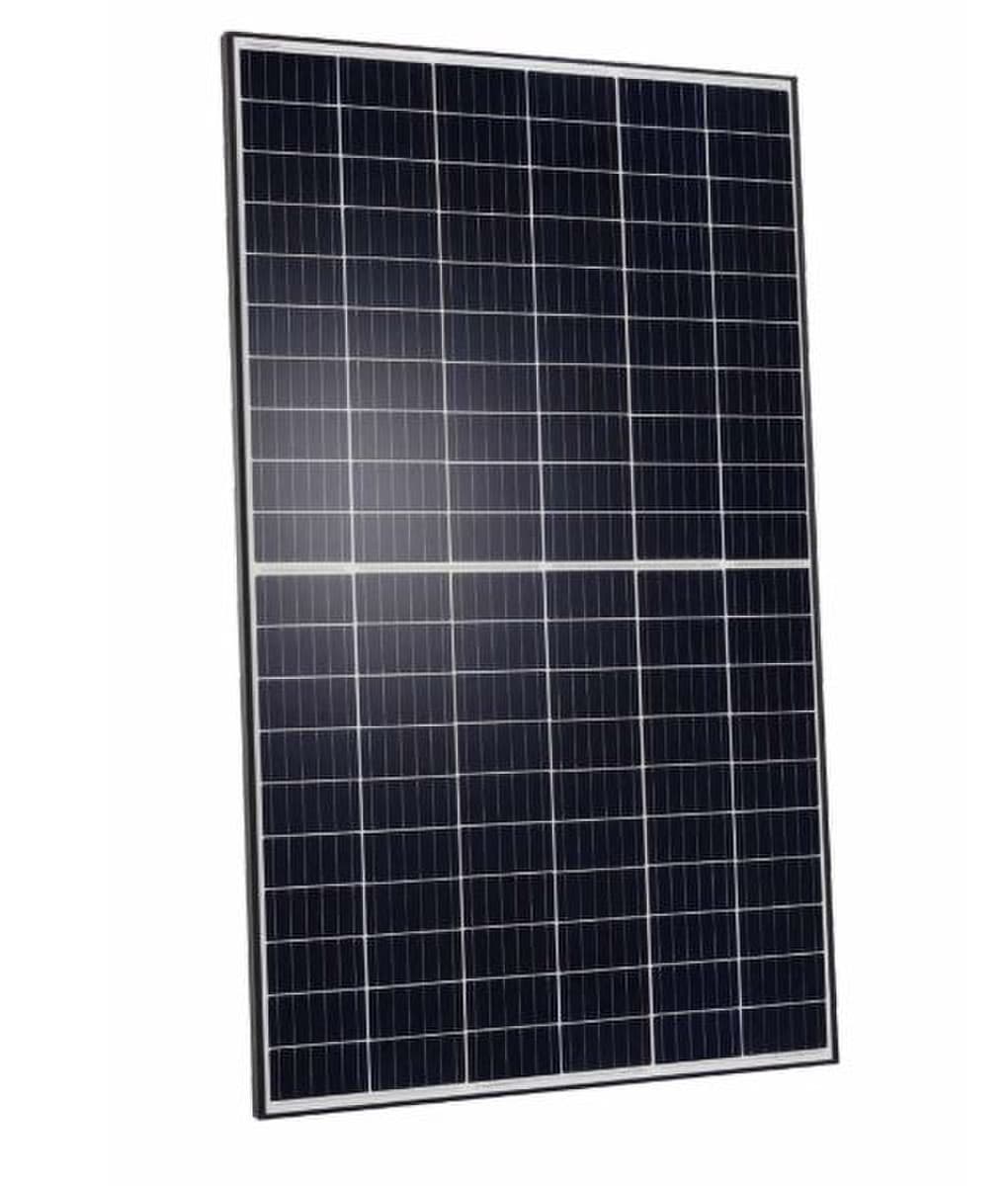

Hanwha Q Cells Q.PEAK DUO-G6+ 350 350w Mono Solar Panel

This high-efficiency module is backed by Q.Cells trademark Q.ANTUM cell technology, which is what powers their solar panels to produce a higher energy yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.5%.

Features

• Q.Antum Technology: Low Levelized Cost of Electricity - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.4 %
• Innovative All-Weather Technology- Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Enduring High Performance - Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™
• Extreme Weather Rating - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa)
• A Reliable Investment - Inclusive 25-year product warranty and 25-year linear performance warranty
• State of the Art Module Technology - Q. ANTUM DUO combines cutting edge cell separation and innovation wiring with Q.ANTUM technology


Specifications

• Series/Model: Q.Peak DUO
• Length: 1740 mm
• Width: 1030 mm
• Height: 32 mm
• Cells Technology: Monocrystalline Q.Antum Solar Half
• Number of Half Cells: 120 (6 x 20)
• Maximum Power (Pmax): 350 W STC/261.9 W NOCT
• Maximum Power Voltage (Vmp): 34.07 V STC/32.4 V NOCT
• Maximum Power Current (Imp): 10.27 A STC/8.09 A NOCT
• Open-Circuit Voltage (VOC): 40.73 V STC/38.41 V NOCT
• Short-Circuit Current (Isc): 10.79 A STC/8.69 A NOCT
• Maximum System Voltage: 1000 V (IEC)/1000 V (UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: ≥19.5%
• Frame Material: Anodized Aluminum
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000 W/m² STC/800 W/m² NOCT
• Output Cables: 4 mm² Solar Cable, (+) ≥45.3 in (1100 mm), (-) ≥45.3 in (1100 mm)
• Connector Type: Staubli MC4, IP68
• Fire Type: Type 2
• Maximum Design Load (Push/Pull): 3600/2667 Pa
• Maximum Test Load (Push/Pull): 5400/4000 Pa
• Operating Temperature: -40 to 185 °F
• Cell Temperature: 25 °C ±2% STC
• Temperature Coefficients of Pmax: -0.36%/°K
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.27%/°K
• Temperature Coefficients of Isc: 0.04%/°K
• Nominal Operating Cell Temperature: 43 ±3 °C
• Air Mass (AM): 1.5 STC/1.5 NOCT
• Junction Box: 2.09-3.98 x 1.26-2.36 x 0.59-0.71 in (53-101 x 32-60 x 15-18 mm), Protection Class IP67 Rated, with Bypass Diodes
• Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
• Back Cover: Composite Film
• Standards: UL 1703, CE-Compliant, IEC 61215:2016, IEC 61730:2016, DVE, CE, CSA, cUS, Class II
• Warranty: 25 Years Product, 25 Years Linear Performance
• Weight: 19.9 kg
• Application: Rooftop Arrays on Residential, Commercial/Industrial Buildings

Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information
