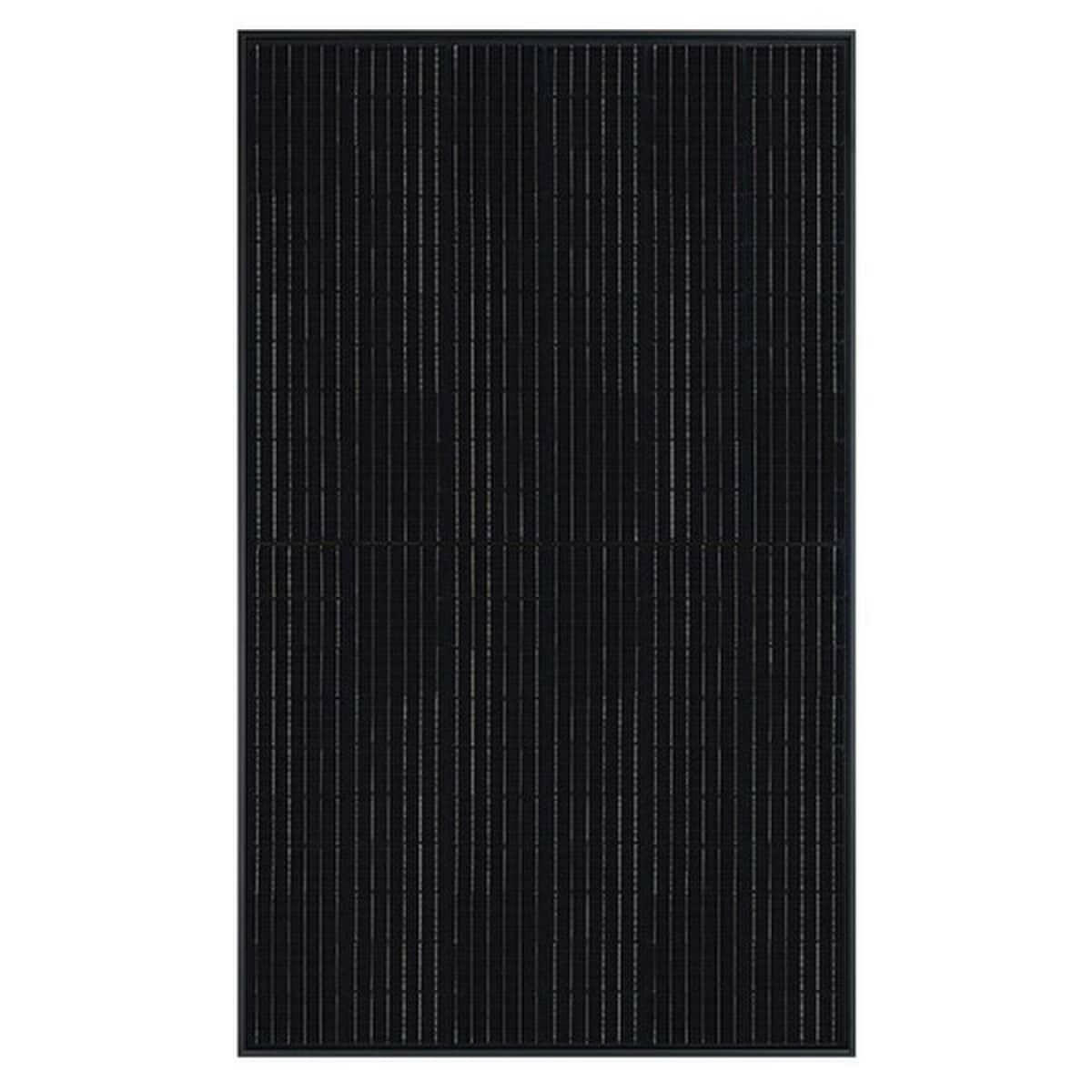

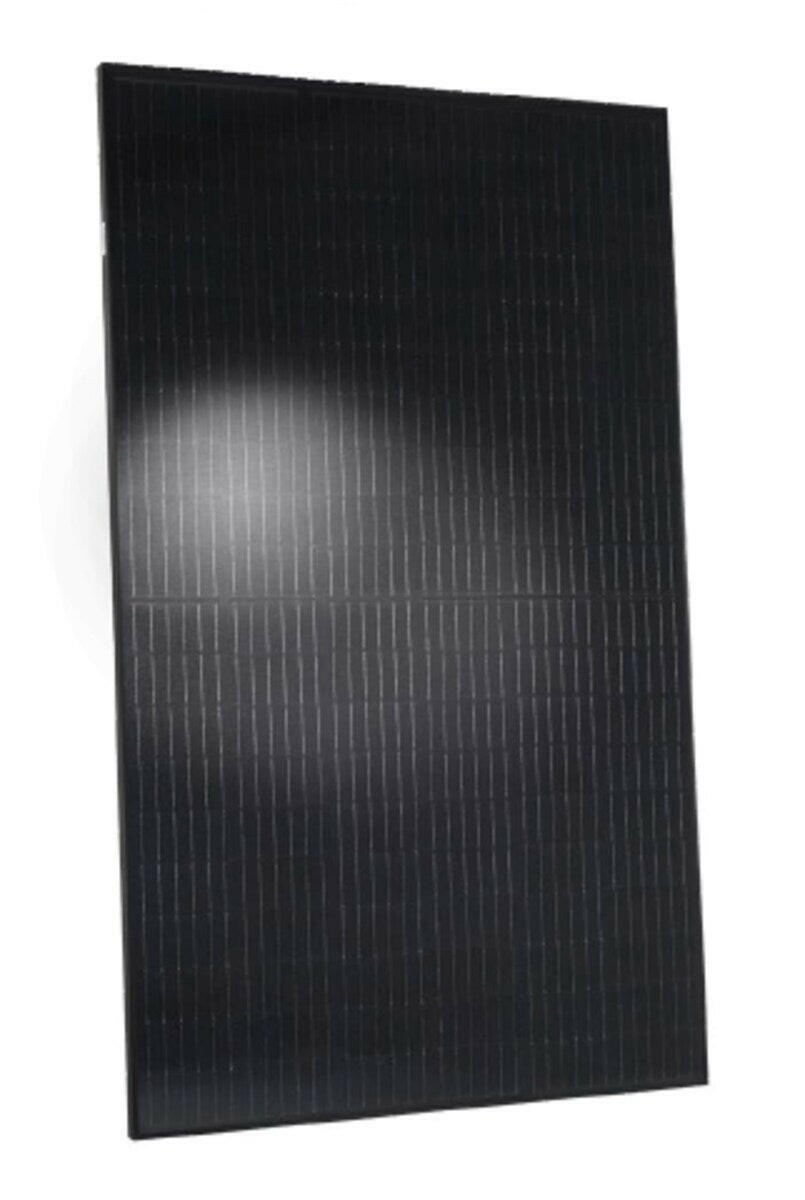

Hanwha Q Cells Q.PEAK DUO-G6+ 335 335w Mono Solar Panel

This high-efficiency module is backed by Q.Cells trademark Q.ANTUM cell technology, which is what powers their solar panels to produce a higher energy yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.5%.

Features

• Q.Antum Technology: Low Levelized Cost of Electricity - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.5 %
• Innovative All-Weather Technology- Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Enduring High Performance - Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™
• Extreme Weather Rating - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa)
• A Reliable Investment - Inclusive 25-year product warranty and 25-year linear performance warranty
• State of the Art Module Technology - Q. ANTUM DUO combines cutting edge cell separation and innovation wiring with Q.ANTUM technology


Specifications

• Series/Model: Q.Peak DUO
• Dimensions: 1740 mm (L) × 1030 mm (W) × 32 mm (H)
• Cells Technology: Monocrystalline Q.Antum Solar Half
• Number of Half Cells: 120 (6 × 20)
• Maximum Power (Pmax): 335 W STC / 250.7 W NOCT
• Maximum Power Voltage (Vmp): 33.62 V STC / 38.1 V NOCT
• Maximum Power Current (Imp): 9.97 A STC / 7.84 A NOCT
• Open-Circuit Voltage (VOC): 40.41 V STC / 38.1 V NOCT
• Short-Circuit Current (Isc): 10.47 A STC / 8.43 A NOCT
• Maximum System Voltage: 1000 V (IEC) / 1000 V (UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: ≥18.7%
• Frame Material: Anodized Aluminum
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000 W/m² STC / 800 W/m² NOCT
• Output Cables: 4 mm² Solar Cable, (+) ≥45.3 in (1100 mm), (-) ≥45.3 in (1100 mm)
• Connector Type: Staubli MC4, IP68
• Fire Type: Class C (IEC) / Type 2 (UL)
• Maximum Design Load (Push/Pull): 3600/2667 Pa
• Maximum Test Load (Push/Pull): 5400/4000 Pa
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C ±2% STC
• Temperature Coefficients of Pmax: -0.36%/°K
• Temperature Coefficients of VOC: -0.27%/°K
• Temperature Coefficients of Isc: 0.04%/°K
• Nominal Operating Cell Temperature: 43 ±3°C
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: 2.09-3.98 × 1.26-2.36 × 0.59-0.71 in (53-101 × 32-60 × 15-18 mm), Protection Class IP67 Rated, with Bypass Diodes
• Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
• Back Cover: Composite Film
• Standards: UL 1703, VDE Quality Tested, IEC 61215:2016, IEC 61730:2016, Application Class II, DVE, CE, CSA/Cus
• Warranty: 25 Years Product, 25 Years Linear Performance
• Weight: 19.9 kg
• Application: Rooftop Arrays on Residential Buildings
