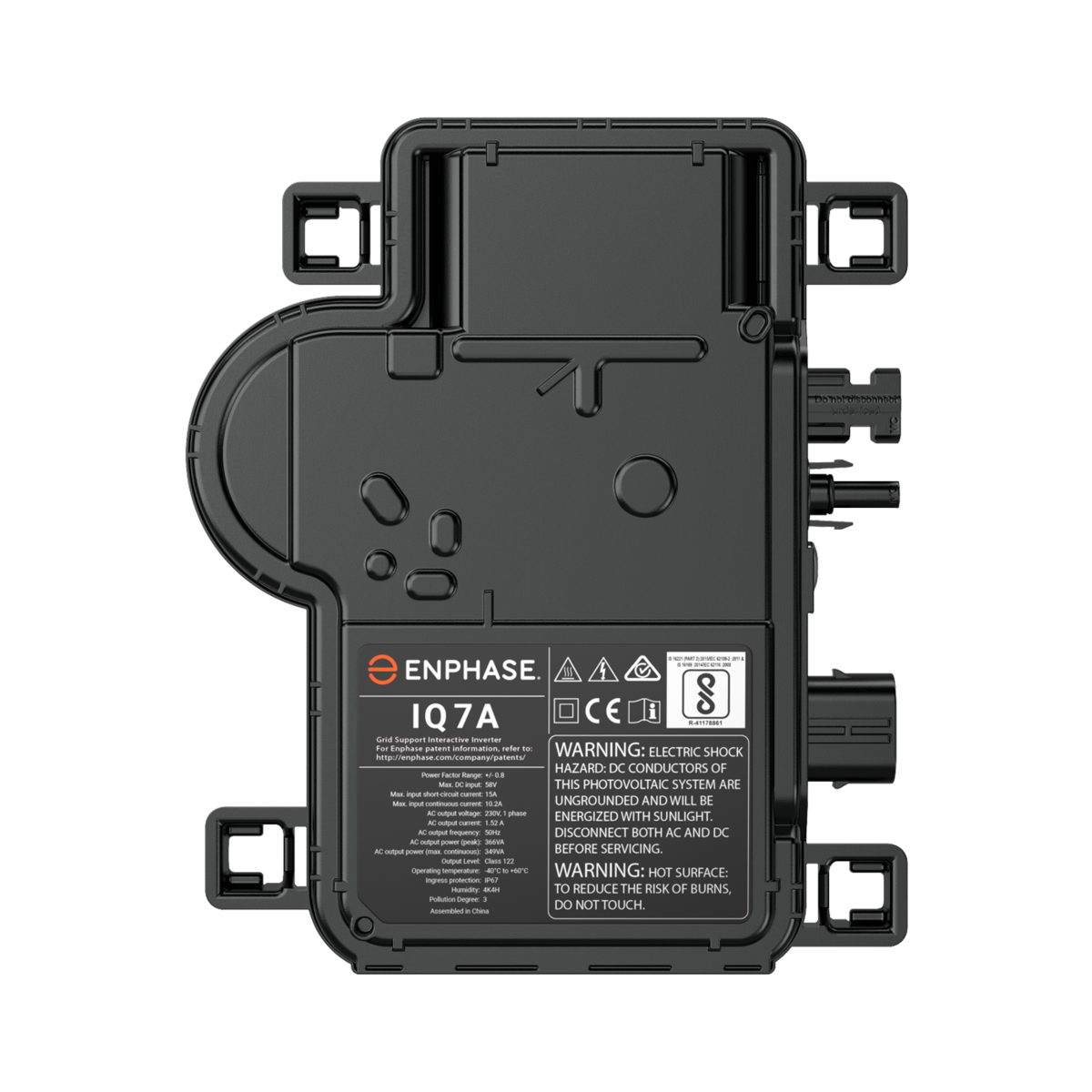

Enphase Energy IQ7A Series 366/295 VA Natural Convection Cooling Microinverter with MC4 Connection

The high-powered smart grid-ready Enphase IQ7+ Microinverter dramatically simplifies the installation process while achieving the highest system efficiency. Part of the Enphase IQ System, the IQ7+ Microinverter integrates with Enphase IQ Battery, the Enphase IQ Gateway, and the Enphase App monitoring and analysis software.

Features

• Faster installation with improved, lighter two-wire cabling
• 97.5% CEC efficiency
• Complies with advanced grid support, voltage and frequency ridethrough requirements
• Remotely updates to respond to changing grid requirements
• Configurable for varying grid profiles


Specifications

• Series: IQ7A
• Overall Length: 212 mm
• Overall Width: 175 mm
• Overall Depth: 30.2 mm
• Input Voltage: 18-58 Vdc
• Power Rating: 366/295 VA
• Input Current: 25 A
• Amperage Rating: 1.45/1.39 A
• Efficiency: 96.5/97.5%
• Frequency Rating: 60 Hz
• Power Factor: 1
• Cooling Type: Natural Convection
• Temperature Rating: -40 to 65°F
• Output Voltage: 240/211-264 V, 208/183-229 V
• Connection Type: MC4


Documents

• Specification Sheet
