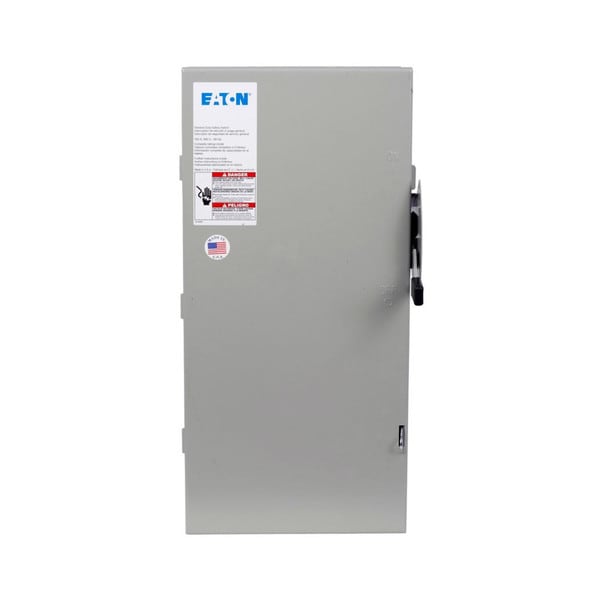

DG223UGB - Eaton General Duty Non-Fusible Safety Switch

The Eaton General Duty Non-Fusible Safety Switch is designed to provide safe and reliable disconnect protection for electrical circuits in residential and light commercial applications. With a 100A rating, this switch is configured with two poles and two wires, making it ideal for use with 240V systems. The switch is constructed from durable painted steel and features a NEMA 1 rating, ensuring it provides protection against accidental contact with live parts and dust in indoor environments. The non-fusible design makes it easy to operate, offering dependable protection and disconnection of electrical circuits.

Key Features:

• Product Type: General Duty Non-Fusible Safety Switch
• Amperage Rating: 100A
• Voltage Rating: 240V
• Phase Configuration: Two-Pole, Two-Wire
• Material: Painted Steel for durability and strength
• NEMA Rating: NEMA 1 (Indoor use) for basic protection against dust and accidental contact
• Design: Single-Throw for reliable and simple operation
• Application: Ideal for indoor applications where disconnect protection is needed for electrical circuits

This Eaton General Duty Non-Fusible Safety Switch is a reliable and cost-effective solution for protecting and isolating electrical circuits in residential and light commercial settings.

Documents:

Catalogs
Commercial Distribution, Switching Devices, Volume 2, Tab 1

Multimedia
Double Up on Safety
Switching Devices Flex Center

Specifications and datasheets
Eaton Specification Sheet - DG223UGB
