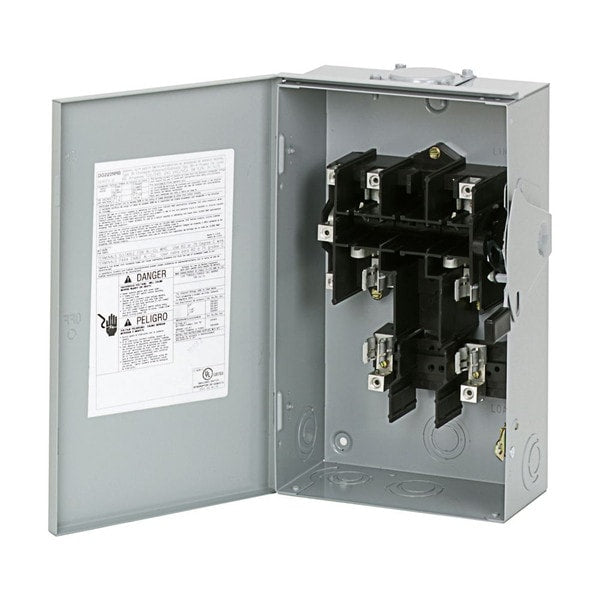

DG222NRB-00PV - Eaton General Duty Cartridge Fuse Safety Switch

The Eaton General Duty Cartridge Fuse Safety Switch is designed for reliable protection in photovoltaic (PV) applications. Rated for 60 amps and 240V, this safety switch includes a fusible configuration with neutral and is equipped with Class H fuses for circuit protection. It features a durable NEMA 3R-rated enclosure made of painted galvanized steel, ensuring superior protection against dust, rain, and outdoor elements. The switch also includes a factory-installed line shield for added safety and protection. This 2-pole, 3-wire unit is ideal for safeguarding PV systems in residential or commercial settings.

Key Features:

• Product Type: General Duty Cartridge Fuse Safety Switch
• Amperage Rating: 60 Amps
• Voltage Rating: 240V
• Configuration: 2-Pole, 3-Wire
• Enclosure Rating: NEMA 3R (Outdoor rated)
• Material: Painted Galvanized Steel
• Fuse Type: Class H Fuses
• Fusible with Neutral: Yes
• Application: Suitable for photovoltaic (PV) applications
• Additional Features: Includes factory-installed line shield for added protection

The Eaton General Duty Cartridge Fuse Safety Switch offers reliable protection and efficient operation for photovoltaic and other electrical systems in outdoor environments.

Documents:

Multimedia
Switching Devices Flex Center

Specifications and datasheets
Eaton Specification Sheet - DG222NRB-00PV
