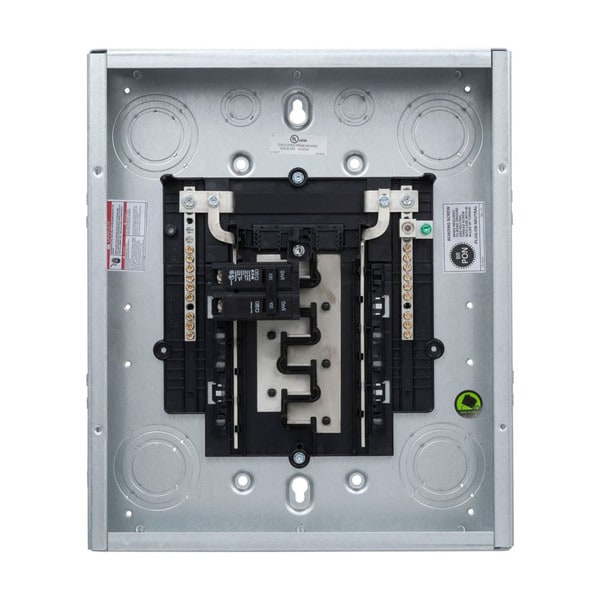

BRP10B100 - Plug-On Neutral Main Circuit Breaker Loadcenter

The Plug-On Neutral Main Circuit Breaker Loadcenter, 100A is designed to provide reliable and efficient power distribution in residential and light commercial applications. Featuring a 100A rating and support for 20 circuits, this loadcenter is ideal for managing power with ease and flexibility.

Key Features:

• 100A rating for reliable electrical distribution
• 20 circuits and 10 spaces for efficient configuration
• NEMA 1 metallic enclosure for indoor use
• Supports wire sizes from 6 AWG to 1/0 AWG (Cu/Al)
• 10KAIC short-circuit current rating for added protection
• Plug-On Neutral design for simpler installation
• Single-phase system with two hots, a neutral, and a ground

The Plug-On Neutral Main Circuit Breaker Loadcenter, 100A offers a compact, durable, and efficient solution for managing electrical power distribution.

Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP10B100

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
