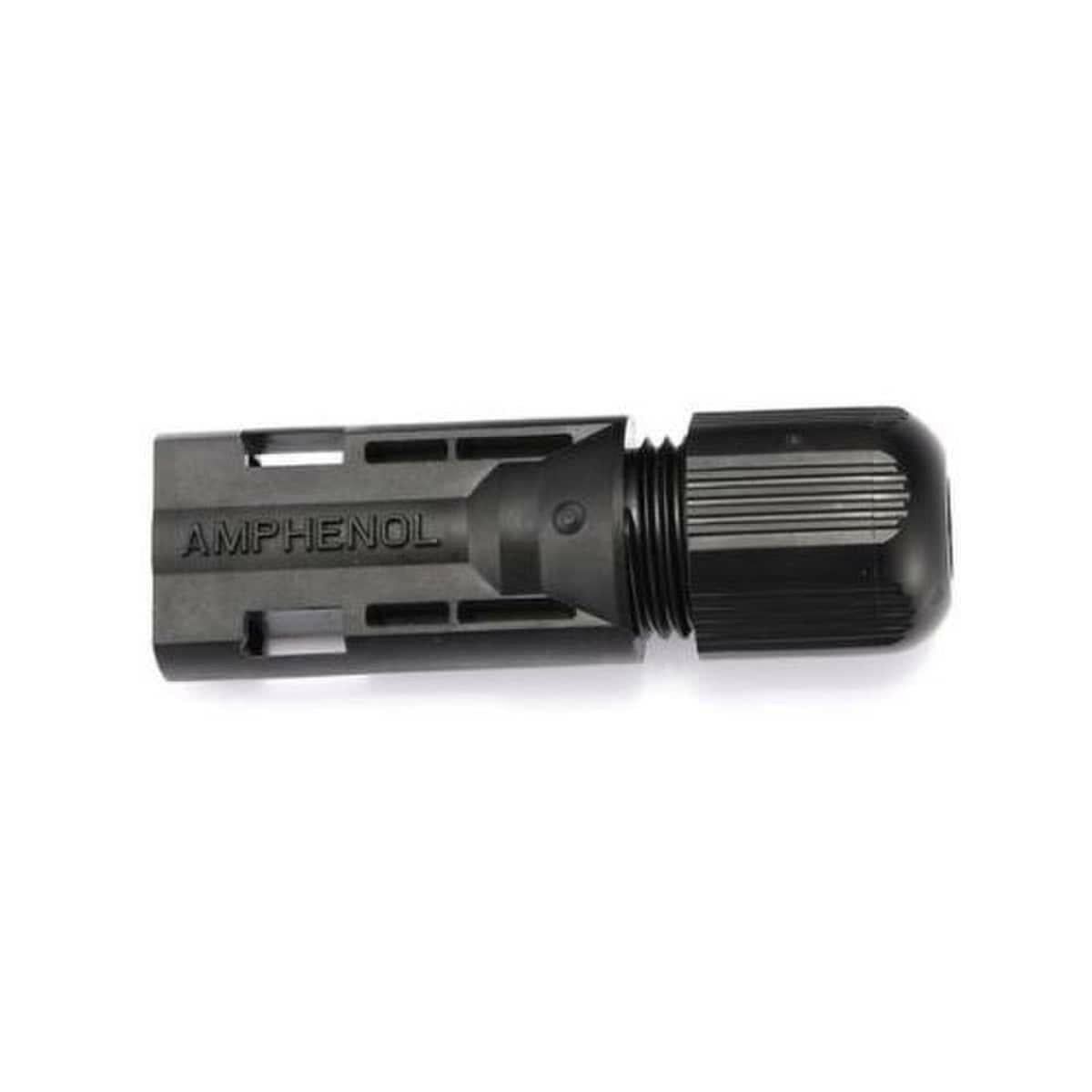

Amphenol Helios H4CMC6DM H4 Male Connector

Amphenol Industrial Solar Technologies' H4 PV Connector is the premiere solar connector in the market today. Carries more amps, has a higher voltage rating, higher IP rating, and is fully interminable with the industry standard connector. Meets the NEC 2008/2011 standard "as is" no additional locking-clip required. The 1,000 VDC-rated Amphenol Helios H4 connector includes the pins and can be made quickly with the proper crimp tool, enabling custom cables to be made at the job site. A special crimping tool and wrench set are required to assemble the connector (See Tools). These connectors are for use with 10 AWG PV wire and sold in packs of 25.

Features

• Fully intermateable with industry standard. Long-term UV and Ozone resistance
• Highest current rating in industry
• Highest voltage rating in industry
• Complete Cable Assemblies available
• Low contact resistance means low power loss. Ready for field assembly


Specifications

• • Type: Male
  • Suitable For Use With: 5.25-7.7 mm OD, #10 AWG PV Wire
  • Includes: Boot
  • Standards: UL Listed
