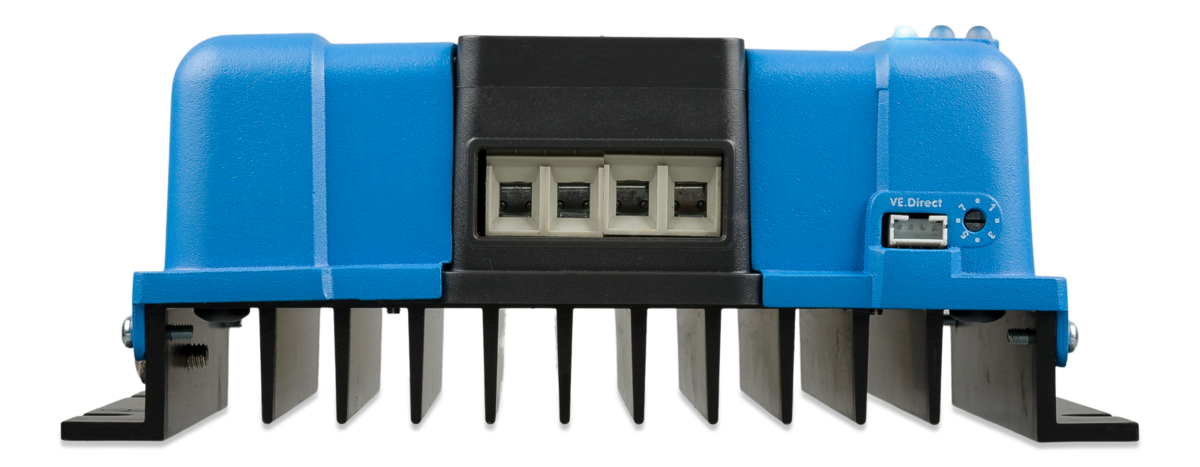

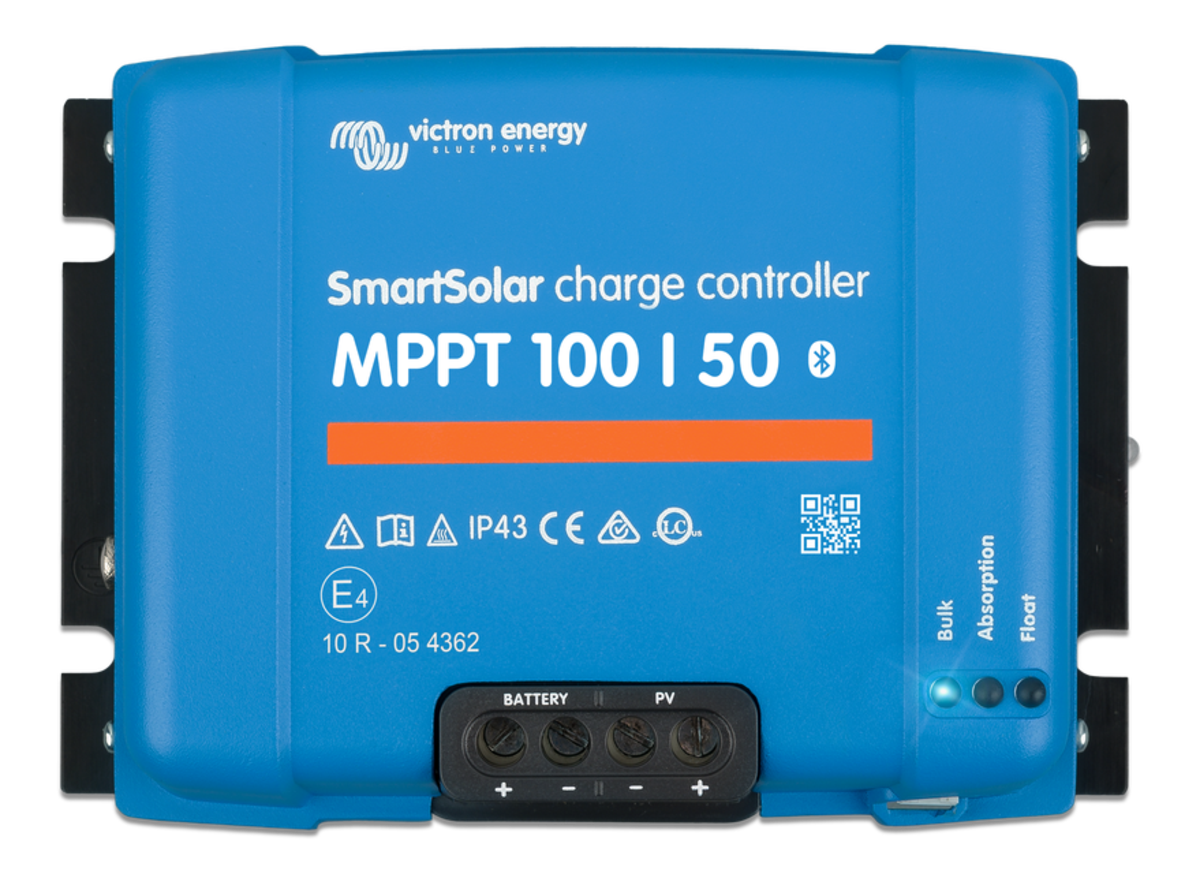

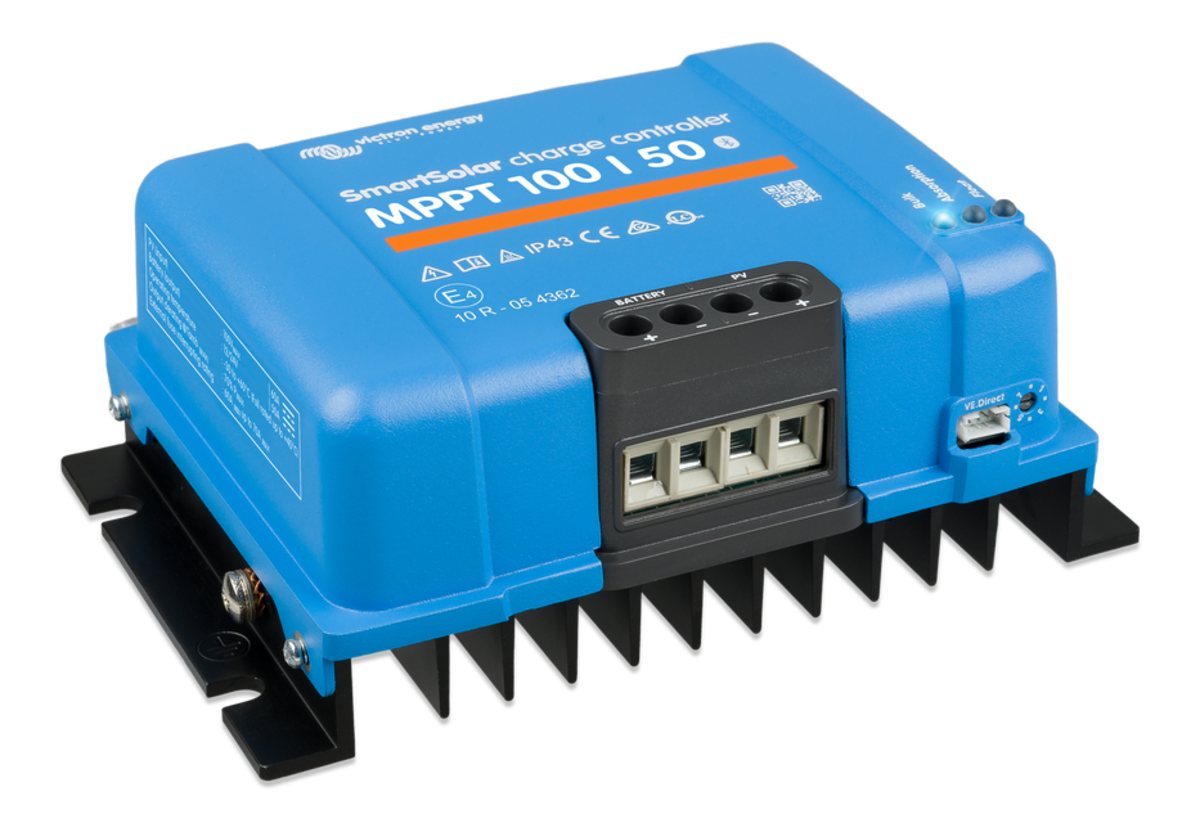

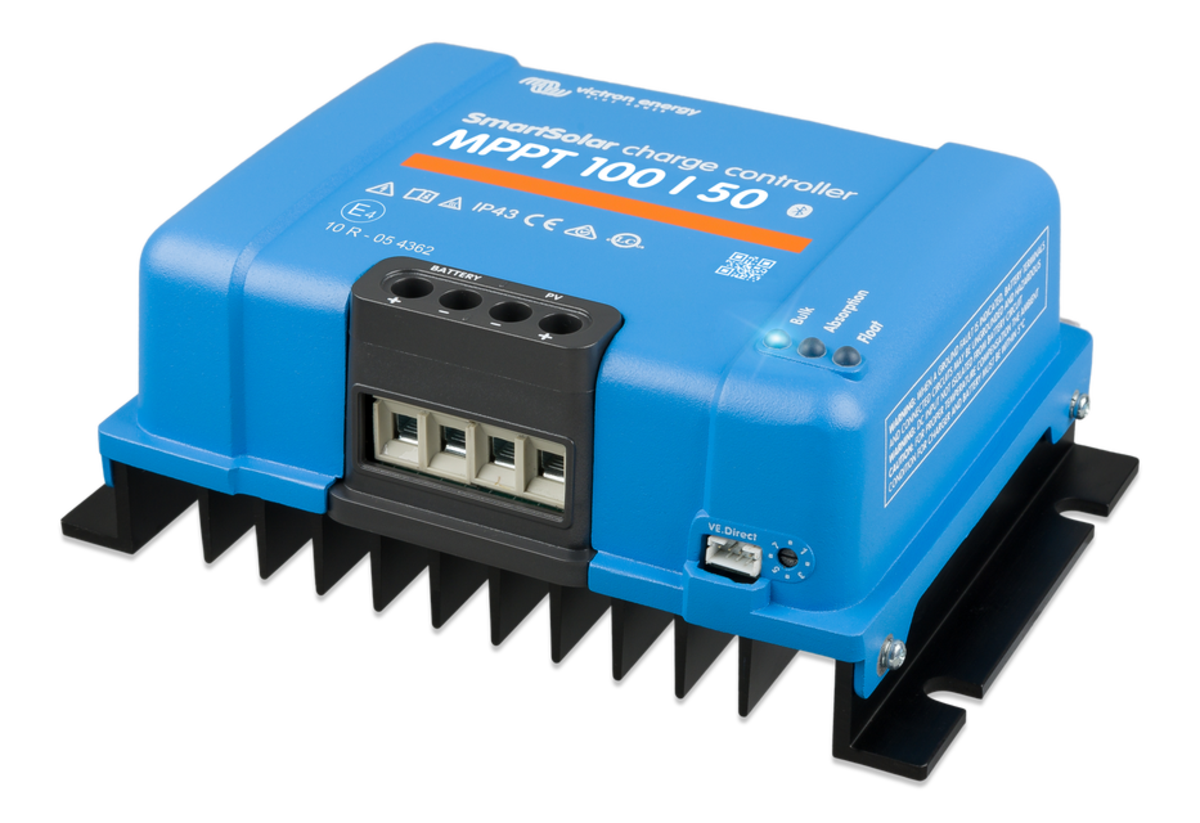

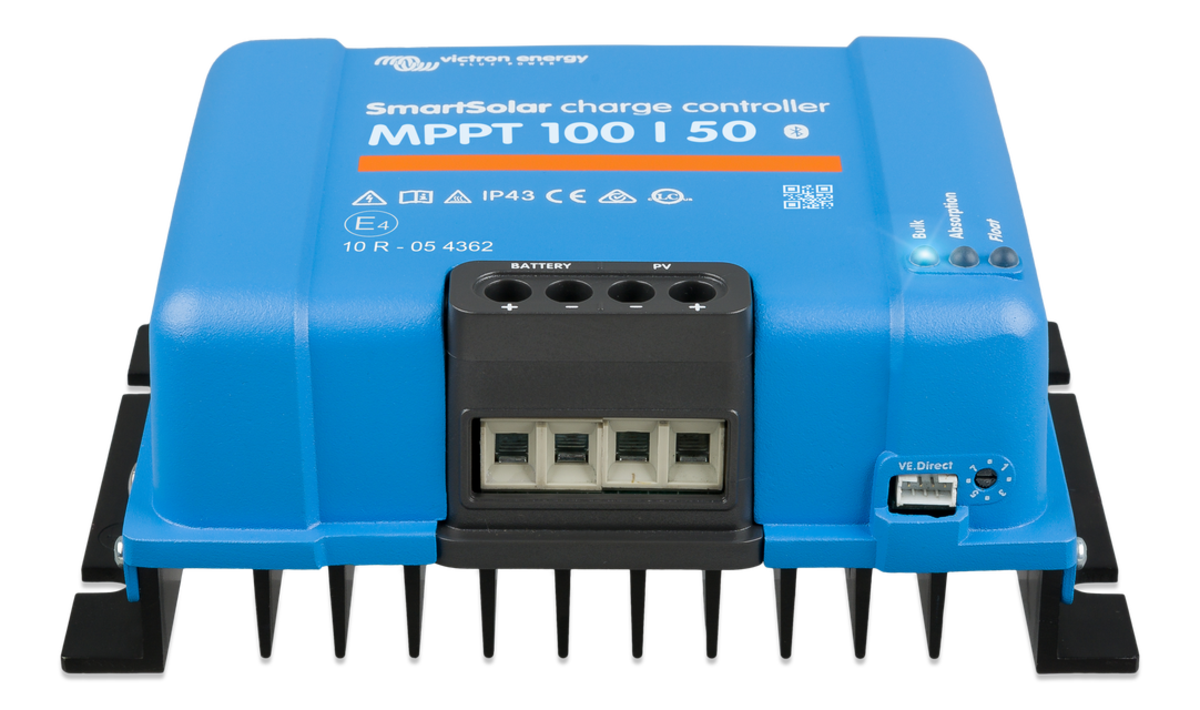

Victron Energy SmartSolar MPPT 100/50

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Features

• MPPT: Ultra fast maximum power point tracking by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage
• The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing
• Remote monitoring and control - remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect
• If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use
• For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520

Specifications

• Type: MPPT
• Series/Model: 100/50
• Battery Voltage: 12/24V Auto Select
• Enclosure Rating: IP43 (Electronic Components), IP22 (Connection Area)
• Maximum PV Open Circuit Voltage: 100V
• Operating Temperature: -30°C to 60°C (Full Rated Output up to 40°C)
• Self-Consumption: 30 mA at 12V, 20 mA at 24V
• Humidity: 95%, Non-Condensing
• Power Terminal: 16 mm²/6 AWG
• Temperature Compensation: -16 mV/-32 mV per °C
• Maximum PV Short Circuit Current: 60A
• Nominal PV Power at 12V: 700W
• Nominal PV Power at 24V: 1400W
• Charge Current Rating: 50A
• Protection: PV Reverse Polarity, Output Short Circuit, Over-Temperature
• Absorption Charge: 14.4/28.8V (Adjustable)
• Float Charge: 13.8/27.6V (Adjustable)
• Peak Efficiency: 98%
• Charging Algorithm: Multi-Stage Adaptive
• Data Communication: VE.Direct (Refer to the Data Communication White Paper on Website)
• Color: Blue (RAL 5012)
• Data Stored: Battery Voltage, Current, Temperature, Load Output Current, PV Voltage, PV Current
• Number of Days Trends Data is Stored: 46
• Dimensions: 130mm Height x 186mm Width x 70mm Depth
• Standards Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2
• Weight: 1.3kg

Documents

• Specification Sheet
• Owners/User Manual
• Technical Drawing
