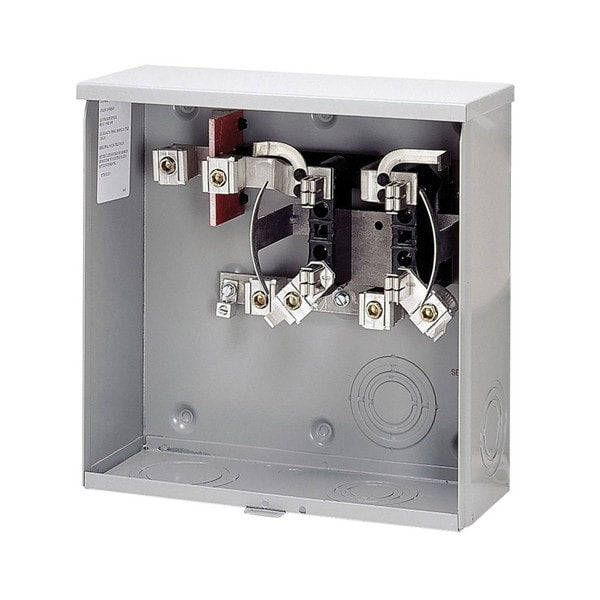

UHTRS223ACH - Eaton Meter Socket

The Eaton Meter Socket is designed for residential service applications, offering reliable and secure metering in a compact configuration. With a 200A amperage rating, it supports 1-position residential service and is equipped with a 4-jaw, single-phase design. The socket accommodates wire sizes ranging from 6-350 Kcmil and includes a horn bypass for added convenience during service interruptions. Featuring a solid top and ringless design, this meter socket is suitable for three-wire, triplex connections, and includes a ground connection for copper wiring. Rated for 600V AC, it ensures dependable performance in residential metering systems.

Key Features:

• Product Type: Meter Socket
• Position: 1-Position Residential Service
• Amperage Rating: 200 Amps
• Voltage Rating: 600V AC
• Phase Configuration: Single-Phase
• Jaw Configuration: 4-Jaw
• Wire Size: 6-350 Kcmil (Main), 8-350 Kcmil (Neutral)
• Connection Type: Three-Wire, Triplex
• Design: Ringless
• Top: Solid Top
• Bypass Type: Horn Bypass
• Ground Connection: Copper (14-2 Cu)

This meter socket offers a robust and safe solution for residential metering applications, providing ease of installation and reliable long-term operation.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - UHTRS223ACH
