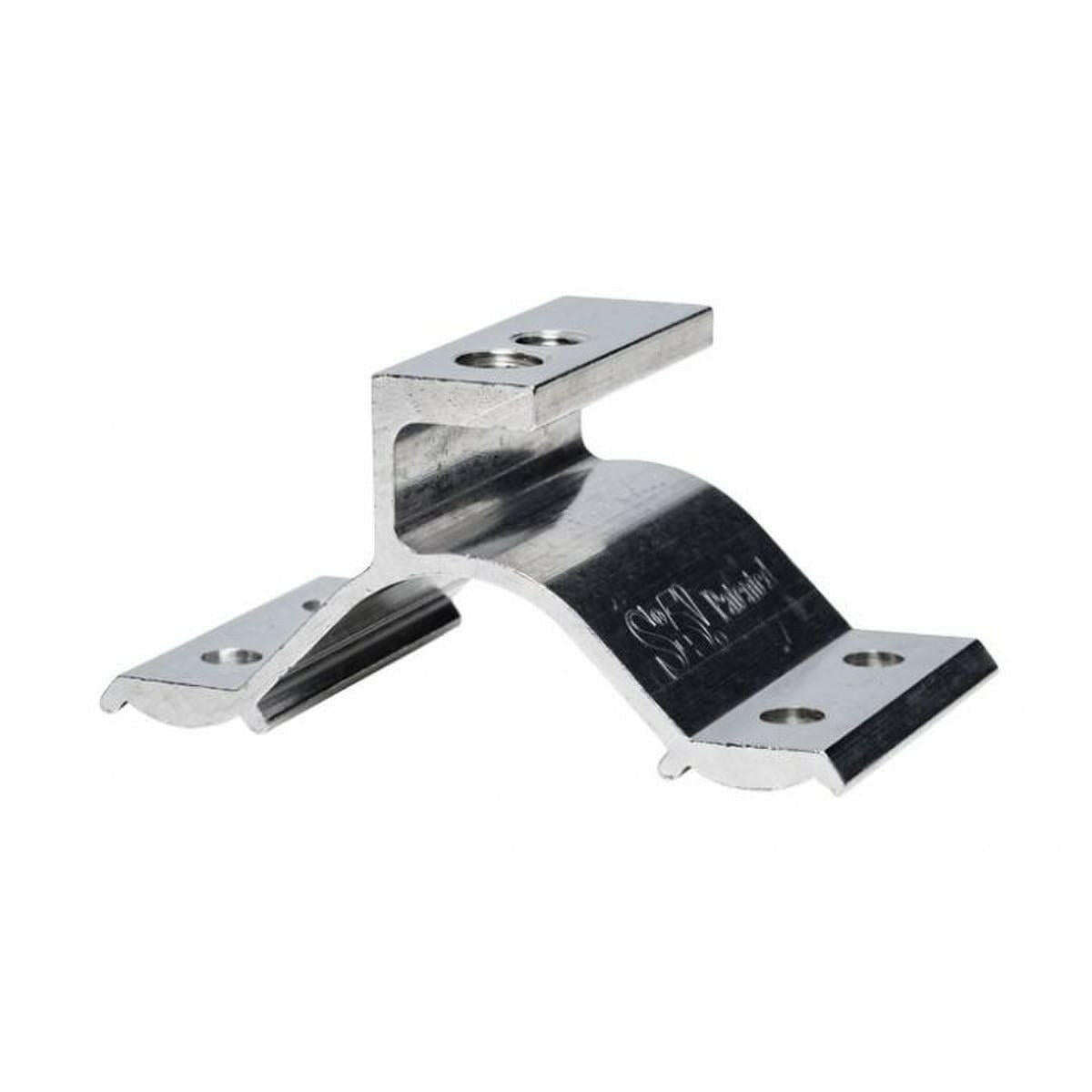

S-5-CorruBracket Mounting Bracket (SKU Part Number S-5-CorruBracket)

CorruBracket can be used to mount almost anything to corrugated metal roofing and is compatible with 7/8″ and 3/4″ corrugated roofing. Each comes with factory-applied butyl sealant already in the base, and the S-5!® patented reservoir conceals the sealant from UV exposure, preventing drying and cracks. The CorruBracket is pre-drilled and threaded w/ two 8mm holes on top for mounting everything from Solar/PV Kits to Snow Retention systems like ColorGard. Each CorruBracket comes with factory-applied butyl sealant in the base. CorruBracket is compatible with most common metal roofing materials. Strong enough for heavy-duty applications, the CorruBracket is the perfect match for S-5!® ColorGard snow retention system, and the easy installation makes it the best solution for installing photovoltaic solar arrays to corrugated roofing with the S-5-PV Kit. The CorruBracket has been tested for load-to-failure results on wood decking, metal and wood purlins. The independent lab test data found at www.S-5.com can be used for load-critical designs and applications. S-5!® holding strength is unmatched in the industry. Due to the various applications, CorruBracket does not come with screws or bolts.

Features

• Fastened through the roof panel and into the structure, CorruBracket utilizes two to four fasteners specifically designed to outlive the roof
• Fastens through roof panel and into the structure
• Reservoir conceals sealant from UV exposure, preventing UV degradation and over-compression of sealant


Specifications

• Type: Bottom-Fixed, Low-Profile
• Suitable For Use With: 7/8 in & 3/4 in Corrugated Roofing
• Material: Aluminum
• Dimensions: 2.77 in x 2 in x 1 in
• Includes: M10-1.5 & M8-1.25 Threaded Holes
• Standards: UL Listed
• Weight: 3.24 oz
• Warranty: 25 Years


Documents

• Specification Sheet
• Warranty Information
• Installation Guide
• Technical Drawing
