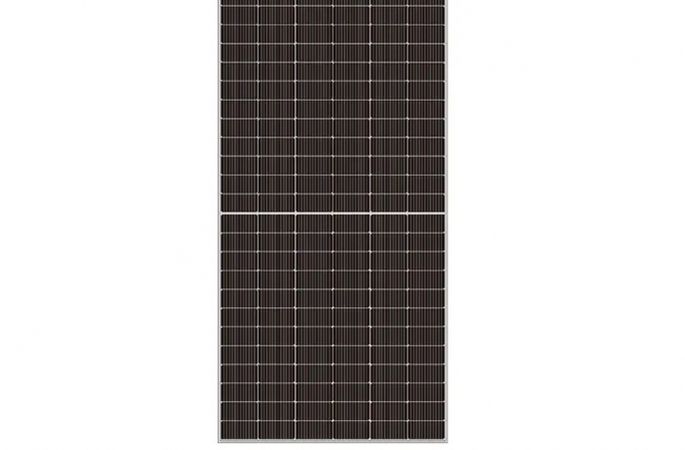

Phono Solar 590W 144 Mono Cells TOPCon Solar Panel

The Phono Solar 590W 144 Mono Cells TOPCon Solar Panel delivers exceptional performance, leveraging cutting-edge N-Type TOPCon technology for superior efficiency, reduced degradation, and higher energy yield. Designed for large-scale commercial and utility applications, this panel ensures long-term reliability and maximum power output under diverse environmental conditions.

Key Features

• Power Output: 590 Watts

• Cell Type: 144 Monocrystalline Half-Cells

• Technology: N-Type TOPCon (Tunnel Oxide Passivated Contact)

• Bifacial Design: Enhanced rear-side energy capture for increased total yield

• Efficiency: Up to 22.8% module efficiency

• Temperature Coefficient: Low power loss in high-heat conditions

• Durability: Certified for high snow (5400 Pa) and wind (2400 Pa) loads

• Degradation Rate: ≤ 1% first year, ≤ 0.4% annually thereafter

Applications

Ideal for commercial rooftops, solar farms, and utility-scale installations requiring maximum energy density and long-term performance.

Specifications

• Model: Phono Solar 590W TOPCon

• Module Dimensions: 2279 × 1134 × 30 mm (89.7 × 44.6 × 1.2 in)

• Weight: 27.5 kg (60.6 lbs)

• Connector Type: MC4-compatible

• Frame: Anodized aluminum alloy

• Glass: High-transmittance, anti-reflective tempered glass

Certifications

• IEC 61215 / IEC 61730

• UL 61730 Certified

• ISO 9001, ISO 14001, ISO 45001

Warranty

• 25-Year Performance Warranty

• 15-Year Product Warranty

Document: Specification Sheet
