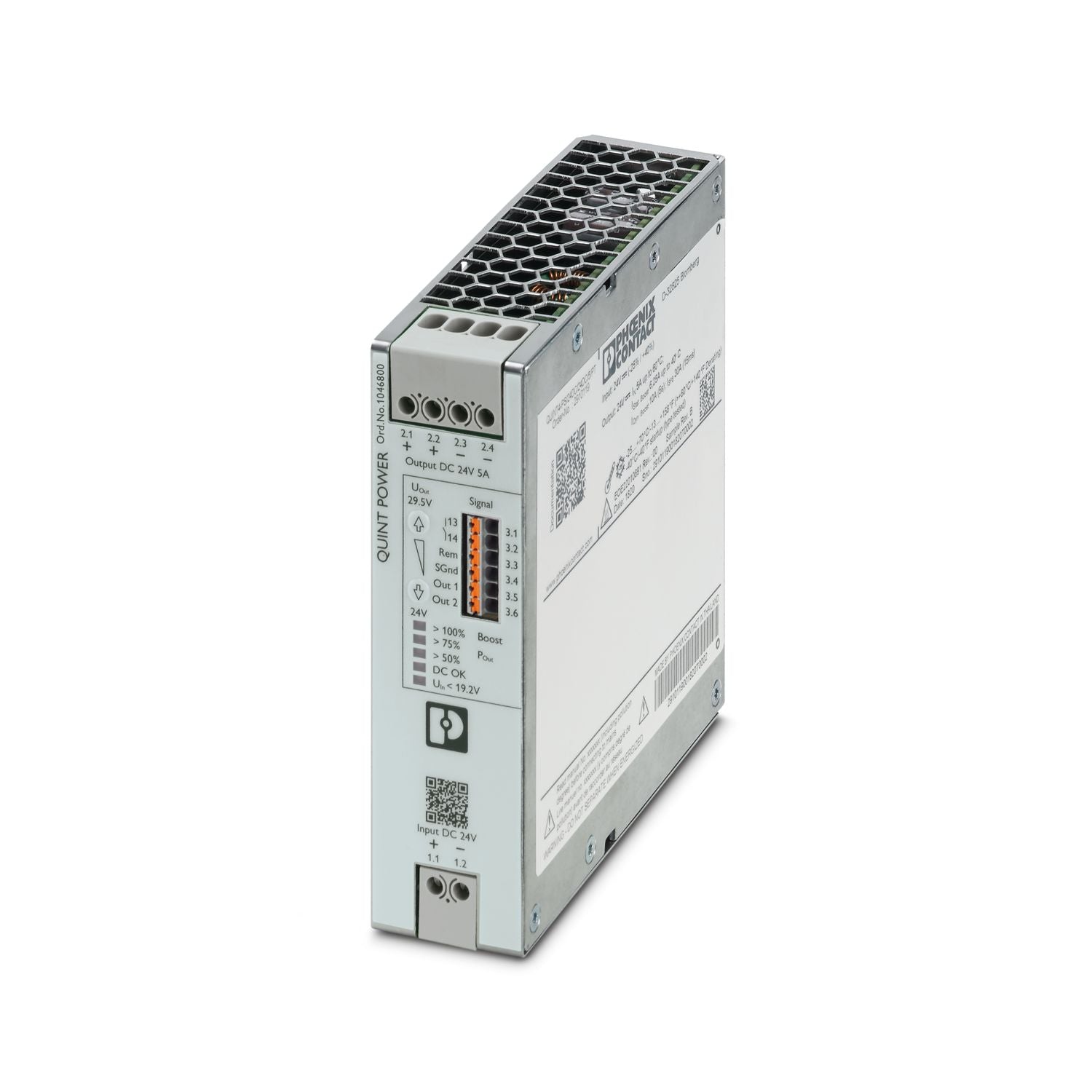

Phoenix Contact QUINT4-PS/24DC/24DC/5/SC – DC/DC Converter

The QUINT4-PS/24DC/24DC/5/SC from Phoenix Contact is a robust DC/DC converter designed to deliver maximum system reliability in industrial power applications. Part of the QUINT4 series, it offers advanced diagnostics, high efficiency, and dependable performance for demanding automation environments.

Key Features:

• Input Voltage: 18 V DC … 32 V DC

• Output Voltage: 24 V DC (adjustable 18 V DC … 29.5 V DC)

• Output Current: 5 A continuous

• Output Power: 120 W

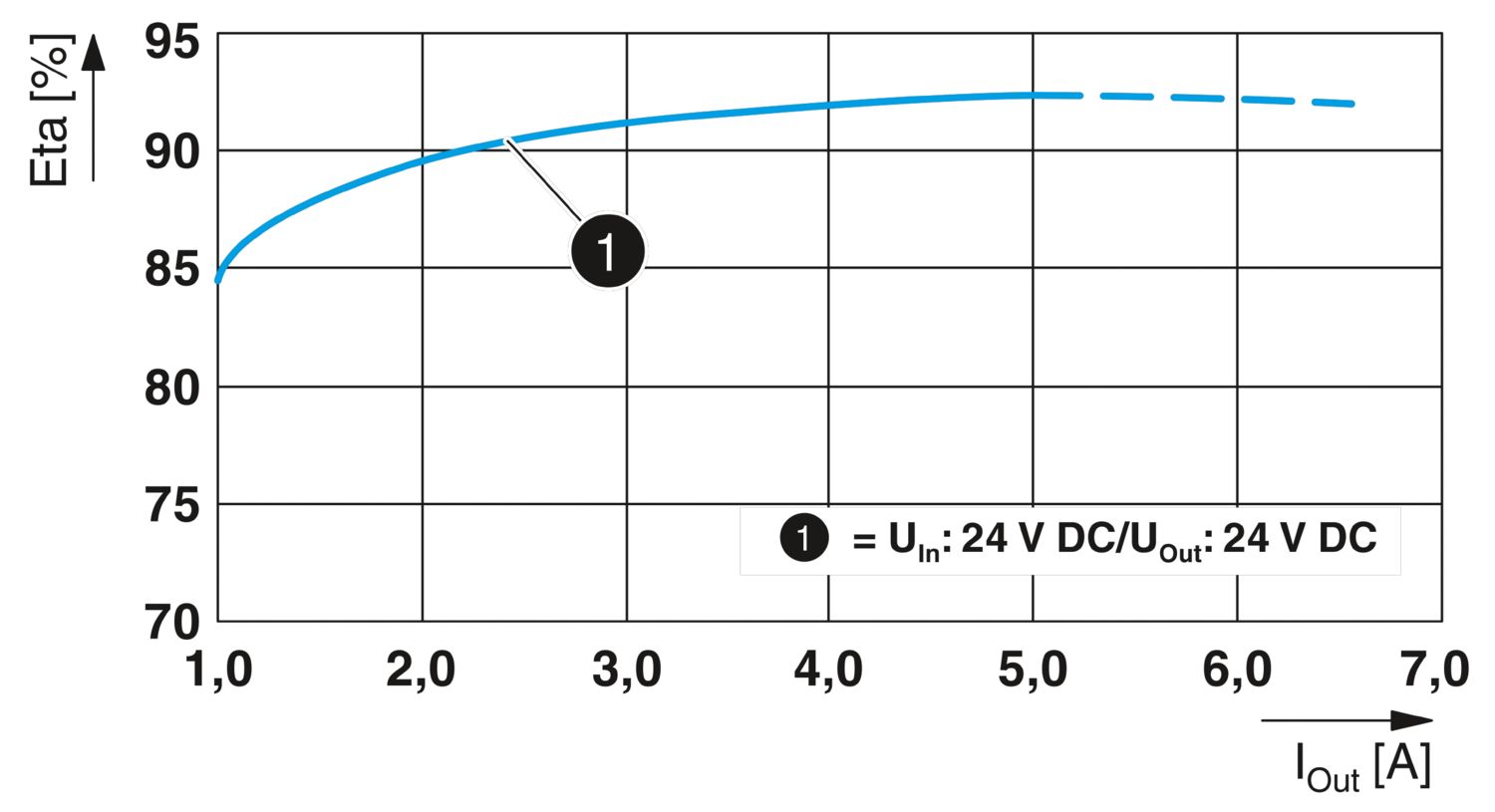

• Efficiency: Up to 94% for reduced energy loss

• Preventive Function Monitoring: Early warning for critical operating states such as overload, voltage fluctuations, and device temperature

• Protection: Selective Fuse Breaking (SFB) technology for reliable tripping of circuit breakers

• Connection Type: Screw connection (SC) terminals

• Certifications: UL Listed, CE, IEC approved for global use

Dimensions:

• Width: 35 mm

• Height: 130 mm

• Depth: 125 mm

• Weight: 0.9 kg

Applications:

Ideal for industrial automation, process control, and critical power distribution systems requiring reliable voltage conversion, redundancy, and enhanced operational safety.
