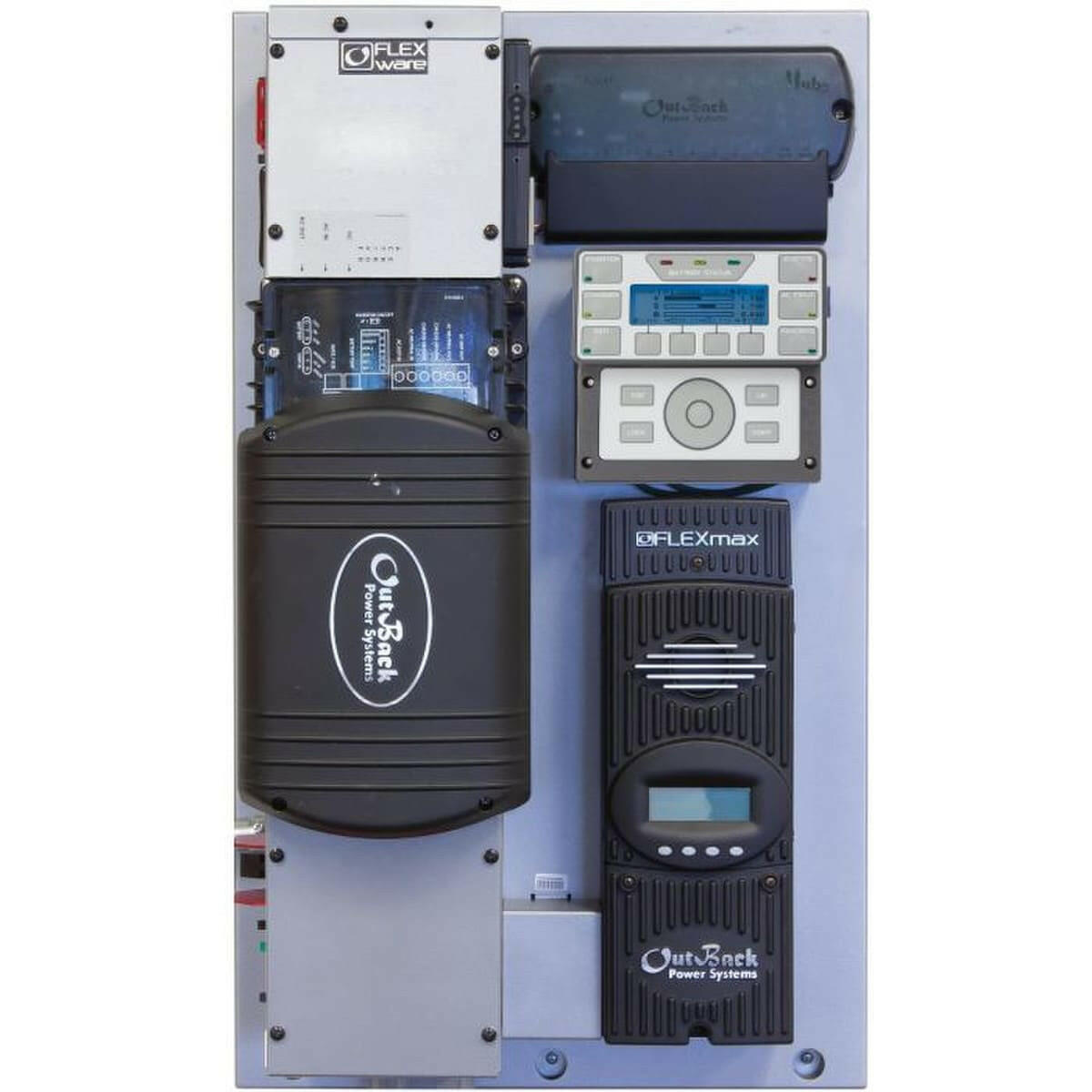

Outback FLEXpower One 3kW 48V Pre-wired FXR Series System 120V (SKU Part Number FP1 FXR3048A-01)

OutBack's pre-assembled and pre-wired power systems take the concept of fast, easy installation to a new level of performance, value and flexibility with the FLEXpower. Everything you need, besides power sources and batteries, comes completely integrated-just install the mounting bracket, hang the system on a wall, make the necessary connections and the system is fully operational. The FLEXpower ONE FXR series is ideal for residential and commercial applications including cabins, vacation homes, farm buildings, remote communications sites and back-up power systems, with all necessary components integrated into a compact hang-on-the-wall system with a minimal footprint.

Features

• Factory tested, pre-wired and pre-configured
• Fast installation with a pre-assembled system and fully integrated GS load center
• Optimized system footprint
• GridZero technology optimizes the balance between stored and renewable energy sources, minimizing grid dependence
• Advanced Battery Charging (ABC) supports leading-edge battery technologies, including lithium-ion
• Dual AC inputs for seamless generator integration in grid-interactive applications
• Grid-interactive and stand-alone capability in one unit
• System monitoring via web interface with OPTICS RE
• Components carry all of the necessary ETL certifications. Rule 21 compliant


Specifications

• Type: Fully Pre-wired
• Series/Model: FLEXpower ONE FXR
• Dimensions: 33.5 in Length x 19.25 in Width x 13 in Height
• Inverters: FXR3048A
• Bypass Voltage: 120 VAC
• Outlet: NEMA 5-20R
• Inverter OCPD: 175 A
• PV OCPD: 80 A
• RTS: Yes
• Output Power: 3 kW
• Includes: Mounting Bracket, FXR/VFXR Inverter/Charger, Flexmax Charge Controller, Mate3, Hub10.3, Flexnet DC, Flexware Surge Protector, AC & DC Wiring Boxes, Battery & PV Array Breakers, PV GFDI, Input-output-bypass Assembly, Mounting Locations for GFCI Outlets & Additional AC Breakers
• GFDI: Yes
• AFCI: Yes
• Voltage Rating: 48 V
• Standards: ETL Listed
• Warranty: 5 Years
• Weight: 98 lb


Documents

• Specification Sheet
