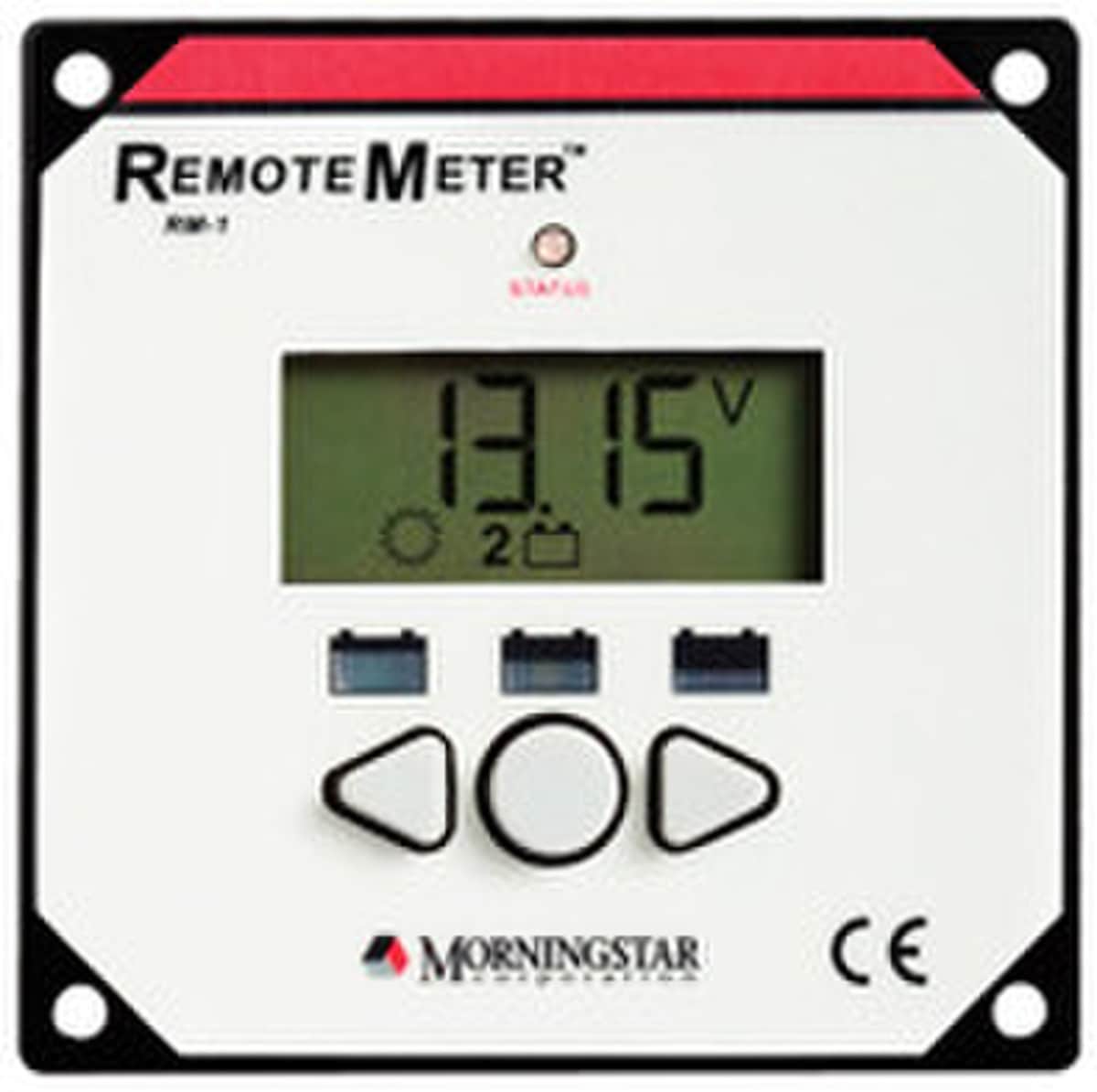

Morningstar 8 V Universal Remote Meter

Morningstar's Remote Meter (RM-1) is a universal, four digit display with custom icons that is compatible with several Morningstar controllers and inverters. This meter provides comprehensive system information for easy monitoring including voltage, current and temperature.

Features

• Provides important information. Mounting options. Easy to install. Simple to use. Low self-consumption. Adjust-ability
• Easy to install and use
• Low self-consumption
• 4 digit display with custom icons
• Displays systems information, logged data*, alarms and errors
• May be mounted in the wall or on the wall with included frame
• Includes 10 meters of cable


Specifications

• Type: Universal
• Operating Voltage: 8 V
• Self-Consumption: 6 mA (Backlight Off), 15 mA (Backlight On)
• Compatibility: SunSaver Duo Controller, SunSaver MPPT Controller, SureSine Inverter
• Relative Humidity: 100% Non-Condensing
• Temperature Rating: -20 to 60°C (Ambient), -30 to 80°C (Storage)
• Material: PBT Plastic Frame, Powder Coated Steel Faceplate
• Connector Type: RJ-11 (6 Pin)
• Dimensions: 1.75 in Length x 9 in Width x 9.5 in Height
• Standards: UL Listed, CE
• Weight: 1.36 lb
• Warranty: 5 Years Standard
• Application: RVs, Caravans, & Marine


Documents

• Specification Sheet
•  Instruction/Installation Manual
• Warranty Information
