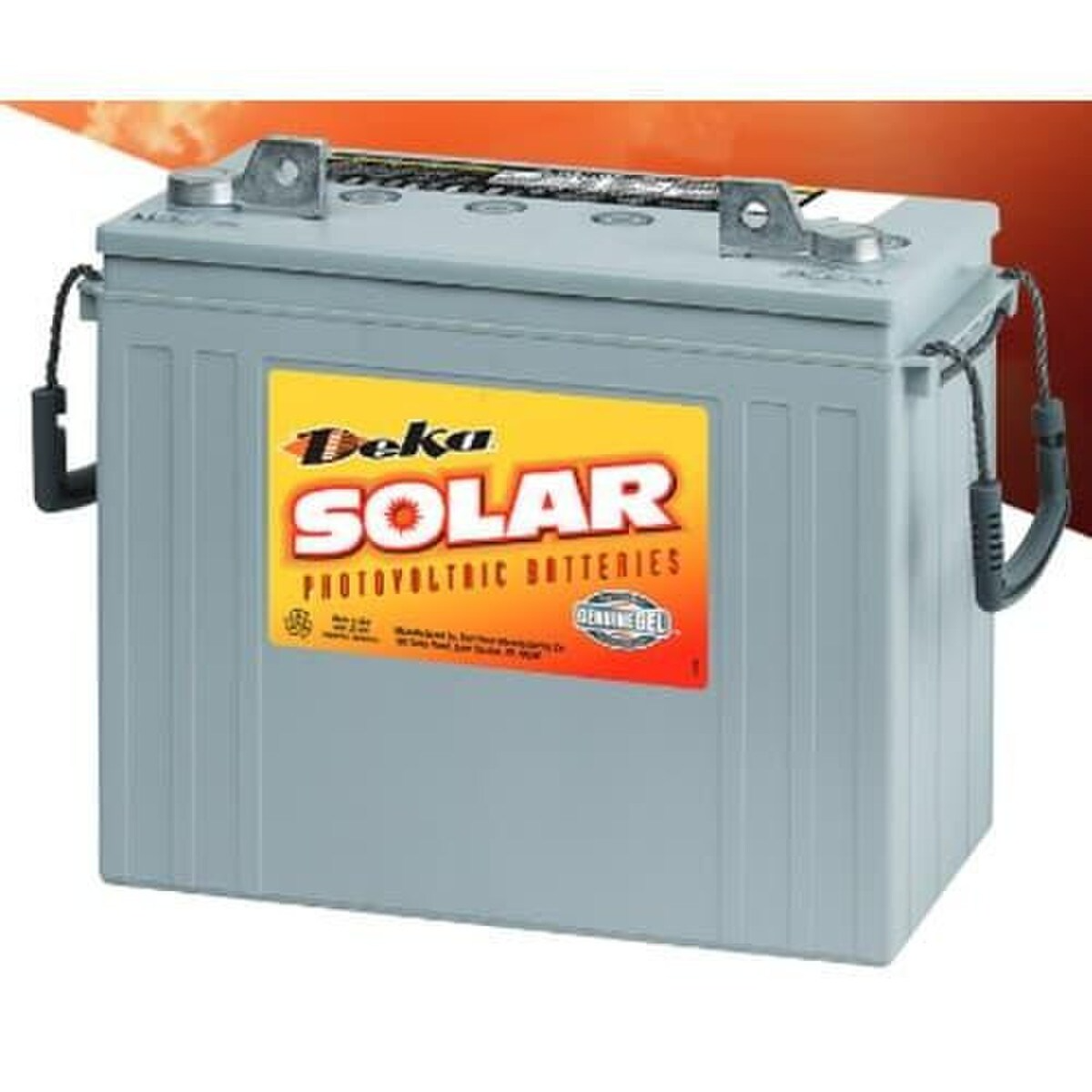

MK Power 8G5SHP-HFL-DEKA, 12V 115AH, 20 HR Rate TO 1.75 VPC, Photovoltaic Battery

Introducing the Deka Solar Battery - the perfect solution for those looking for a reliable and long-lasting backup power source for Photovoltaic (PV) and renewable energy applications. With its reinforced case that resists bulging and meets safety requirements, this battery is designed to provide maximum performance in even the harshest environments.

Features

• Designed to provide reliable, long lasting back-up power for Photovoltaic (PV) and renewable energy applications where frequent deep cycles are required and minimum maintenance is desirable
• Reinforced case resists bulging and meets safety requirements
• Genuine gel technology
• Case & cover heat sealed and 100% tested to prevent leaks
• Computer-aided design and manufacturing control processes and standards to ensure quality products

Specifications

• Series/Model: 8G5SHP
• Voltage Rating: 12 V
• Nominal Capacity:
  • 115 Ah at 20 hr rate to 1.75 VPC
  • 123 Ah at 100 hr rate to 1.75 VPC
• Dimensions: 13.58 in Length x 6.75 in Width x 11.42 in Height
• Material: Polypropylene Container
• Positive Plates: Pure Lead, Calcium Alloy
• Negative Plates: Pure Lead, Calcium Alloy
• Charge Voltage Rating:
  • 2.35-2.4 VPC at Absorption (Regulation)
  • 2.24-2.26 VPC at Float
  • 2.4-2.43 VPC at Equalize
• Vent: Low Positive Pressure, Self-Sealing
• Technology: Genuine Gel
• Temperature Coefficient: 0.003 V/deg C
• Short Circuit Current: 2342 A
• Torque Rating: 40 in-lb
• Standards:
  • CURUS
  • UL Recognized Component
  • Quality System Certified ISO 9001, ISO/TS 16949
  • Environmental System Certified ISO 144001
• Warranty: Limited
• Weight: 84.5 lb
• Application:
  • Water Pumping
  • Residential/Small Village
  • Cathodic Protection
  • Remote Monitoring
  • Lighting
  • Wind Generation
  • Railway Signal

Documents

• Specification Sheet 1
• Specification Sheet 2
• Warranty Information
