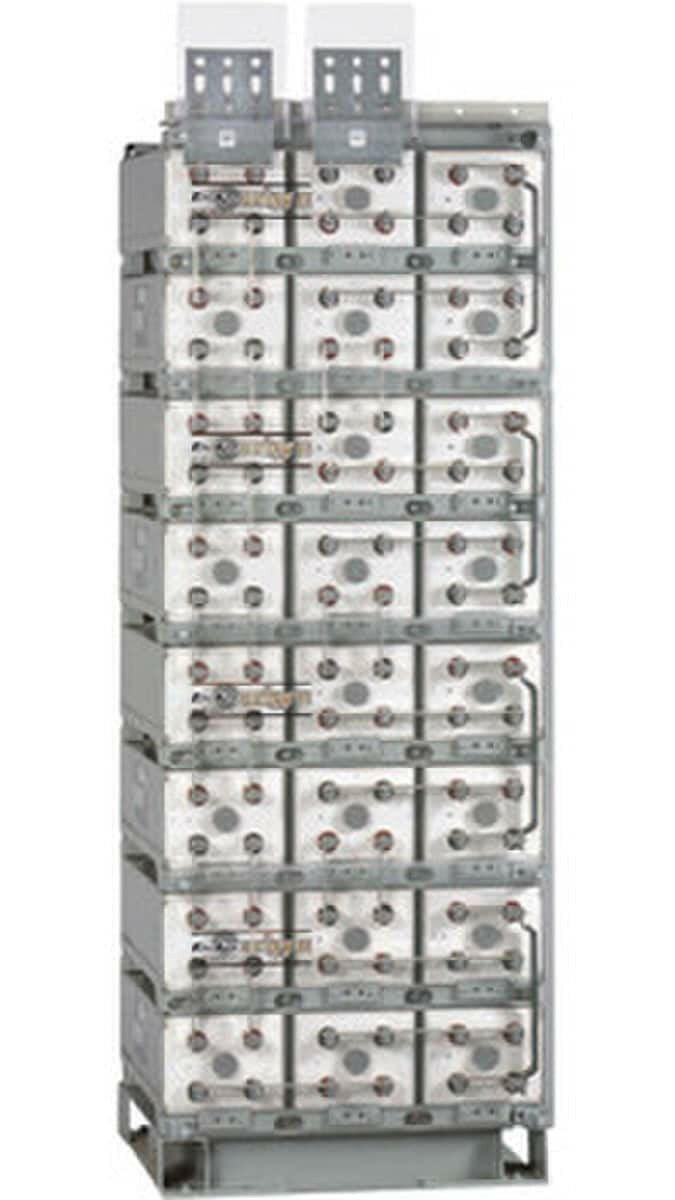

MK Battery Unigy II 3AVR95-33 3-Cell 6V 1855Ah Module Non-Interlock

The DEKA UNIGY II LINE features two module designs with a wide range of capacities and sizes to fit the requirements of renewable energy applications. These modules are constructed using the finest quality materials and state-of-the-art manufacturing techniques enhancing their performance in these demanding applications.

Features

• Two Way Post design is lead plated solid copper providing a large contact area with front access bolting for easier installation and maintenance
• Pure Virgin Lead (99.99%) positive grid alloy is very resistant to corrosion/growth
• Positive and Negative plates are formed with IPF® technology to ensure plates operate at 100% capacity
• Collapsible bottom bridge accommodates for normal plate growth, reducing stress on battery post seals
• Air Gap between cells has been designed to reduce foot print while maintaining required cooling
• Front safety shield design easily slides on and off without tools for quicker assembly
• Non-Interlock modules require front and rear access bolts for mounting, providing easy and safe installation
• Modules are coated with acid resistant epoxy powder paint
• Each module has mounting holes for grounding option
• Standard two-piece base enables anchors to be drilled and installed with base in place
• Meets UBC Zone 4 certification of ground level in most applications up to 8 modules high


Specifications

• Type: Non-Interlock
• Voltage Rating: 6 V
• Separators: Micro-Porous Glass Mat
• Individual Plate Formation: Shipped at 100% Capacity
• Cycle Life: 2400 Cycles at 20% DOD
• Number of Cells: 3
• Cell Type: AVR95-33
• Ah Rating: 1855 Ah
• Capacity at 1.75 VPC (77°F):
  • 10 Hr Rate: 1591 Ah
  • 20 Hr Rate: 1807 Ah
  • 24 Hr Rate: 1856 Ah
  • 100 Hr Rate: 2151 Ah
• Capacity at 1.81 VPC (77°F):
  • 10 Hr Rate: 1569 Ah
  • 20 Hr Rate: 1779 Ah
  • 24 Hr Rate: 1839 Ah
  • 100 Hr Rate: 2130 Ah
• Capacity at 1.84 VPC (77°F):
  • 10 Hr Rate: 1544 Ah
  • 20 Hr Rate: 1756 Ah
  • 24 Hr Rate: 1817 Ah
  • 100 Hr Rate: 2104 Ah
• Mounting Type: Hole
• Finish: Acid Resistant Epoxy Powder Paint
• Standards: UL Recognized Component, ISO9001, ISO/TS 16949
• Warranty: 10 Years Limited


Documents

• Catalog
