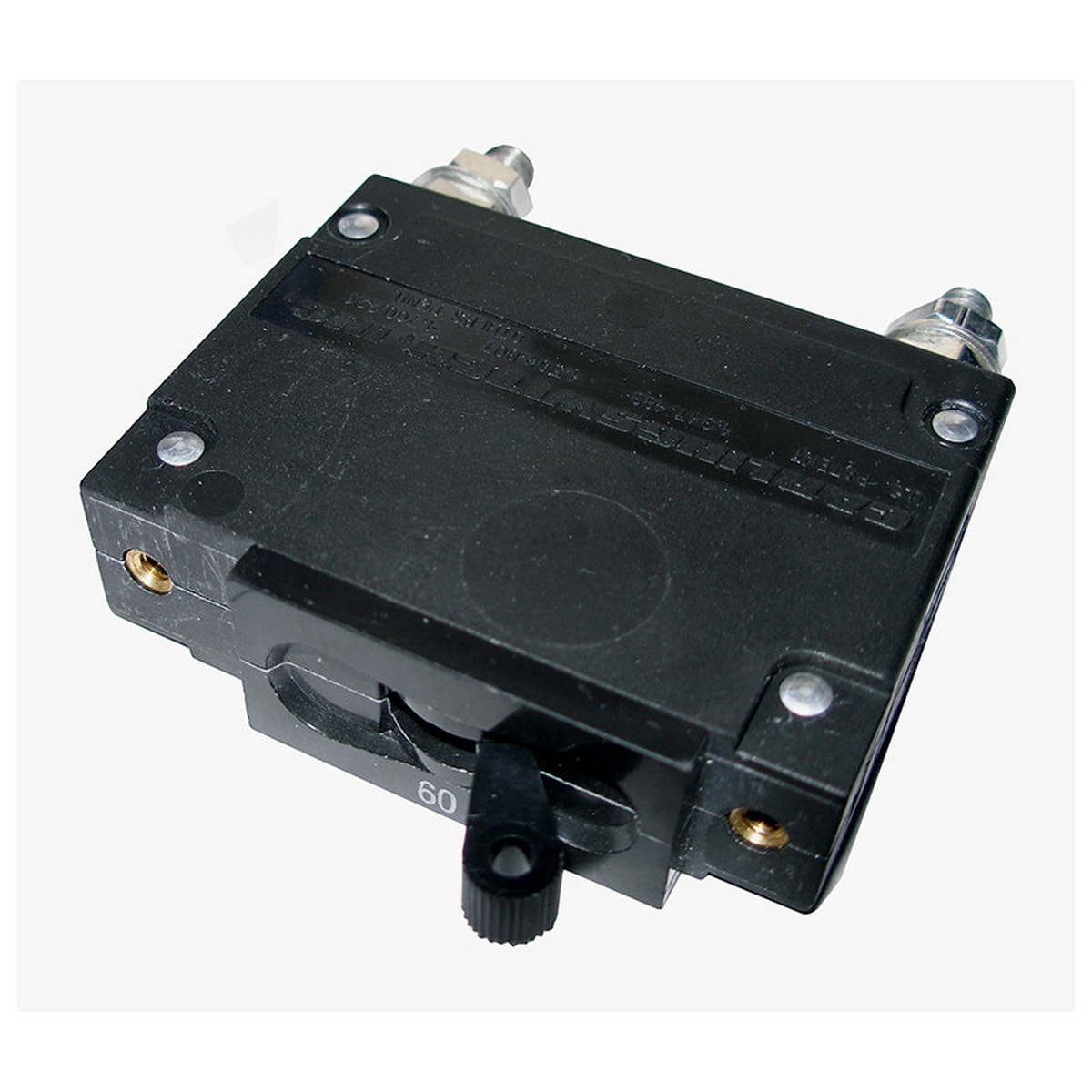

MidNite Solar MNEDC100 100A Circuit Breaker

All MidNite circuit breakers are rated for 100% continuous duty. Midnight's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

Features

• All midnite circuit breakers hold 100% rated current independent of ambient temperature


Specifications

• Type: Non-Polarized
• Series/Model: MNEDC
• Voltage Rating: 120 VAC/150 VDC
• Current Rating: 100 A
• Number of Poles: 1
• Mounting Type: Panel
• Interrupt Rating: 10000 AIC
• Torque Rating: 30 in-lb
• Enclosure Rating: Type 1 (Indoor)
• Includes: 1/4 in Studs, (2) 6-32 X 0.195 in Pan Head Phillips Mounting Screw
• Dimensions: 3/4 in Width
• Standards: ETL Listed
• Weight: 0.5 lb
