MidNite Solar MNBDM-48 Battery Disc Module

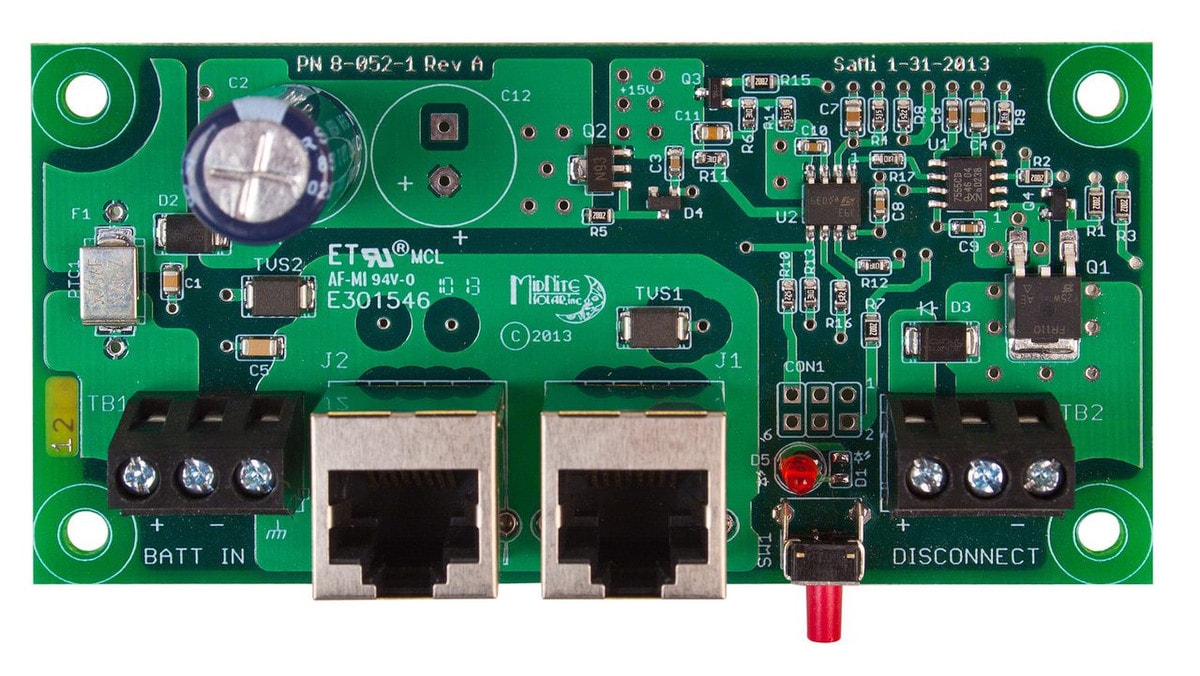

The Midnite Solar Battery Disconnect Module (MNBDM) is an optional circuit board which can be installed in most MidNite Solar E-Panels. It is used in conjunction with one or more MNBH Disconnect switches and MidNite Solar disconnecting combiners to remotely shutdown the system in emergencies. The MNBDM is controlled by the MNBH Birdhouse Disconnect switch and disconnects the main batteries from the system in a similar manner as the disconnecting combiner disconnects the PV array from the rest of the system. The trip signal for the MNBDMs and combiners is generated by the MNBH Disconnect Panel. Control signals are provided to the target devices via a ruggedized 600V CAT-5 cable, which connects all components in the system.

Features

• Remotely shuts down the system in emergencies


Specifications

• Voltage Rating: 24/36/48 V
• Technology: Battery Disconnect Module
• Suitable For Use With: Birdhouse Emergency System Shutdown
• Standards: UL Listed, ETL Listed, CE Certified, FCC
• Warranty: 2 Years


Documents

•  Instruction/Installation Manual
