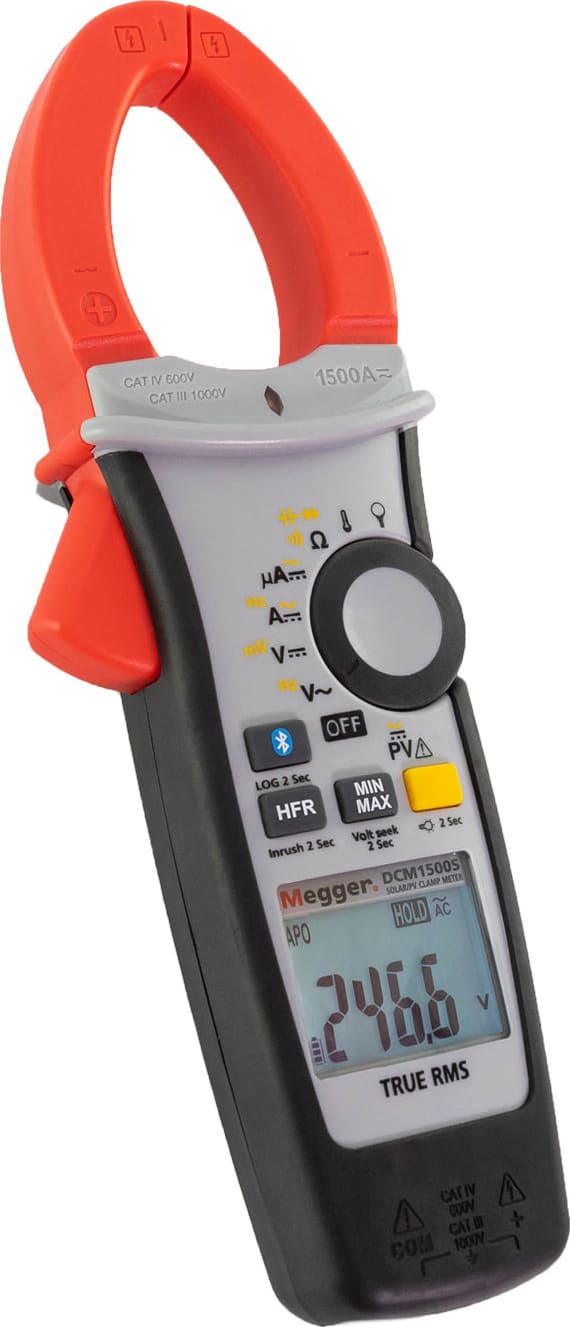

Megger DCM1500S - Solar Clamp Meter

Product Overview

The DCM1500S is a rugged, installer-grade True‑RMS clamp meter built specifically for PV systems. With support for up to 2000 V DC (via PV leads) and 1500 A AC/DC, it’s ideal for commissioning, troubleshooting, and maintenance across solar arrays and electrical installations.

• Support for solar systems: Measures up to 2000 V DC and 1500 A AC/DC with included PVHV1 and PVHV2 lead sets (MC4 compatible)

• Advanced measurement tools: Includes Smart Hold, inrush current capture, high-frequency rejection filter, non-contact VoltSeek mode, and manual DC amp zeroing

• Bluetooth connectivity: Pair with the free Megger Link app to log data remotely on a smart device and view live trends

• Versatile multi-function readings: Measure voltage (including µA/mV), current, resistance, diode, capacitance, frequency, and temperature (with included thermocouple)

• Large backlit display & built-in torch: 6,000-count white LED display and jaw-mounted light for low-light environments

• Safety certified: Rated to CAT IV 600 V / CAT III 1000 V per IEC standards for PV and industrial environments

What’s Included

• Megger DCM1500S Solar Clamp Meter (catalog # 1013‑357)

• Standard 4 mm lead set with probes & clips

• TP‑90 thermocouple temperature probe

• PVHV1 (4 mm) and PVHV2 (MC4‑PV) high‑voltage PV lead sets

• Rugged hard case for safe transport and field storage

Specifications Overview

Ideal For

• Solar PV technicians, installers, and O&M professionals

• Measuring live PV string performance and fault finding

• Accurate diagnostics of both AC and DC current, voltage and module temperature

• Field testing in tight, poorly lit or complex environments

Why It Stands Out

• Exclusive PV support: With PV-rated leads and high-voltage DC measurement up to 2000 V

• Live log via Bluetooth: Capture real-time data trends from your mobile device

• Feature-rich and safe: Smart Hold, VoltSeek, True‑RMS, and high CAT ratings ensure field reliability

• All-in-one kit: Comes complete with tools to measure current, voltage, temperature, and more

Document: Specification Sheet
