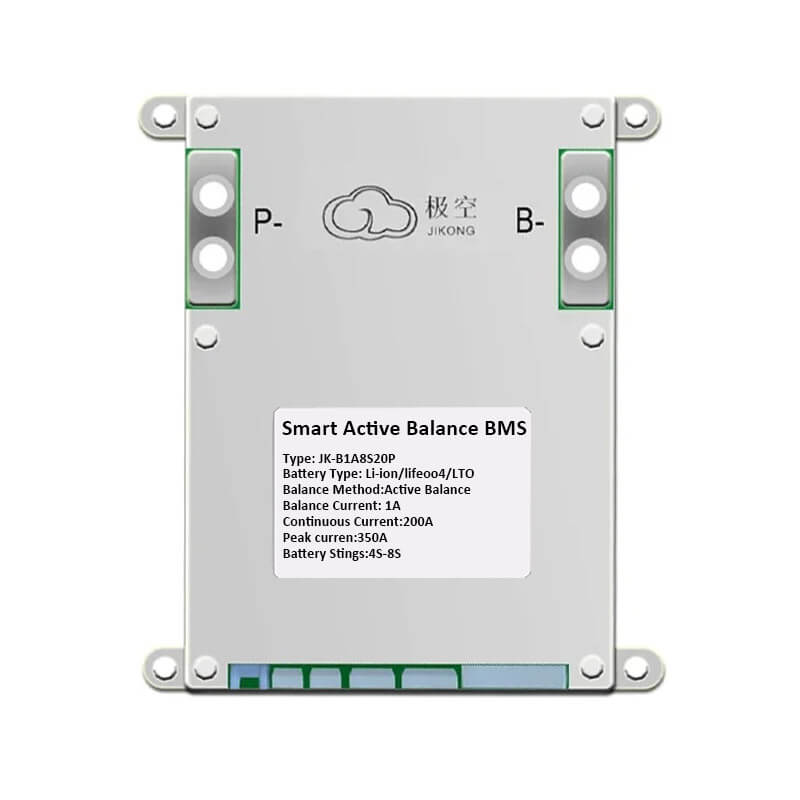

JKBMS B1A8S20P Active Balance BMS (3S–8S, 200A)
JKBMS B1A8S20P Active Balance BMS (3S–8S, 200A)
JKBMS B1A8S20P Active Balance BMS (3S–8S, 200A)

Questions? Ask an Expert

Buy with confidence. Contact our experts today.

📞 980-729-7442 💬 Live Chat ✉️ Email an Expert

JKBMS B1A8S20P Active Balance BMS (3S–8S, 200A)

$82.78
$82.78
(-0%)
Vendor: Solar Cellz USA
SKU: JKBMS-B1A8S20P-200A
Availability: In stock
Subtotal: $82.78
10 customers are viewing this product
Description

A smart battery management system designed for LiFePO₄, Li-ion, and LTO packs. Supports 3–8 cells, with 200A continuous current and 1A active balancing for longer battery life. Features Bluetooth monitoring, RS485/CAN support, and full protection against overcharge, over discharge, overcurrent, and temperature. Compact, efficient, and ideal for solar, EV, and energy storage applications.
Key Features & Benefits

  • Supports 3S to 8S configurations (for Li-ion); 4S to 8S for LiFePO₄; 6S–8S for LTO.

  • Continuous Current: 200 A, with peak discharge up to ~350 A (2 min max)

  • Active Balancing, 1 A rate (energy transfer type) for superior cell equalization, reduced capacity drift, and extended battery life

  • High accuracy voltage detection: 0–5 V single cell range, typical error < 5 mV, full range error < 10 mV

  • Multi-mode protection suite: overcharge, overdischarge, overcurrent (adjustable between 10–200 A), short circuit, overtemperature, etc.

  • Thermal & environmental resilience: operating −40 °C to +85 °C, storage −40 °C to +95 °C

  • Low power consumption: < 5 mA (without communication), standby < 2 mA

  • Smart connectivity & monitoring: built-in Bluetooth (Android/iOS app) + support for RS485 / CAN / heating / optional LCD / GPS interfaces

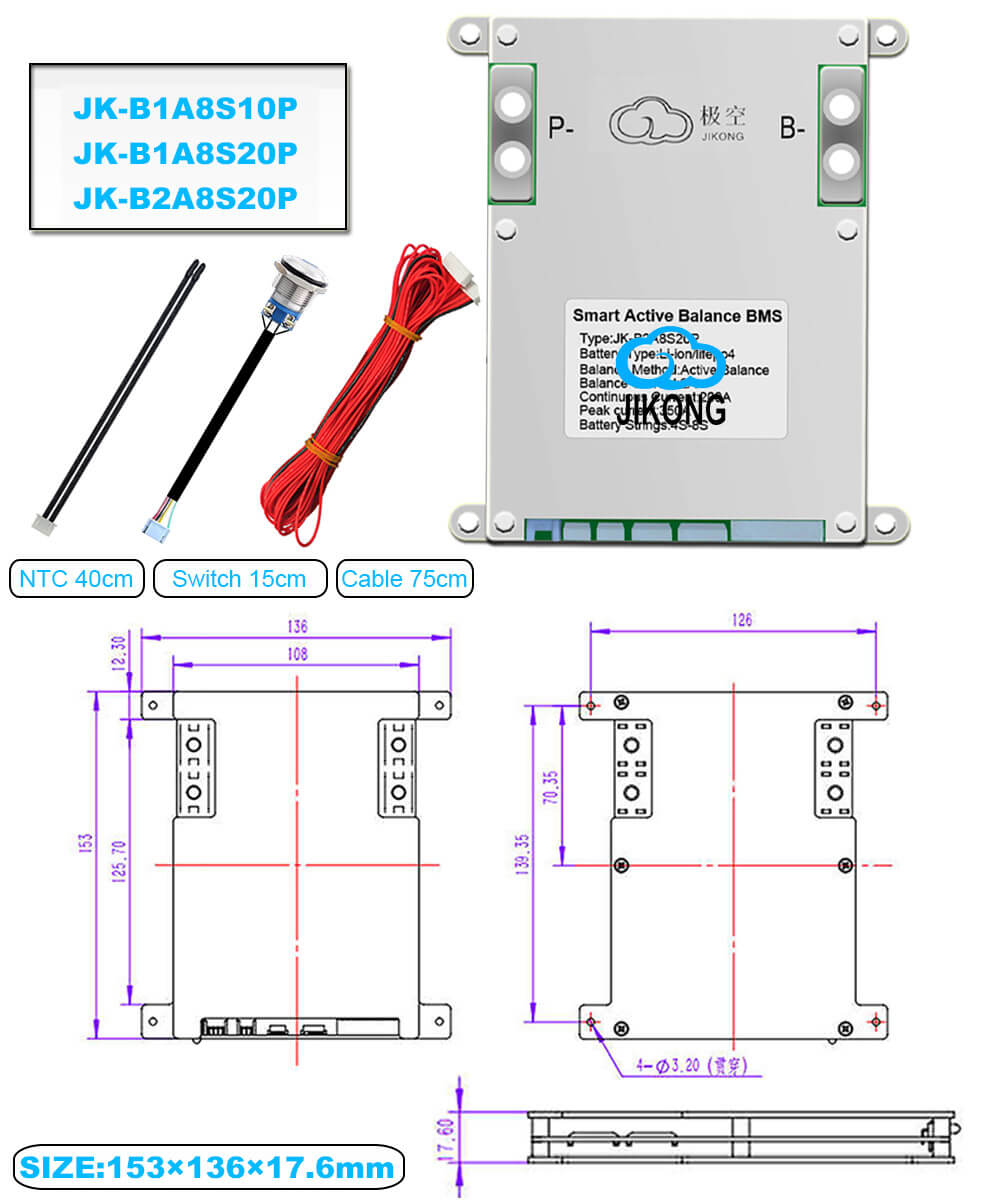

  • Compact & robust form factor: ~153 × 136 × 18 mm footprint (thickness ~17–18 mm)

  • Common port wiring (shared negative) for ease of integration

Technical Specifications (at a glance)

Parameter Value / Range
Supported Cell Count 3S–8S (Li-ion); 4S–8S (LiFePO₄); 6S–8S (LTO)
Continuous Charge / Discharge 200 A
Peak Discharge (2 min) ≈ 350 A
Balance Current 1 A
Internal Resistance (main circuit) ~0.3 mΩ
Cell Voltage Range 1.0 – 5.0 V
Voltage Accuracy ±5 mV
Operating Temperature –40 °C to +85 °C
Standby Current <2 mA
Dimensions ~153 × 136 × 18 mm
Interfaces Bluetooth built-in, RS485, (CAN/Heating optional)

Use Cases & Applications

This BMS is ideal for:

  • Solar energy storage systems / off-grid setups

  • Electric vehicles, e-bikes, scooters, golf carts

  • Uninterruptible power supplies (UPS) or backup battery systems

  • DIY battery pack projects / custom Li-ion / LiFePO₄ / LTO builds

Its active balancing and Bluetooth monitoring make it especially suitable for developers seeking tighter control over cell balance and system health.
