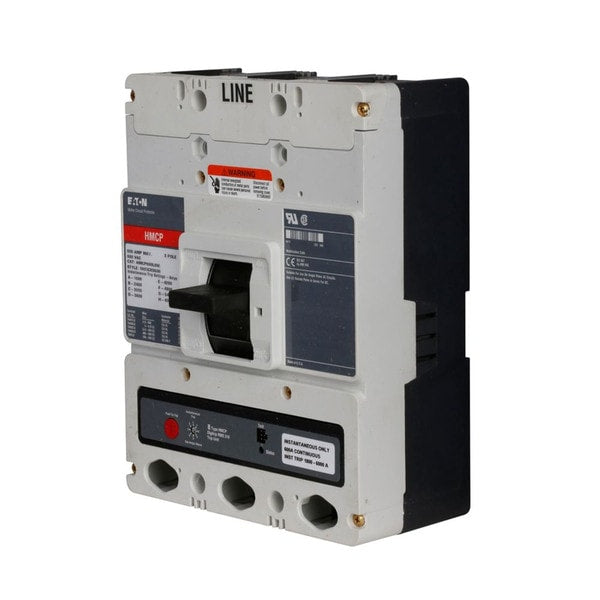

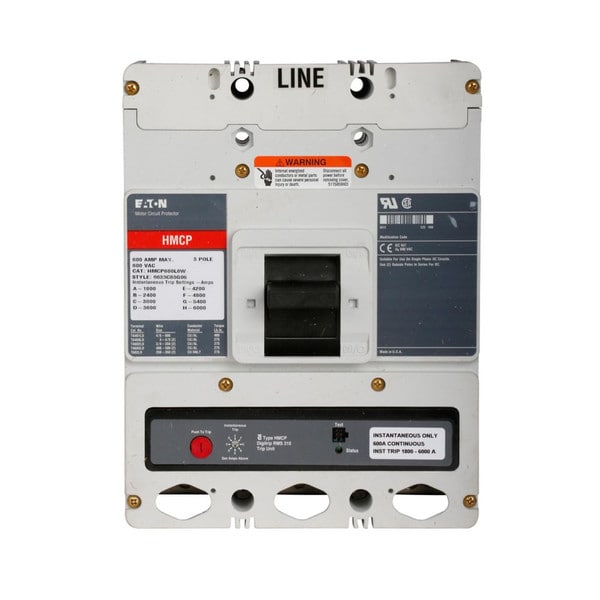

HMCP600L6W - Eaton Molded Case Circuit Breaker Accessory Motor Protection

The Eaton Molded Case Circuit Breaker Motor Protection Accessory is designed to provide high-performance protection for motor circuits in large-scale industrial and commercial applications. This motor circuit protector, rated for 600A and capable of handling motor protection in the 1800-6000A range, ensures the safe operation of motors by protecting them from overloads and short circuits. The Series C design integrates seamlessly with Frame J-K circuit breakers, and it operates in systems with voltages up to 600V AC and 250V DC. The unit is supplied without terminals, providing flexibility for customized installation.

Key Features:

• Three-pole design for reliable motor circuit protection
• Supports motor protection in the 1800-6000A range
• Rated for 600A with 600V AC and 250V DC systems
• Series C design for compatibility with Eaton’s Frame J-K breakers
• Supplied without terminals for customized installation options

This motor circuit protector is an ideal solution for ensuring the protection, reliability, and long-term performance of motors in large, high-capacity systems.

Documents:

Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers

Brochures
StrandAble terminals product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Flex shaft handle installation tutorial
