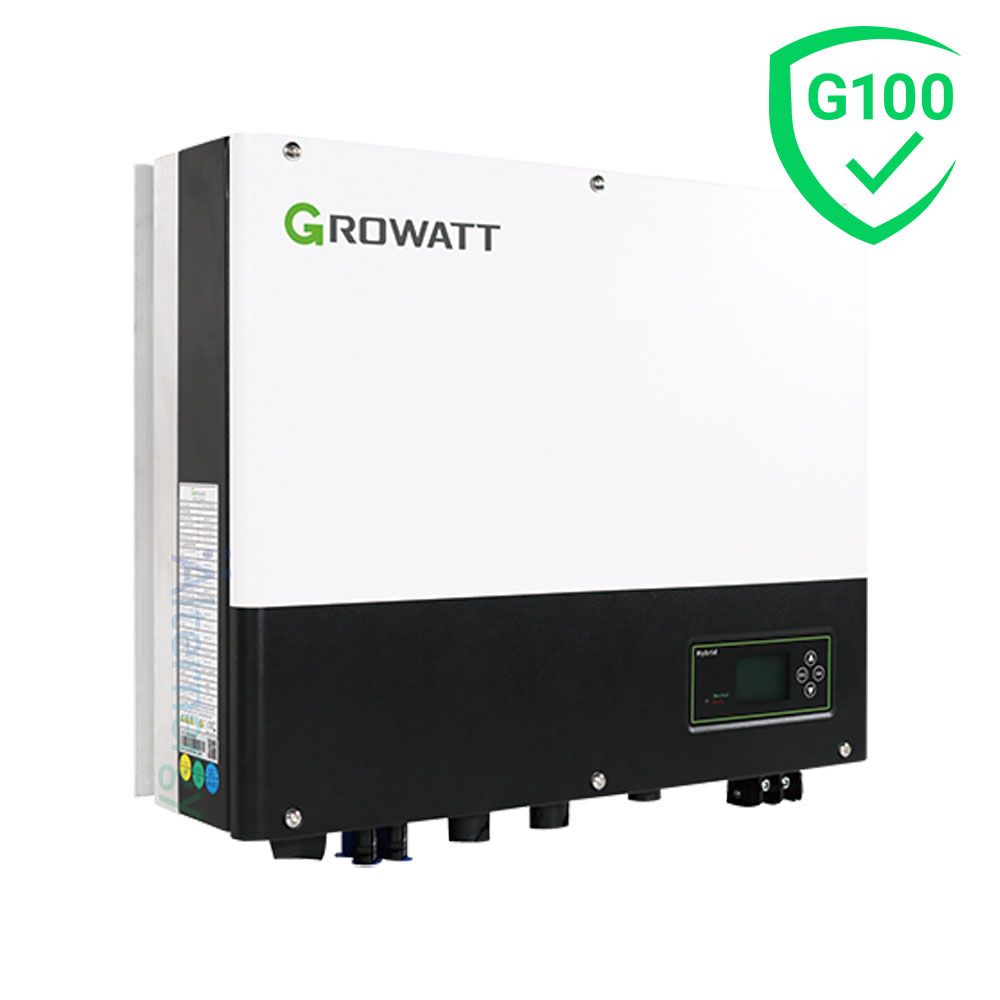

Growatt SPH5000 TL BL-UP — 5 kW Single-Phase Hybrid Inverter

Engineered for residential solar + storage systems, the Growatt SPH5000 TL BL-UP is a compact yet powerful hybrid inverter that supports PV, battery, and grid integration. It offers smart load control, UPS switching, and robust protection — making it a versatile choice for modern energy systems.

Key Features & Benefits

• True Hybrid Capability
  Simultaneously manage solar generation, battery charging/discharging, and grid interaction — no need for separate equipment.

• UPS / Quick Transfer Support
  Features fast transfer switching (~10 ms) to maintain continuity for critical loads during grid disruptions.

• Wide Compatibility

  • Supports both Lithium and Lead-Acid batteries with adjustable charging parameters.

  • Smart load control via dry contact output for prioritized load management.

• Strong PV Input & MPPT System

  • Maximum PV input voltage: ~ 550 V (Voc)

  • MPPT voltage operating range: approximately 125 V – 550 V

  • Dual MPPT trackers allow you to connect separate PV arrays for optimized performance.

• Robust Protection & Safety
  Built-in protections including overvoltage, overcurrent, short circuit, reverse polarity, anti-islanding, and more.

• Efficient & Compact Design
  Optimized for space, the inverter is suitable for rooftop installations or tight mechanical layouts.

• Flexible Operating Modes
  Offers grid-tie, off-grid, back-up, and hybrid operation — allowing you to adapt as your system evolves.

Technical Specifications (Highlights)
