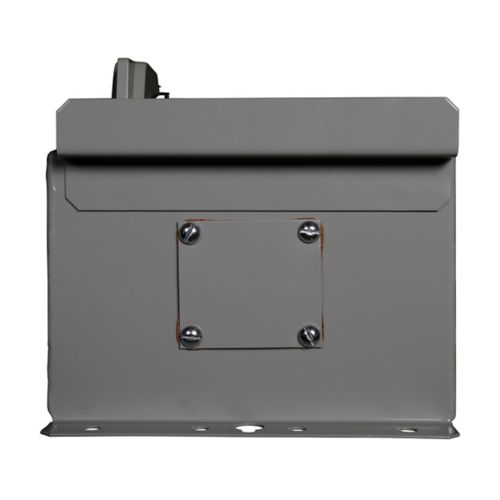

ECN5512AAE-R63/D - Eaton Industrial Pump Panel

The Eaton Industrial Pump Panel – FS Size 1 is a factory-assembled motor control solution designed for reliable operation of pump motors in demanding industrial and commercial environments. This pump panel comes equipped with a HMCP (Motor Circuit Protector) and is designed for use with 120V control voltage, providing a robust and efficient system for motor starting and protection.

Built with Eaton's trusted components, the panel includes a NEMA-rated enclosure, a magnetic starter, and integrated short-circuit and overload protection. The FS Size 1 configuration supports motor loads typically up to 7.5 HP (at 230V) or 10 HP (at 460V), making it suitable for a range of pump applications, including water treatment, irrigation, HVAC, and wastewater systems.

Key Features:

• Type: Industrial Pump Control Panel
• Motor Starter Size: FS Size 1
• Control Voltage: 120V
• Protection: Includes Eaton HMCP (Motor Circuit Protector) for short-circuit protection
• Starter Type: Full-voltage non-reversing magnetic starter
• Enclosure: NEMA-rated for indoor or outdoor use (depending on configuration)
• Application: Suitable for pumps in commercial, industrial, or municipal settings
• Motor Ratings: Supports motors up to 7.5 HP at 230V or 10 HP at 460V
• Construction: Factory-assembled and tested for quick installation and dependable performance

The Eaton FS Size 1 Pump Panel with HMCP offers a reliable, pre-engineered solution to control and protect pump motors, ensuring long-term system performance and ease of maintenance.

Documents:

Specifications and datasheets

Eaton Specification Sheet - ECN5512AAE-R63/D
